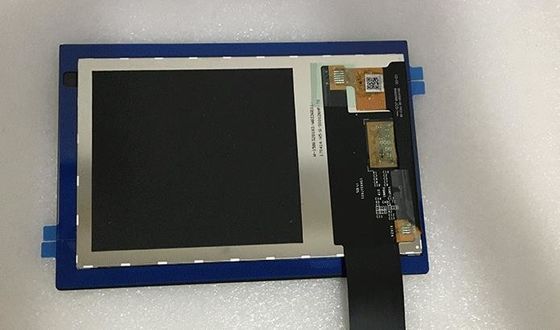

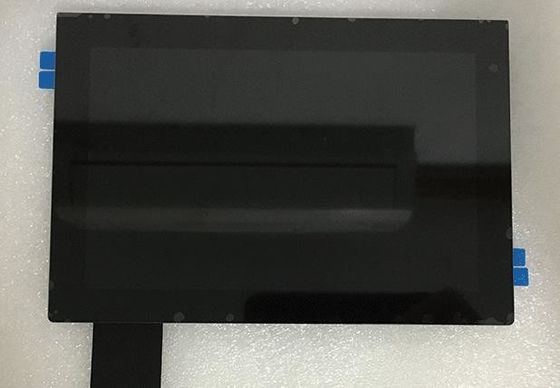

Product Details:
|
| MODEL NUMBER: | TM060JVZG01 | BRAND: | TIANMA |
|---|---|---|---|
| SIZE: | 6.0INCH | RESOLUTION: | 800(RGB)×1280, WXGA, 251PPI |
| BRIGHTNESS: | 350CD/M2 | Viewing Angle: | 85/85/85/85 (Typ.)(CR≥10) |
| TEMPERATURE RANGE: | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C ; Vibration Level: 2.0G (19.6 M/s²) | ||
| High Light: | LVDS TFT LCD Display,CCFL Sharp TFT LCD Display |
||
| Basic Detail : | Manufacturer | Model Name | TM060JVZG01 | |
|---|---|---|---|---|
| Panel Type | a-Si TFT-LCD , LCM | Another Name | - | |
| Panel Size | 6.0 inch | Designed For | ||
| Maximum Ratings : | OP Temperature | -20 ~ 70 °C | ST Temperature | -30 ~ 80 °C |
| Vibration Level | - | RoHS | ||
| Features : |
|
|||
| Remarks : | Black Cover PCAP: GG, 5points, Optical banding | |||
| Basic Information : | Luminance | 350 cd/m² (Typ.) | Contrast Ratio | 800 : 1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Good View at | Symmetry | Response Speed | - | |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) | Operating Mode | SFT, Normally Black, Transmissive | |
| Color Performance : | Chromaticity | - | Support Color |
| Pixel Features : | Number of Pixel | 800(RGB)×1280 [WXGA] | Arrangement | RGB Vertical Stripe |
|---|---|---|---|---|
| Dot Pitch(W×H) | 0.03365×0.10095 mm | Pixel Pitch(W×H) | 0.10095×0.10095 mm [251PPI] | |
| Physical Size : | Active Viewing | 80.76(W)×129.216(H) mm | Overall Dim. | 97.99(W)×156(H) mm |
| Bezel Opening | - | Overall Depth | 4.65 (Typ.) mm | |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Portrait type |
| Aspect Ratio(W:H) | 10:16 | Shape Style | ||
| Touchscreen : | TP Controller | With touch controller | TP Interface | - |
| Touch Points | 5 points | TP Technology | PCAP |
hose pixels are arranged in RGB Vertical Stripe, according to calculation of Panelook it's pixel density is 251 PPI. As for mechanical detail, it features active area of 80.76(W)×129.216(H) mm, outline size of 97.99(W)×156(H) mm. As a SFT, Normally Black, Transmissive LCM product, TM060JVZG01 can provides 350 cd/m² display brightness 800:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry ., also with performance of color gamut 70% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 30K hours, external backlight driver is additionally needed. TM060JVZG01 utilizes MIPI as it's signal inputting systerm
