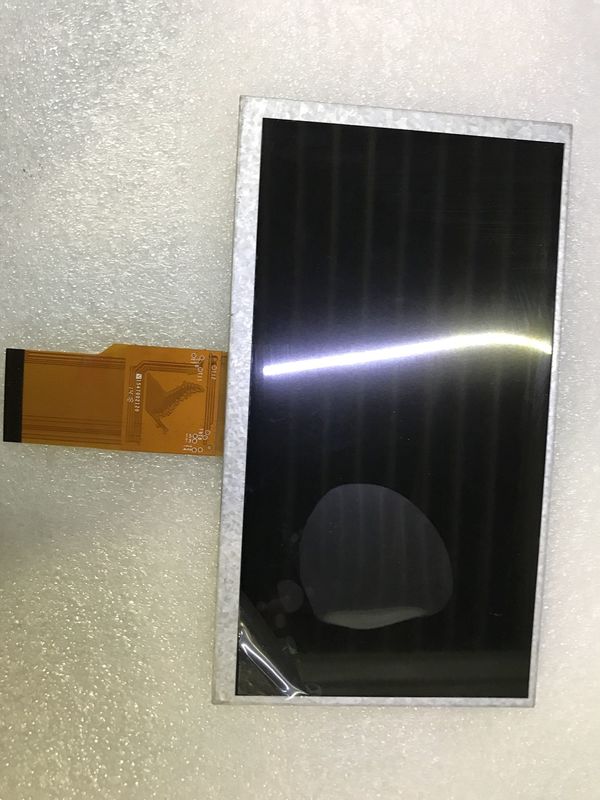

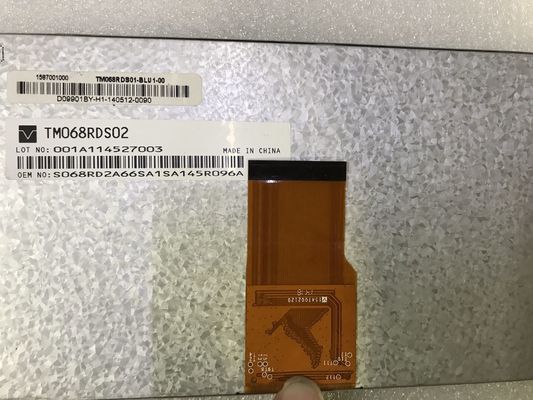

Product Details:
|
| MODEL NUMBER: | TM068RDS02 | BRAND: | AIVC |
|---|---|---|---|
| SIZE: | 6.8INCH | RESOLUTION: | 800(RGB)×480 (WVGA) 138PPI |
| BRIGHTNESS: | 400CD/M2 | Viewing Angle: | 75/75/60/70 (Typ.)(CR≥10 |
| TEMPERATURE RANGE: | Storage Temp.: -55 ~ 125 °C Operating Temp.: -40 ~ 85 °C | ||
| Highlight: | LVDS TFT LCD Display,CCFL Sharp TFT LCD Display |
||
| Basic Information : | Manufacturer | Panel Model | Panel Type | Alias |
|---|---|---|---|---|
| TM068RDS02 | a-Si TFT-LCD , LCM | - | ||
| Environment : | RoHS State | Operating Temp. | Storage Temp. | Vibration Level |
| -40 ~ 85 °C | -55 ~ 125 °C |
| Basic Information : | Luminance (cd/m²) | Viewing Angle (L/R/U/D) | Response Time (ms) |
|---|---|---|---|
| 400 (Typ.) | 75/75/60/70 (Typ.)(CR≥10) | 20 (Typ.)(Tr+Td) | |
| Best View on | Display Mode | Contrast Ratio | |
| 12 o'clock | TN, Normally White, Transmissive | 500 : 1 (Typ.) (Transmissive) | |
| Dispaly Color : | Color Temperature | Display Colors | White Coordinate |
| 6645K | 16.7M (8-bit) | X:0.309; Y:0.335 | |
| 1931 Color Gamut : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 49% | 69% | 51% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 51% | 37% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| White Variation : | 1.25/1.33 (Typ./Max.)(9 points | ||
| Panel Size : | 6.8" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Format | Pixel Configuration | Pixel Pitch (mm) | Dot Pitch (mm) |
| 800(RGB)×480 [WVGA] | RGB Vertical Stripe | 0.18975×0.1660 [138PPI] | 0.06325×0.1660 | |
| Mechanical Size : | Active Area (mm) | Bezel Area (mm) | Outline Dimension (mm) | Outline Depth (mm) |
| 151.8(H) × 79.68(V) | 152.8(H) × 82.68(V) | 163(H) × 91(V) | 4.9/5.2 (Typ./Max.) mm | |
| Outline Features : | Form Factor | Orientation | Aspect Ratio | Shape Style |
| Flat Rectangle | Landscape type | 17:9 (H:V) | ||
| Other Detail : | Weight | Panel Cover | Treatment | |
| 131g | - | Antiglare | ||
| Reverse Scan : | Yes (U/D, L/R) |
|---|---|
| Vertical Frequency : | 60Hz |
| Time Controller (T-CON) : | Embedded T-CON |
| Lamp Features: | Type | Position | Quantity | Shape | Life(Hours) | Lamp Exchange |
|---|---|---|---|---|---|---|
| WLED | Edge light type | 3S7P | Array | 10K(Min.) | - | |
| WLED Electrical : | Voltage Supply | Current Supply | Power | |||
| 9.6V (Typ.) | 140/200mA (Typ./Max.) | 1.34/1.92W (Typ./Max.) | ||||
| Interface Features : | Position | Backlight Driver | Type | |||
| - | No | |||||
| Panel Driving Electrical : | Voltage Supply | Current Supply | Power | |||
|---|---|---|---|---|---|---|
| 3.3/10.5/20.0/-7.0V (Typ.)(VCC/AVDD/VGH/VGL) | - | - | ||||
| Voltage for Display Signals : | 0≤VIL≤0.3VCC; 0.7VCC≤VIH≤VCC | |||||
| Interface Features : | Position | Signal | Type | |||
| - | TTL (1 ch, 8-bit) | FPC | ||||

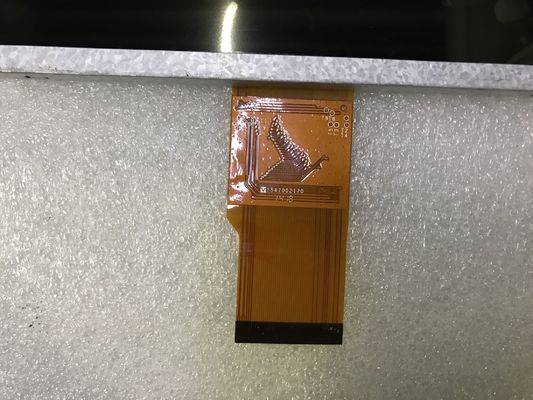

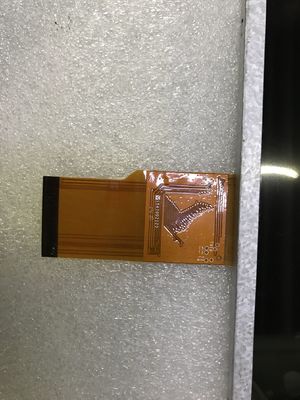

| FPC Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
| 0.5 mm | 50 pins | 1 pcs | ||||
with aspect ratio of 17:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 151.8(W)×79.68(H) mm, outline size of 163(W)×91(H)×5.2(D) mm, viewing area size of 152.8(W)×82.68(H) mm, with surface treament of Antiglare, net weight of 131g. As a TN, Normally White, Transmissive LCM product, TM068RDS02 can provides 400 cd/m² display brightness 500:1 transimissive contrast ratio, 75/75/60/70 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 12 o'clock , and response time of 20 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 49% (NTSC). This product adopted 3S7P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 10K hours, external backlight driver is additionally needed. TM068RDS02 utilizes TTL (1 ch, 8-bit) as it's signal inputting systerm, which connected by 50 pins FPC with power supply voltage of 3.3/10.5/20.0/-7.0V (Typ.)(VCC/AVDD/VGH/VGL)
