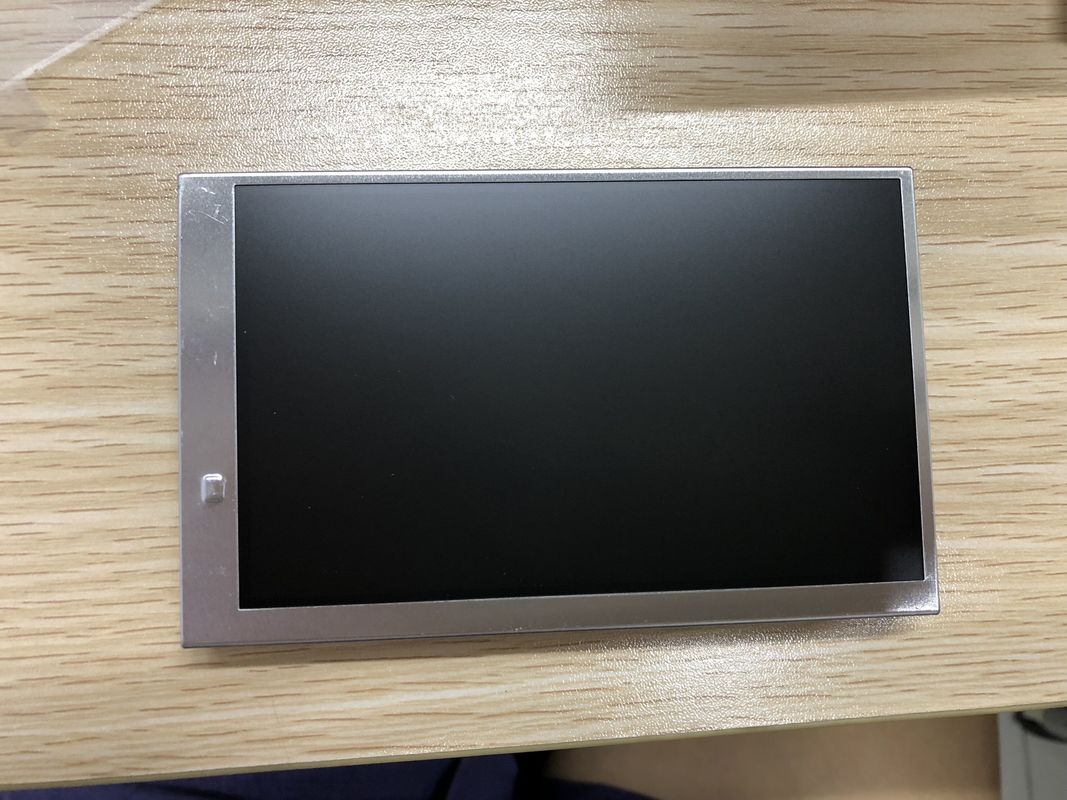

Product Details:
|
| MODEL NUMBER: | TM050LDZ00 | BRAND: | TIANMA |
|---|---|---|---|
| SIZE: | 5.0 Inch | RESOLUTION: | 240(RGB)×400 [WQVGA] 93PPI |
| BRIGHTNESS: | 400 Cd/m² (Typ.) | Viewing Angle: | 70/70/50/70 (Typ.)(CR≥10 |
| TEMPERATURE RANGEOperating Temperature: -35 ~ 80 °C ; Storage Temperature: -40 ~ 90 °C: | Operating Temperature: -35 ~ 80 °C ; Storage Temperature: -40 ~ 90 °C | ||
| Highlight: | LVDS TFT LCD Display,CCFL Sharp TFT LCD Display |
||
| Basic Information : | Brand Name | Model Name | Type | Model Alias |
|---|---|---|---|---|
| TM050LDZ00 | a-Si TFT-LCD , LCM | - | ||
| Maximum Ratings : | RoHS | Operating Temperature | Storage Temperature | Vibration Level |
| -35 ~ 80 °C | -40 ~ 90 °C | - | ||
| Application : | ||||
| Typical Features : |
|
|||
| Screen Size : | 5.0" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Number | Pixel Format | Dot Pitch (H×V) | Pixel Pitch (H×V) |
| 240(RGB)×400, WQVGA | RGB Vertical Stripe | 0.0905×0.2715 mm | 0.2715×0.2715 mm [93PPI] | |
| Mechanical Size : | Display Area (H×V) | Bezel Opening (H×V) | Overall Dimension (H×V) | Overall Depth |
| 65.16×108.6 mm | - | 76.3×123.4 mm | 6.72/12.9 (Typ./Max.) mm | |
| Outline Features : | Form Shape | Aspect Ratio (H:V) | Orientation | Shape Style |
| Flat Rectangle | 3:5 | Portrait type | ||
| Other Spec : | Mass | Panel Cover | Surface Treatment | |
| - | - | Antiglare | ||

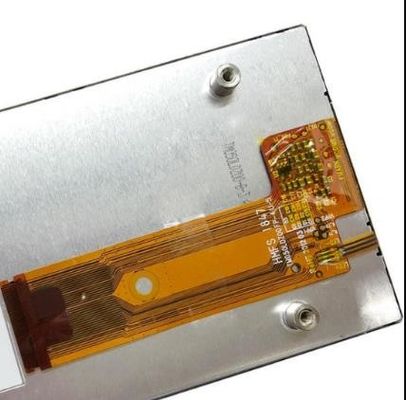

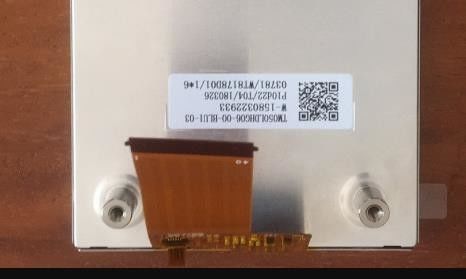

| Holes & Brackets : | Rear mounting holes (4-M3) on pole | |||
| Basic Information : | Luminance | Work Mode | Contrast Ratio |
|---|---|---|---|
| 400 cd/m² (Min.) | TN, Normally White, Transmissive | 200:1 (Min.) (Transmissive) | |
| Good View at | Viewing Angle | Response Time | |
| 6 o'clock | 70/70/50/70 (Typ.)(CR≥10) | 40 (Max.)(Tr+Td) (ms) | |
| Dispaly Color : | Color Temperature: | Support Color | Color Coordinate |
| 6340K | 262K (6-bit) | X:0.314; Y:0.342 | |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 71% | 92% | 71% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 73% | 53% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Reverse Scan : | No |
|---|---|
| Driver IC List: | Built-in R61509AC |
| Back-light Features: | Type | Position | Life(Hours) | Amount | Shape | Replacement |
|---|---|---|---|---|---|---|
| WLED | Edge light type | - | 1S10P | Parallel | - | |
| Interface Features : | WLED Driver State | Physical Type | Interface Position | |||
| No | Included in panel signal interface | |||||
| Signal Electrical : | Input Voltage | Input Current | Power Consumption | |||
|---|---|---|---|---|---|---|
| 3.3V (Typ.) | 50mA (Max.) | 0.17W (Max.) | ||||
| Interface Features : | Signal Type | Physical Type | Interface Position | |||
| Parallel RGB (1 ch, 6/8-bit) + SPI | FPC | - | ||||
| Interface Detail : | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
| 1 pcs | 40 pins | 0.5 mm | ||||
