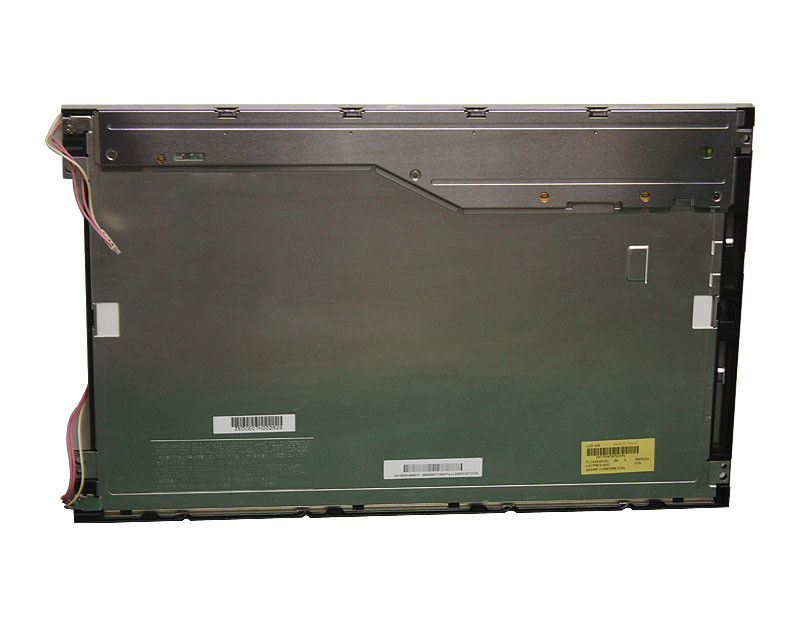

Product Details:
|
| Model: | LQ170K1LW02 | Pixel Format: | 1280(RGB)×768 [WXGA] 87PPI |
|---|---|---|---|
| Diagonal Size: | 17" | Luminance: | 300cd/m² |
| Viewing Angle: | 85/85/85/85 (Typ.)(CR≥10) | Interface Type: | LVDS (1 Ch, 8-bit) 20 Pins Connector |
| Light Source: | CCFL [4 Pcs] , 25K Hours , W/O Driver | Environment: | Operating Temperature: 0 ~ 70 °C ; Storage Temperature: -20 ~ 70 °C ; Vibration Level: 2.0G (19.6 M/s²) |
| Highlight: | LVDS TFT LCD Display,CCFL Sharp TFT LCD Display |
||
LQ170 Series LQ170K1LW02 LQ170E1LW22 LQ170E1LG21
| Basic Information : | Luminance | 300 cd/m² (Typ.) | Contrast Ratio | 600 : 1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Good View at | Symmetry | Response Speed | 20 (Typ.)(Tr+Td) (ms) | |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) | Operating Mode | P-MVA, Normally Black, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Support Color | 16.2M (6-bit + FRC) |
| Color Temperature | 6485K | White Uniformity | 1.40 (Max.)(9 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 69% | sRGB | 90% coverage |
| Adobe RGB | 71% coverage | DCI-P3 | 71% coverage | |
| Rec.2020 | 51% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Pixel Features : | Number of Pixel | 1280(RGB)×768 [WXGA] | Arrangement | RGB Vertical Stripe |
|---|---|---|---|---|
| Dot Pitch(W×H) | 0.09625×0.28875 mm | Pixel Pitch(W×H) | 0.28875×0.28875 mm [87PPI] | |
| Physical Size : | Active Viewing | 369.6(W)×221.76(H) mm | Overall Dim. | 413.8(W)×259(H) mm |
| Bezel Opening | 374.6(W)×226.8(H) mm | Overall Depth | 11.8/16.0 (Typ./Max.) mm | |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio(W:H) | 15:9 | Shape Style | ||
| Fixation : | Face mounting holes (2-Φ4.5, 2-Φ4.5×6.0, 1-Φ3.0, 1-Φ3.0×4.5) on left, right bezel | |||
| Other Detail : | Mass | 1.75Kgs (Max.) | Surface | Antiglare, Hard coating (3H) |
| Signal Electrical : | Input Current | 485/750mA (Typ./Max.) | Input Voltage | 5.0V (Typ.) | ||
|---|---|---|---|---|---|---|
| Consumption | - | Signal Interface | LVDS (1 ch, 8-bit) | |||
| Interface Features : | Position | - | Physical Type | Connector | ||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| HRS | DF14H-20P-1.25H(56) | 1 pcs | 1.25 mm | 20 pins | LVDS-20P1C8B-020C | |
| Lamp Features: | Lamp Shape | Straight | Lamp Type | CCFL | Position | Edge light type (Top and Bottom) |
|---|---|---|---|---|---|---|
| Exchange | Replaceable (FLCL-39) | Amount | 4 pcs | Life | 25K(Min.) (Hours) | |
| Lamp Electrical : | Input Current | 5.5/6.0/11.0mA (Min./Typ./Max.) | Input Voltage | 750V (Typ.) | ||
| Frequency | 50±10KHz | Turn-on Voltage | 1400V (Max.)(Ta=0℃) | |||
| Consumption | 20.0W (Typ.) | |||||
| Interface Features : | Position | - | Physical Type | Connector | ||
| Interface Detail : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| JST | BHR-04VS-1 | 2 pcs | 4.0 mm | 4 pins | BLL-4PINS-HHNL | |
| Backlight Driver : | No | |||||
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
