17.3" LCM 3840×2160RGB  350cd/m² LQ173D1JW33 Sharp TFT LCD Display

17.3" LCM 3840×2160RGB  350cd/m² LQ173D1JW33 Sharp TFT LCD Display
17.3" LCM 3840×2160RGB  350cd/m² LQ173D1JW33 Sharp TFT LCD Display 17.3" LCM 3840×2160RGB  350cd/m² LQ173D1JW33 Sharp TFT LCD Display 17.3" LCM 3840×2160RGB  350cd/m² LQ173D1JW33 Sharp TFT LCD Display

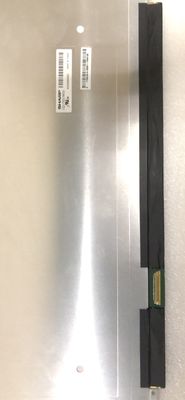

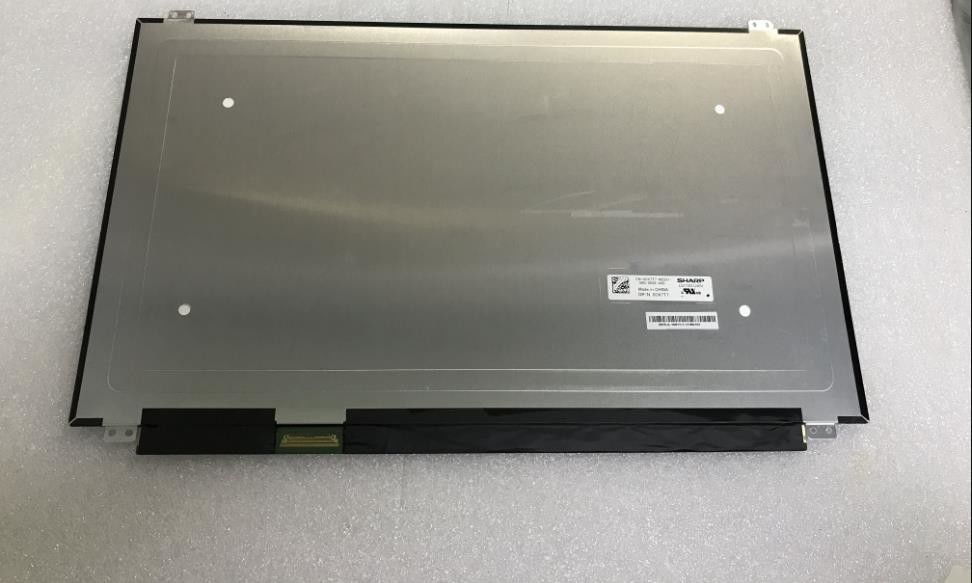

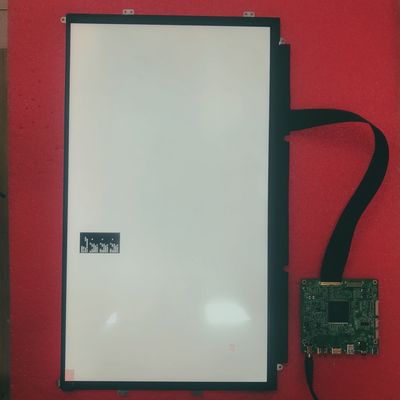

Large Image :  17.3" LCM 3840×2160RGB  350cd/m² LQ173D1JW33 Sharp TFT LCD Display

Product Details:
Place of Origin: JAPAN
Brand Name: SHARP
Certification: ISO9001
Model Number: LQ173D1JW33
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: 15 pcs / box 12.8 Kgs 515×372×202 mm (L×W×H)
Delivery Time: 1-2 DAYS
Payment Terms: TT/PAYPAL/WESTERN UNION/ESCROW
Supply Ability: 600PCS
Contact Now

17.3" LCM 3840×2160RGB  350cd/m² LQ173D1JW33 Sharp TFT LCD Display

Description
Panel Model: LQ173D1JW33 Resolution: 3840(RGB)×2160, UHD, 255PPI
Panel Size: 17.3" Brightness: 350 Cd/m² (Typ.)
Lamp Type: WLED , 12K Hours , With LED Driver Viewing Angle: 89/89/89/89 (Typ.)(CR≥10) Left / Right / Up / Down
Signal Interface: EDP (4 Lanes) , 40 Pins Connector Environment: Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C
Highlight:

LVDS TFT LCD Display

,

CCFL Sharp TFT LCD Display

LQ173 Series LQ173D1JW33 LQ17



Sharp LQ173D1JW33 Mechanical Details

Pixel Features :
Resolution
3840(RGB)×2160, UHD
Dot Pitch(mm)
0.0333×0.0995 (H×V)
Pixel Format
RGB Vertical Stripe
Pixel Pitch(mm)
0.0995×0.0995 (H×V) [255PPI]
Mechanical Size :
Active Area(mm)
382.12(H) × 214.94(V)
Bezel Area(mm)
-
Outline Dim.(mm)
393.69(H) × 252.1(V)
Depth(mm)
3.57/4.0 (Typ./Max.)
Outline Features :
Form Style
Flat Rectangle
Shape Style
Flat (PCBA Flat, T3.4~4.0mm)
Aspect Ratio
16:9 (H:V)
Orientation
Landscape type
Mounting :
Face mounting holes (8 pcs) on up, down slugs
Other Spec :
Weight
610g (Max.)
Treatment
Antiglare (Haze 45%), Hard coating (3H)





Sharp LQ173D1JW33 Optical Details

Basic Information :
Luminance(cd/m²)
350 (Typ.)
Contrast Ratio
1000:1 (Typ.) (Transmissive)
Viewing Angle
89/89/89/89 (Typ.)(CR≥10)
Display Mode
IPS, Normally Black, Transmissive
Best View on
Symmetry
Response(ms)
30 (Typ.)(Tr+Td)
Color Performance :
White Coordinate
Wx:0.313; Wy:0.329
Display Colors
16.7M (8-bit)
Color Temperature
6485K
White Uniformity
1.25/1.60 (Max.)(9/13 points)
1931 Color Gamlt :
NTSC Ratio
96%
sRGB
100% coverage
Adobe RGB
100% coverage
DCI-P3
88% coverage
Rec.2020
71% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)





Sharp LQ173D1JW33 Interface Detail

Signal Electrical :
Voltage Supply
3.3V (Typ.)
Current Supply
739/1261mA (Typ./Max.)
Consumption
2.44/4.54W (Typ./Max.)
Signal Type :
eDP (4 Lanes)
Logic Voltage
-
Interface Features :
Position

ConnectorType
Interface Detail :
Brand
Model
Pitch
Pins
Quantity
Pin Configuration
I-PEX
20455-040E-76
0.5 mm
40 pins
1 pcs






Sharp LQ173D1JW33 Backlight Details

Backlight Features :
Type
WLED
Quantity
-
Position
Edge light type
Replacement
-
Shape
-
Life Time
12K(Min.) (Hours)
Interface Features :
Position
-
Type
Included in panel signal interface
Backlight Driver :
With LED Driver
Driver Electrical :
Voltage Supply
12.0V (Typ.)
Current Supply
625/659mA (Typ./Max.)
Consumption
7.5/7.9W (Typ./Max.)



FAQ:

Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.

Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.

Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.

Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
