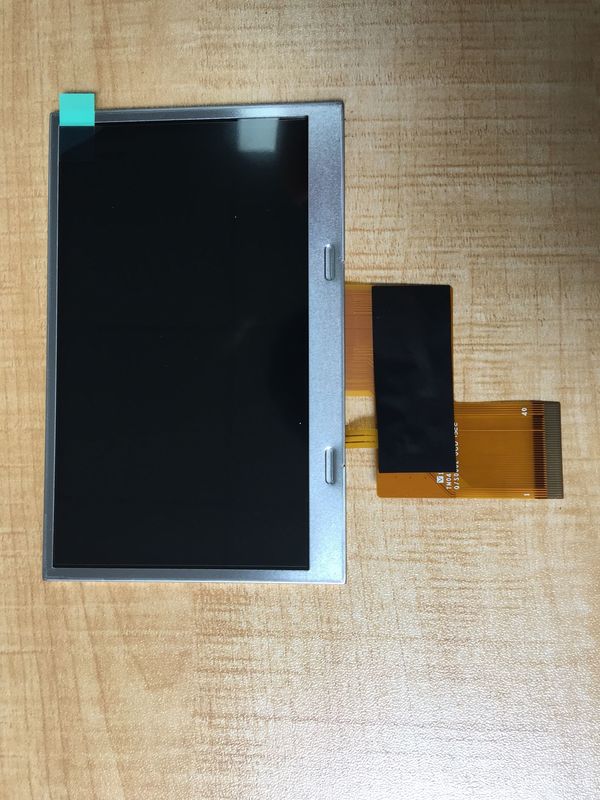

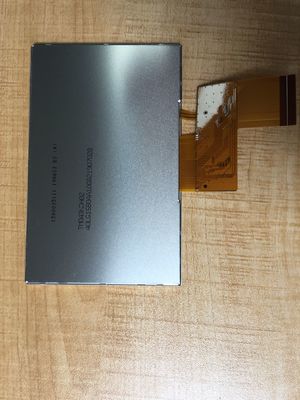

Product Details:
|
| MODEL NUMBER: | TM043YVHG30 | BRAND: | TIANMA |
|---|---|---|---|
| SIZE: | 4.3 Inch | RESOLUTION: | 480(RGB)×800 [WVGA] 217PPI |
| BRIGHTNESS: | 280 Cd/m² (Typ.) | Viewing Angle: | 80/80/80/80 (Typ.)(CR≥10) |
| TEMPERATURE RANGE: | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C | ||
| Highlight: | LVDS TFT LCD Display,CCFL Sharp TFT LCD Display |
||
| Basic Information : | Brand Name | Model Name | Type | Model Alias |
|---|---|---|---|---|
| TM043YVHG30 | a-Si TFT-LCD , LCM | - | ||
| Maximum Ratings : | RoHS | Operating Temperature | Storage Temperature | Vibration Level |
| -20 ~ 70 °C | -30 ~ 80 °C | - | ||
| Application : |
|
|||
| Basic Information : | Luminance | Work Mode | Contrast Ratio |
|---|---|---|---|
| 280 cd/m² (Typ.) | Normally Black, Transmissive | 800:1 (Typ.) (Transmissive) | |
| Good View at | Viewing Angle | Response Time | |
| Symmetry | 80/80/80/80 (Typ.)(CR≥10) | 35 (Typ.)(Tr+Td) (ms) | |
| Dispaly Color : | Color Temperature: | Support Color | Color Coordinate |
| 7092K | 16.7M (8-bit) | X:0.303; Y:0.325 | |
| 1931 Color Gamut : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 66% | 89% | 67% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 68% | 49% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| White Uniformity : | 1.25/1.33 (Typ./Max.)(9 points) | ||
| Screen Size : | 4.3" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Number | Pixel Format | Dot Pitch (H×V) | Pixel Pitch (H×V) |
| 480(RGB)×800, WVGA | RGB Vertical Stripe | 0.039×0.117 mm | 0.117×0.117 mm [217PPI] | |
| Mechanical Size : | Display Area (H×V) | Bezel Opening (H×V) | Overall Dimension (H×V) | Overall Depth |
| 56.16×93.6 mm | - | 68×115 mm | 3.5 (Typ.) mm | |
| Outline Features : | Form Shape | Aspect Ratio (H:V) | Orientation | Shape Style |
| Flat Rectangle | 3:5 | Portrait type | ||
| Touch Panel : | Touch Points | Controller & Signal type | Supported OS System | Technology |
| - | With controller, I²C | - | PCAP | |
| Other Spec : | Mass | Panel Cover | Surface Treatment | |
| TBD | With Cover Lens | Clear | ||
| Refresh Rate : | 60Hz |
|---|---|
| Reverse Scan : | No |
| Driver IC List: | Built-in ILI9806C |
| Time Controller (T-CON) : | Embedded T-CON |
| Back-light Features: | Type | Position | Life(Hours) | Amount | Shape | Replacement |
|---|---|---|---|---|---|---|
| WLED | Edge light type | - | 8S1P | 1 string | - | |
| WLED Electrical : | Input Voltage | Input Current | Power Consumption | |||
| 25.6V (Typ.) | 20.0mA (Typ.) | 512mW (Typ.) | ||||
| Interface Features : | WLED Driver State | Physical Type | Interface Position | |||
| No | Included in signal interface | |||||
| Signal Electrical : | Input Voltage | Input Current | Power Consumption | |||
|---|---|---|---|---|---|---|
| (1.8/2.8)/2.8V (Typ.)(IOVCC/VCC) | - | 99/150mW (Typ./Max.) | ||||
| Voltage for Display Signals : | -0.3V≤VIL≤0.3IOVCC; 0.7IOVCC≤VIH≤IOVCC | |||||
| Interface Features : | Signal Type | Physical Type | Interface Position | |||
| Parallel RGB (1 ch, 8-bit) + SPI | FPC | - | ||||
| Interface Detail : | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
| 1 pcs | 30 pins | 0.3 mm | ||||
with surface treament of Clear, net weight of TBD. As a Normally Black, Transmissive LCM product, TM043YVHG30 can provides 280 cd/m² display brightness 800:1 transimissive contrast ratio, 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 35 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 65% (NTSC). This product adopted 8S1P WLED as it's backlight systerm which was placed as Edge light type, external backlight driver is additionally needed. TM043YVHG30 utilizes Parallel RGB (1 ch, 8-bit) + SPI as it's signal inputting systerm, which connected by 30 pins FPC with power supply voltage of (1.8/2.8)/2.8V (Typ.)(IOVCC/VCC).
