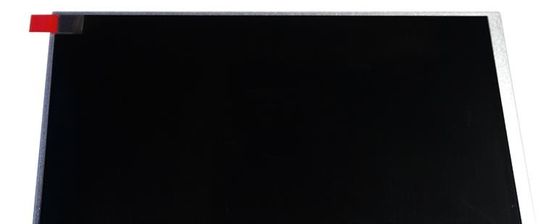

7.0" 800×480RGB 400nits Tianma LCD Panel TM070RDH01

Large Image : 7.0" 800×480RGB 400nits Tianma LCD Panel TM070RDH01

Product Details:

Place of Origin:	JAPAN
Brand Name:	TIANMA
Certification:	ISO9001
Model Number:	TM070RDH01

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Packaging Details:	STANDARD PACKING
Delivery Time:	1-2 DAYS
Payment Terms:	TT/PAYPAL/ESCROW/WESTERN UNION
Supply Ability:	300PCS

Contact Now

7.0" 800×480RGB 400nits Tianma LCD Panel TM070RDH01

Description

MODEL NUMBER:	TM070RDH01	BRAND:	TIANMA
SIZE:	7.0INCH	RESOLUTION:	800(RGB)×480 (WVGA) 133PPI
BRIGHTNESS:	400 Cd/m² (Typ.)	Viewing Angle70/70/60/70 (Typ.)(CR≥10):	70/70/60/70 (Typ.)(CR≥10)
TEMPERATURE RANGE:	Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C
High Light:	800×480RGB Tianma LCD Panel , 400nits Tianma LCD Panel , Tianma TM070RDH01

TIANMA TM070RDH01 Application Details

Basic Information :	Brand Model TM070RDH01 1 Compatible Type a-Si TFT-LCD , LCM Used For Screen Size 7.0 inch Alias TS070RAATD01-00
Environment :	Storage Temp. -30 ~ 80 °C Operating Temp. -20 ~ 70 °C RoHS Vibration -
Typical Features :

TIANMA TM070RDH01 Mechanical Details

Pixel Features :	Resolution 800(RGB)×480, WVGA Dot Pitch(mm) 0.0655×0.1715 (H×V) Pixel Format RGB Vertical Stripe Pixel Pitch(mm) 0.1965×0.1715 (H×V) [133PPI]
Mechanical Size :	Active Area(mm) 157.2(H) × 82.32(V) Bezel Area(mm) 160.2(H) × 85.32(V) Outline Dim.(mm) 167(H) × 93(V) Depth(mm) 5.4/6.1 (Typ./Max.)
Outline Features :	Form Style Flat Rectangle Shape Style Aspect Ratio 17:9 (H:V) Orientation Landscape type
Mounting :	Without
Other Spec :	Weight 138g (Typ.) Treatment Antiglare

TIANMA TM070RDH01 Optical Details

Basic Information :	Luminance(cd/m²) 400 (Typ.) Contrast Ratio 400:1 (Typ.) (Transmissive) Viewing Angle 70/70/60/70 (Typ.)(CR≥10) Display Mode TN, Normally White, Transmissive Best View on 12 o'clock Response(ms) 25 (Typ.)(Tr+Td)
Color Performance :	White Coordinate Wx:0.315; Wy:0.334 Display Colors 262K (6-bit) Color Temperature 6343K White Uniformity 1.25/1.33 (Typ./Max.)(9 points)
1931 Color Gamlt :	NTSC Ratio 50% sRGB 70% coverage Adobe RGB 52% coverage DCI-P3 52% coverage Rec.2020 37% coverage Remarks sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

TIANMA TM070RDH01 Electronics Details

Frame Rate :	60Hz Reverse Scan :	Yes (U/D, L/R)
Total Consumption:	2.22W (Typ.)
Time Controller (T-CON) :	Need external T-CON

TIANMA TM070RDH01 Interface Detail

Signal Electrical :	Voltage Supply 3.3/3.3/9.84/19.0/-7.0V (Typ.)(VCC/VDD1/VDD2/VGG/VEE) Current Supply 3.5/3.5/28/0.22/0.22mA (Typ.)(ICC/IDD1/IDD2/IGG/IEE) Consumption 0.30/0.42W (Typ./Max.)
Signal Type :	TTL (1 ch, 6-bit) Logic Voltage 0≤VIL≤0.2VDD1; 0.8VDD1≤VIH≤VDD1
Interface Features :	Position - Type FPC
Interface Detail :	Brand Model Pitch Pins Quantity Pin Configuration 0.5 mm 30 pins 2 pcs

TIANMA TM070RDH01 Backlight Details

Backlight Features :	Type WLED Quantity 3S10P Position Edge light type Replacement - Shape Array Life Time 20K(Typ.) (Hours)
Lamp Electrical :	Voltage Supply 9.6/10.2V (Typ./Max.) Current Supply 200/250mA (Typ./Max.) Consumption 1.92/2.55W (Typ./Max.)
Interface Features :	Position - Type Connector
Interface Detail :	Brand Model Pitch Pins Quantity Pin Configuration JST BHSR-02VS-1 3.5 mm 2 pins 1 pcs BLE-2PINS-AC
Backlight Driver :	No

TIANMA TM070RDH01 Packing Details

Package Box :	Quantity	Weight	Box Size
Package Box :	50 pcs / box	10.579 Kgs	530×350×250 mm (L×W×H)

FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
