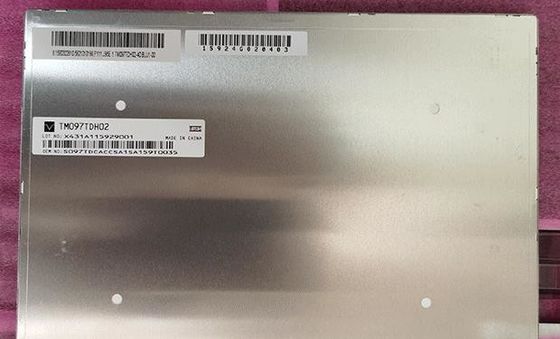

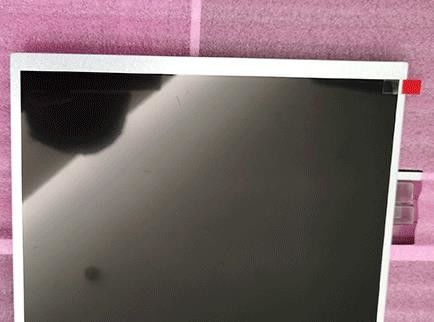

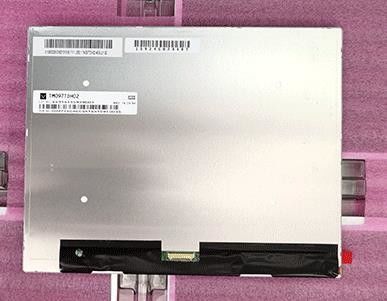

1024×768 RGB 350nits Tianma LCD Panel AVIC 9.7" TM097TDH02-40

1024×768 RGB 350nits Tianma LCD Panel AVIC 9.7" TM097TDH02-40
1024×768 RGB 350nits Tianma LCD Panel AVIC 9.7" TM097TDH02-40 1024×768 RGB 350nits Tianma LCD Panel AVIC 9.7" TM097TDH02-40 1024×768 RGB 350nits Tianma LCD Panel AVIC 9.7" TM097TDH02-40

Large Image :  1024×768 RGB 350nits Tianma LCD Panel AVIC 9.7" TM097TDH02-40

Product Details:
Place of Origin: JAPAN
Brand Name: AVIC
Certification: ISO9001
Model Number: TM097TDH02-40
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: STANDARD PACKING
Delivery Time: 1-2 DAYS
Payment Terms: TT/PAYPAL/ESCROW/WESTERN UNION
Supply Ability: 300PCS
Contact Now

1024×768 RGB 350nits Tianma LCD Panel AVIC 9.7" TM097TDH02-40

Description
MODEL NUMBER: TM097TDH02-40 BRAND: AVIC
SIZE: 9.7"inch RESOLUTION: 1024(RGB)×768 (XGA) 132PPI
BRIGHTNESS: 350CD/M2 Viewing Angle: 70/60/70/70 (Typ.)(CR≥10)
TEMPERATURE RANGE: Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C ; Vibration Level: 2.0G (19.6 M/s²)
High Light:

1024×768 RGB Tianma LCD Panel

,

350nits Tianma LCD Panel

,

AVIC 9.7" Tianma LCD Display

AVIC TM097TDH02-40 Application Details

Basic Info :
Panel Brand
1024×768 RGB 350nits Tianma LCD Panel AVIC 9.7" TM097TDH02-40 0
Panel Model
TM097TDH02-40
Diagonal Size
9.7"
Application
  • 1024×768 RGB 350nits Tianma LCD Panel AVIC 9.7" TM097TDH02-40 1
Panel Type
a-Si TFT-LCD , LCM
Model Alias
-
Reliability :
Operating Temp.
-20 ~ 70 °C
Storage Temp.
-30 ~ 80 °C
RoHS State
1024×768 RGB 350nits Tianma LCD Panel AVIC 9.7" TM097TDH02-40 2
Vibration Rating
-
Specific Features :
  • WLED Backlight
  • U/D,L/R Reverse











































AVIC TM097TDH02-40 Mechanical Details

Pixel Features :
Pixel Format
1024(RGB)×768, XGA
Dot Pitch
0.064×0.192 mm (H×V)
Configuration
RGB Vertical Stripe
Pixel Pitch
0.192×0.192 mm (H×V) [132PPI]
Mechanical Size :
Display Area
196.608×147.456 mm (H×V)
Outline Dim.
200.91×152.27 mm (H×V)
Outline Dim.
210.21×166.3 mm (H×V)
Outline Depth
3.28/5.85 (Typ./Max.) mm
Outline Features :
Form Factor
Flat Rectangle
Orientation
Landscape type
Aspect Ratio
4:3 (H:V)
Shape Style

Holes & Brackets :
Face mounting holes (6 pcs) on left, right slugs
Other Features :
Weight
200g (Typ.)
Surface
Hard coating

























































AVIC TM097TDH02-40 Optical Details

Basic Information :
Brightness
350 cd/m² (Typ.)
Contrast Ratio
500:1 (Typ.) (Transmissive)
Viewing Angle
70/60/70/70 (Typ.)(CR≥10)
Optical Mode
TN, Normally White, Transmissive
Viewing Direction
3 o'clock
Response Time
20 (Typ.)(Tr+Td) ms
Color Performance :
Chromaticity
Wx:0.311; Wy:0.316
Color Numbers
262K (6-bit)
Color Temperature
6720K
Uniformity
1.33 (Typ.)(9 points) 1024×768 RGB 350nits Tianma LCD Panel AVIC 9.7" TM097TDH02-40 5
1931 Color Gamlt :
NTSC Ratio
51%
sRGB
71% coverage
Adobe RGB
53% coverage
DCI-P3
53% coverage
Rec.2020
38% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)



























































AVIC TM097TDH02-40 Electronics Details

Frame Frequency :
60Hz
Reverse Scan :
Yes (U/D, L/R)
Power Consumption :
3.198W (Typ.)

AVIC TM097TDH02-40 Backlight Details

Back-light Features :
Lamp Type
WLED
Amount
6S6P
Life Time
30K(Typ.) Hours
Replacement
-
Lamp Shape
6 strings
Position
Edge light type
Lamp Electrical :
Voltage Input
19.2V (Typ.)
Current Input
20mA (Typ.)
Consumption
2.304W (Typ.) 1024×768 RGB 350nits Tianma LCD Panel AVIC 9.7" TM097TDH02-40 7
Interface Features :
Type
Included in panel signal interface
Position
-
Lamp Driver
No





































AVIC TM097TDH02-40 Interface Details

Signal Systerm :
LVDS (1 ch, 6-bit)
Logic Voltage
-
Signal Electrical :
Voltage Input
3.3V (Typ.)
Current Input
271mA (Typ.)
Consumption
894.3mW (Typ.)
Interface Features :
Type
Connector
Position
-
Connector Detail :
Brand
Model
Pin Pitch
Pins
Amount
Configuration 1024×768 RGB 350nits Tianma LCD Panel AVIC 9.7" TM097TDH02-40 8
I-PEX
20474-030E-11
0.4 mm
30 pins
1 pcs













































AVIC TM097TDH02-40 Carton Details

Package Carton : Amount Net Weight Carton Size (L×W×H)
60 pcs / box 19.3±0.97 Kgs 565×483×321 mm



FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.









1024×768 RGB 350nits Tianma LCD Panel AVIC 9.7" TM097TDH02-40 9









1024×768 RGB 350nits Tianma LCD Panel AVIC 9.7" TM097TDH02-40 10
