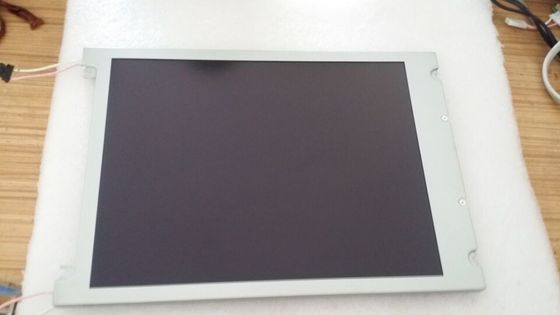

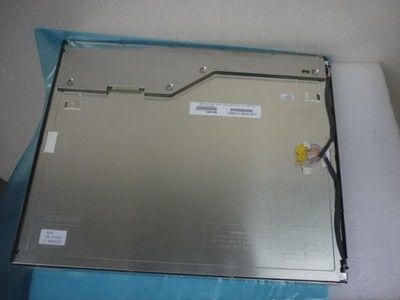

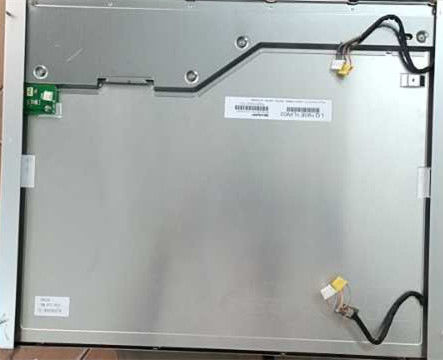

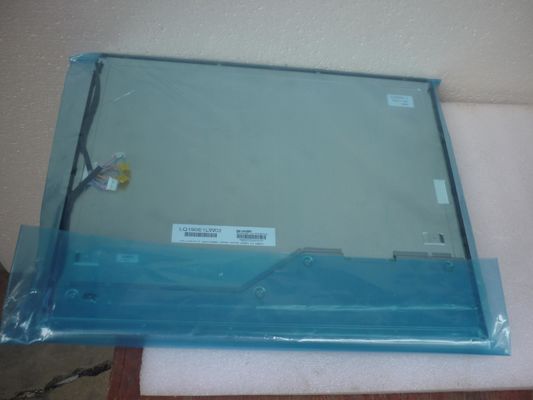

Product Details:
|
| Diagonal Size: | 19" | Model: | LQ190E1LW02 |
|---|---|---|---|
| Pixel Format: | 1280(RGB)×1024 [SXGA] 86PPI | Viewing Angle: | 85/85/85/85 (Min.)(CR≥10) |
| Luminance: | 300 Cd/m² (Typ.) | Interface Type: | LVDS (2 Ch, 8-bit) , 30 Pins Connector |
| Light Source: | CCFL [4 Pcs] , 50K Hours , W/O Driver | Environment: | Operating Temperature: 0 ~ 60 °C ; Storage Temperature: -25 ~ 60 °C ; Vibration Level: 2.0G (19.6 M/s²) |
| Highlight: | LVDS TFT LCD Display,CCFL Sharp TFT LCD Display |
||
LQ190 Series LQ190E1LW52 LQ190E1LW42 LQ190E1LW02 LQ190E1LW01
| Basic Information : | Manufacturer | Panel Model | Panel Type | Alias |
|---|---|---|---|---|
| SHARP | LQ190E1LW02 | a-Si TFT-LCD , LCM | - | |
| Environment : | RoHS State | Operating Temp. | Storage Temp. | Vibration Level |
| 0 ~ 60 °C | -25 ~ 60 °C | 2.0G (19.6 m/s²) |
| Basic Information : | Luminance (cd/m²) | Viewing Angle (L/R/U/D) | Response Time (ms) |
|---|---|---|---|
| 300 (Typ.) | 85/85/85/85 (Min.)(CR≥10) | 12 (Typ.)(Tr+Td) | |
| Best View on | Display Mode | Contrast Ratio | |
| Symmetry | ASV, Normally Black, Transmissive | 900 : 1 (Typ.) (Transmissive) | |
| Dispaly Color : | Color Temperature | Display Colors | White Coordinate |
| 6485K | 16.7M (8-bit) | X:0.313; Y:0.329 | |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 71% | 92% | 73% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 73% | 53% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| White Variation : | 1.43 (Max.)(9 Points) | ||
| Panel Size : | 19.0" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Format | Pixel Configuration | Pixel Pitch (mm) | Dot Pitch (mm) |
| 1280(RGB)×1024 [SXGA] | RGB Vertical Stripe | 0.294×0.294 [86PPI] | 0.098×0.294 | |
| Mechanical Size : | Active Area (mm) | Bezel Area (mm) | Outline Dimension (mm) | Outline Depth (mm) |
| 376.32(H) × 301.056(V) | 382.32(H) × 307.06(V) | 404.2(H) × 330(V) | 20.0±0.5 mm | |
| Outline Features : | Form Factor | Orientation | Aspect Ratio | Shape Style |
| Flat Rectangle | Landscape type | 5:4 (H:V) | ||
| Mounting : | Side mounting holes (4-M3) on left, right bezel | |||
| Other Detail : | Weight | Panel Cover | Treatment | |
| 2.80Kgs (Max.) | - | Antiglare (Haze 40%), Hard coating (2H) | ||
| Reverse Scan : | No |
|---|---|
| Vertical Frequency : | 60Hz |
| Power Consumption : | 25.5W |
| Lamp Features: | Type | Position | Quantity | Shape | Life(Hours) | Lamp Exchange |
|---|---|---|---|---|---|---|
| CCFL | Edge light type (Top and Bottom) | 4 pcs | Straight | 50K(Typ.) | Replaceable (LQ0DDB0086) | |
| CCFL Electrical : | Voltage Supply | Current Supply | Power | |||
| 750V (Typ.) | 4.0/7.0/8.0mA (Min./Typ./Max.) | 21.0W (Typ.) | ||||
| Operating Frequency | Kick-off Voltage | |||||
| 40/50/60KHz (Min./Typ./Max.) | 1500/1600V (Typ./Max.)(Ta=0℃) | |||||
| Interface Features : | Position | Backlight Driver | Type | |||
| - | No | Connector | ||||
| Interface Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
| JST | BHR-03VS-1 | 4.0 mm | 3 pins | 2 pcs | BLL-3PINS-HNL | |
| JST | BHR-03VL-1 | 4.0 mm | 3 pins | 2 pcs | BLL-3PINS-HNL | |
| Panel Driving Electrical : | Voltage Supply | Current Supply | Power | |||
|---|---|---|---|---|---|---|
| 5.0V (Typ.) | 900/1500mA (Typ./Max.) | - | ||||
| Interface Features : | Position | Signal | Type | |||
| LVDS (2 ch, 8-bit) | Connector | |||||
| Connector Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
| JAE | FI-X30SSL-HF | 1.0 mm | 30 pins | 1 pcs | LVDS-30P2C8B-160H | |
