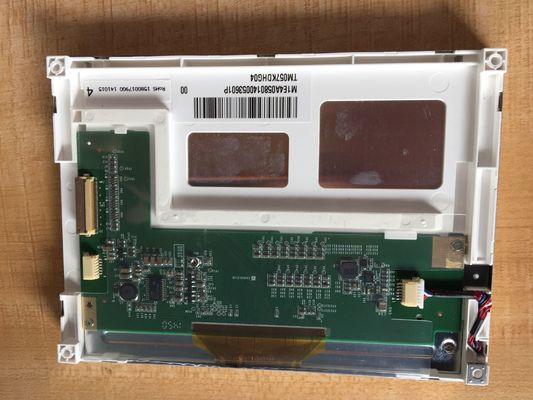

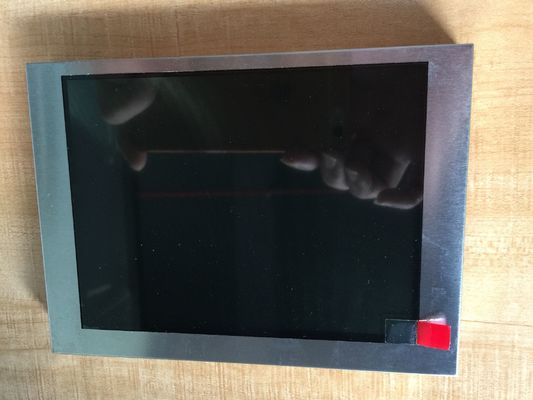

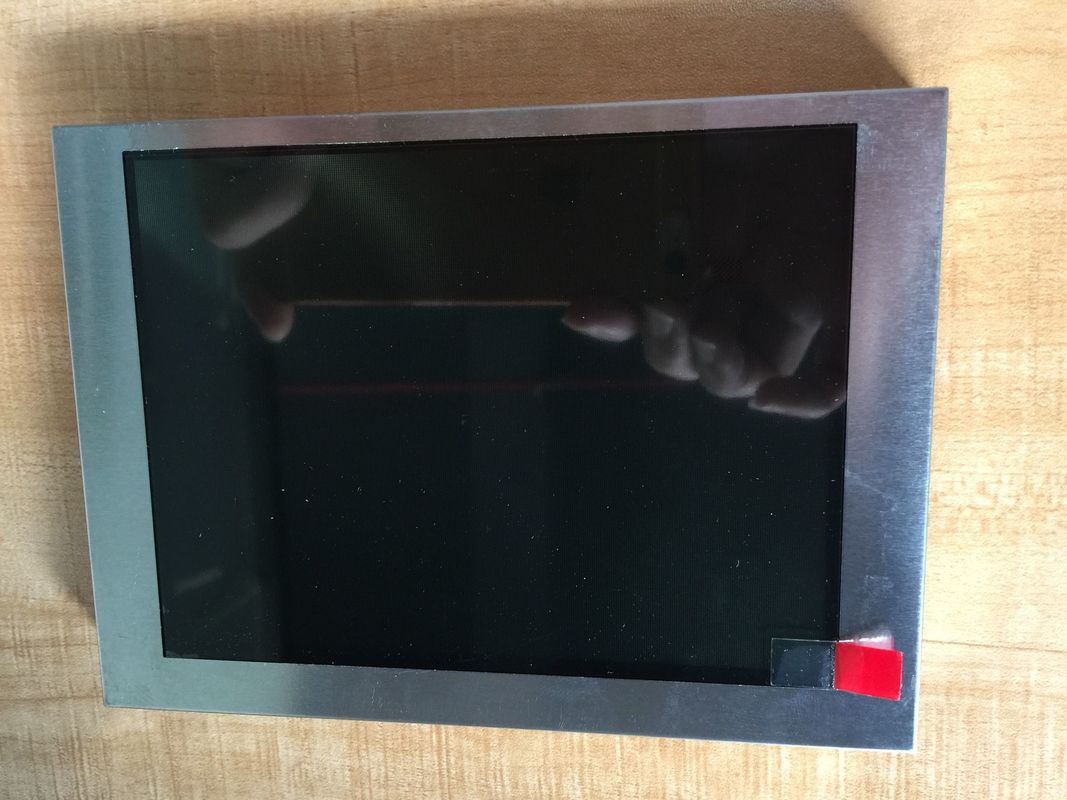

Product Details:
|
| MODEL NUMBER: | TM057KDHG04 | BRAND: | TIANMA |
|---|---|---|---|
| SIZE: | 5.7INCH | RESOLUTION: | 320(RGB)×240, QVGA, 70PPI |
| BRIGHTNESS: | 500 Cd/m² (Typ.) | Viewing Angle: | 70/70/70/60 (Typ.)(CR≥10 |
| TEMPERATURE RANGE: | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -20 ~ 80 °C | ||
| Highlight: | 500nits Tianma TFT Display,320×240RGB Tianma TFT Display,QVGA 70PPI Tianma LCD Panel |
||
| Basic Information : | Brand Name | Model Name | Type | Model Alias |
|---|---|---|---|---|
| TM057KDHG04 | a-Si TFT-LCD , LCM | - | ||
| Maximum Ratings : | RoHS | Operating Temperature | Storage Temperature | Vibration Level |
| -20 ~ 70 °C | -30 ~ 80 °C |
| Screen Size : | 5.7" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Number | Pixel Format | Dot Pitch (H×V) | Pixel Pitch (H×V) |
| 320(RGB)×240, QVGA | RGB Vertical Stripe | 0.120×0.360 mm | 0.360×0.360 mm [70PPI] | |
| Mechanical Size : | Display Area (H×V) | Bezel Opening (H×V) | Overall Dimension (H×V) | Overall Depth |
| 115.2×86.4 mm | - | 144×104.6 mm | 12.3/12.8 (Typ./Max.) mm | |
| Outline Features : | Form Shape | Aspect Ratio (H:V) | Orientation | Shape Style |
| Flat Rectangle | 4:3 | Landscape type | ||
| Other Spec : | Mass | Panel Cover | Surface Treatment | |
| TBD | - | Antiglare, Hard coating (3H) | ||
| Holes & Brackets : | Rear mounting Pole (4-Φ2.6) | |||
| Basic Information : | Luminance | Work Mode | Contrast Ratio |
|---|---|---|---|
| 500 cd/m² (Typ.) | TN, Normally White, Transmissive | 500:1 (Typ.) (Transmissive) | |
| Good View at | Viewing Angle | Response Time | |
| 6 o'clock | 70/70/70/60 (Typ.)(CR≥10) | 20 (Typ.)(Tr+Td) (ms) | |
| Dispaly Color : | Color Temperature: | Support Color | Color Coordinate |
| 6485K | 262K (6-bit) | X:0.313; Y:0.329 | |
| 1931 Color Gamut : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 54% | 73% | 56% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 55% | 40% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| White Uniformity : | 1.25/1.33 (Typ./Max.)(9 points) | ||
| Refresh Rate : | 60Hz |
|---|---|
| Reverse Scan : | Yes (U/D, L/R) |
| Time Controller (T-CON) : | Embedded T-CON |
| Back-light Features: | Type | Position | Life(Hours) | Amount | Shape | Replacement |
|---|---|---|---|---|---|---|
| WLED | Edge light type | 50K(Typ.) | 6S3P | Array | - | |
| Interface Features : | WLED Driver State | Physical Type | Interface Position | |||
| With LED Driver | Connector | - | ||||
| Interface Detail | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration  |
| JST | SM06B-SRSS-TB | 1 pcs | 6 pins | 1.0 mm | ||
| WLED Driver Electrical : | Input Voltage | Input Current | Power Consumption | |||
| 9.0/12.0/21.0V (Min./Typ./Max.) | ||||||
| Signal Electrical : | Input Voltage | Input Current | Power Consumption | |||
|---|---|---|---|---|---|---|
| 3.3V (Typ.) | 145/225mA (Typ./Max.) | - | ||||
| Voltage for Display Signals : | 0≤VIL≤0.3VCC; 0.7VCC≤VIH≤VCC | |||||
| Interface Features : | Signal Type | Physical Type | Interface Position | |||
| Parallel RGB (1 ch, 6-bit) | Connector | - | ||||
| Interface Detail : | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
| HRS | FH12-33S-0.5SH(55) | 1 pcs | 33 pins | 0.5 mm | ||
