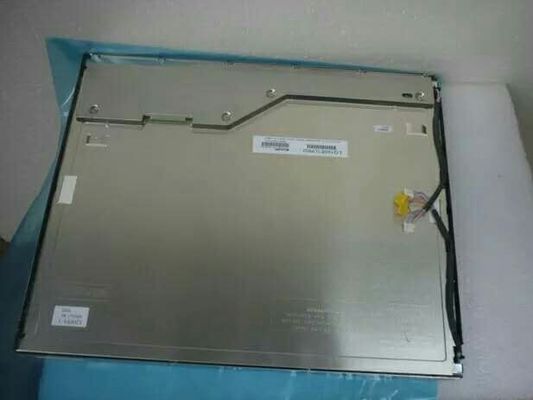

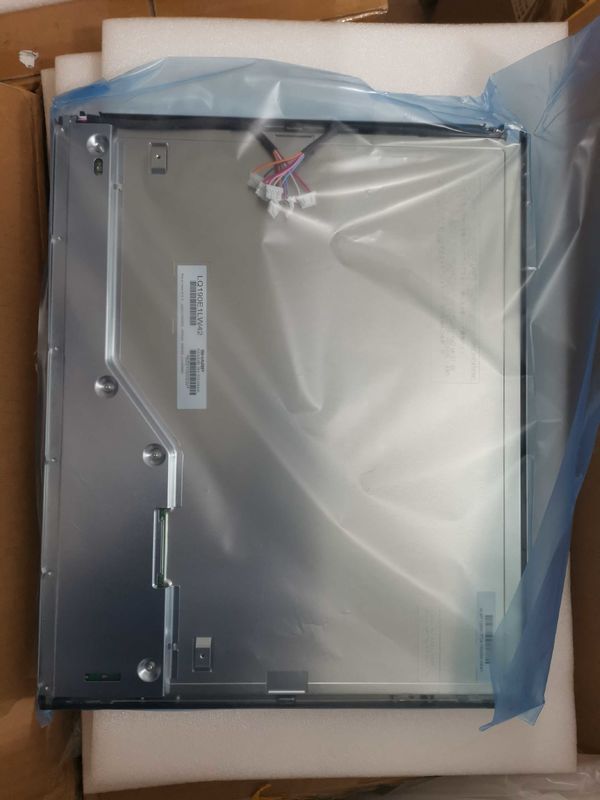

Product Details:
|
| Model: | LQ190E1LW42 | Diagonal Size: | 19" |
|---|---|---|---|
| Configuration: | RGB Vertical Stripe | Light Source: | CCFL [6 Pcs] , 50K Hours , W/O Driver |
| Pixel Format: | 1280(RGB)×1024 [SXGA] 86PPI | Luminance: | 450 Cd/m² (Typ.) |
| Interface Type: | LVDS (2 Ch, 8-bit) 30 Pins Connector | Environment: | Operating Temperature: 0 ~ 60 °C ; Storage Temperature: -25 ~ 60 °C ; Vibration Level: 2.0G (19.6 M/s²) |
| High Light: | LVDS TFT LCD Display,CCFL Sharp TFT LCD Display |
||
LQ190 Series LQ190E1LW52 LQ190E1LW42 LQ190E1LW02 LQ190E1LW01
| Basic Information : | Brand Name | Model Name | Type | Model Alias |
|---|---|---|---|---|
| SHARP | LQ190E1LW42 | a-Si TFT-LCD , LCM | FU-19-002 | |
| Maximum Ratings : | RoHS | Operating Temperature | Storage Temperature | Vibration Level |
| 0 ~ 60 °C | -25 ~ 60 °C | 2.0G (19.6 m/s²) |
| Screen Size : | 19.0" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Number | Pixel Format | Dot Pitch (H×V) | Pixel Pitch (H×V) |
| 1280(RGB)×1024, SXGA | RGB Vertical Stripe | 0.098×0.294 mm | 0.294×0.294 mm [86PPI] | |
| Mechanical Size : | Display Area (H×V) | Bezel Opening (H×V) | Overall Dimension (H×V) | Overall Depth |
| 376.32×301.056 mm | 382.32×307.06 mm | 404.2×330 mm | 22.0±0.5 mm | |
| Outline Features : | Form Shape | Aspect Ratio (H:V) | Orientation | Shape Style |
| Flat Rectangle | 5:4 | Landscape type | ||
| Other Spec : | Mass | Panel Cover | Surface Treatment | |
| 3.20Kgs (Max.) | - | Antiglare (Haze 40%), Hard coating (2H) | ||
| Holes & Brackets : | Side mounting holes (4-M3) on left, right bezel | |||
| Basic Information : | Luminance | Work Mode | Contrast Ratio |
|---|---|---|---|
| 450 cd/m² (Typ.) | MVA, Normally Black, Transmissive | 900:1 (Typ.) (Transmissive) | |
| Good View at | Viewing Angle | Response Time | |
| Symmetry | 85/85/85/85 (Min.)(CR≥10) | 12 (Typ.)(Tr+Td); 8 (Typ.)(G to G) (ms) | |
| Dispaly Color : | Color Temperature: | Support Color | Color Coordinate |
| 6485K | 16.7M (8-bit) | X:0.313; Y:0.329 | |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 71% | 92% | 73% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 73% | 53% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| White Uniformity : | 1.43 (Max.)(9 Points) | ||
| Refresh Rate : | 60Hz |
|---|---|
| Reverse Scan : | No |
| Power Consumption : | 38.3W |
| Back-light Features: | Type | Position | Life(Hours) | Amount | Shape | Replacement |
|---|---|---|---|---|---|---|
| CCFL | Edge light type (Top and Bottom) | 50K(Typ.) | 6 pcs | Straight | Replaceable (LQ0DDB0087) | |
| CCFL Electrical : | Input Voltage | Input Current | Power Consumption | |||
| 750V (Typ.) | 4.0/7.0/8.0mA (Min./Typ./Max.) | 31.5W (Typ.) | ||||
| Operating Frequency | Startup Voltage | |||||
| 40/50/60KHz (Min./Typ./Max.) | 1600V (Max.)(Ta=0℃) | |||||
| Interface Features : | CCFL Driver State | Physical Type | Interface Position | |||
| No | Connector | - | ||||
| Interface Detail | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
| JST | BDBR-03(4.0)V-1S | 6 pcs | 3 pins | 4.0 mm | BLL-3PINS-HNL | |
| Signal Electrical : | Input Voltage | Input Current | Power Consumption | |||
|---|---|---|---|---|---|---|
| 5.0V (Typ.) | 950/1650mA (Typ./Max.) | - | ||||
| Interface Features : | Signal Type | Physical Type | Interface Position | |||
| LVDS (2 ch, 8-bit) | Connector | |||||
| Interface Detail : | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
| JAE | FI-X30SSL-HF | 1 pcs | 30 pins | 1.0 mm | LVDS-30P2C8B-160H | |
