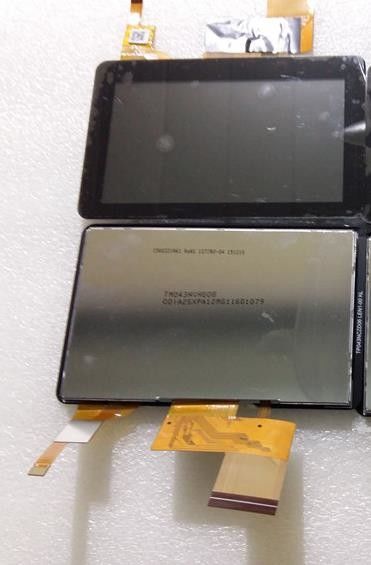

Product Details:
|
| MODEL NUMBER: | TM043NVHG08 | BRAND: | TIANMA |
|---|---|---|---|
| SIZE: | 4.3 Inch | RESOLUTION: | 480(RGB)×272, WQVGA, 128PPI |
| BRIGHTNESS: | 350 Cd/m² (Typ. | Viewing Angle: | 80/80/80/60 (Typ.)(CR≥10) Left / Right / Up / Down |
| TEMPERATURE RANGE: | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C | ||
| Highlight: | LVDS TFT LCD Display,CCFL Sharp TFT LCD Display |
||
| Basic Information : | Brand | Model | TM043NVHG08 | |
|---|---|---|---|---|
| Type | Assembly a-Si TFT-LCD | Used For | ||
| Screen Size | 4.3" | Alias | - | |
| Environment : | Storage Temp. | -30 ~~ 80 °C | Operating Temp. | -20 ~~ 70 °C |
| Pixel Features : | Resolution | 480(RGB)×272, WQVGA | Dot Pitch(mm) | 0.066×0.198 (H×V) |
|---|---|---|---|---|
| Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.198×0.198 (H×V) [128PPI] | |
| Mechanical Size : | Active Area(mm) | 95.04(H) × 53.856(V) | Bezel Area(mm) | 96.04(H) × 54.86(V) |
| Outline Dim.(mm) | 113.44(H) × 71.46(V) | Depth(mm) | 4.65±0.35 | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 16:9 (H:V) | Orientation | Landscape type | |
| Touch Panel : | Touch Points | 5 points | Touch Panel | PCAP |
| TP Controller | With controller | Touch Signal | I²C | |
| Other Spec : | Weight | TBD | Treatment | - |
| Panel Cover | With Cover Lens | |||
| Basic Information : | Luminance(cd/m²) | 350 (Typ.) | Contrast Ratio | 900:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 80/80/80/60 (Typ.)(CR≥10) | Display Mode | TN, Normally White, Transmissive | |
| Best View on | 6 o'clock | Response(ms) | 20 (Typ.)(Tr/Td) | |
| Color Performance : | White Coordinate | X:0.305; Y:0.327 | Display Colors | 16.7M (8-bit) |
| Color Temperature | 6949K | White Uniformity | 1.25/1.33 (Typ./Max.) | |
| 1931 Color Gamut : | NTSC Ratio | 53% | sRGB | 74% coverage |
| Adobe RGB | 56% coverage | DCI-P3 | 55% coverage | |
| Rec.2020 | 40% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Frame Rate : | 60Hz |
|---|---|
| Reverse Scan : | No |
| Driver IC : | COG Built-in ST7282T2 |
| Time Controller (T-CON) : | Embedded T-CON |
| Signal Electrical : | Voltage Supply | 3.3/7.5V (Typ.)(VDD/VPP) | Current Supply | - | ||
|---|---|---|---|---|---|---|
| Signal Type : | Parallel RGB (1 ch, 8-bit) | Signal Voltage | 0≤VIL≤0.3VDD; 0.7VDD≤VIH≤VDD | |||
| Interface Features : | Position | - | Type | FPC | ||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| 1 pcs | 40 pins | 0.5 mm | ||||
| Backlight Features: | Shape | Array | Type | WLED | Position | Edge light type |
|---|---|---|---|---|---|---|
| Replacement | - | Quantity | 5S2P | Life Time | 20K(Typ.) (Hours) | |
| Lamp Electrical : | Voltage Supply | 16/18V (Typ./Max.) | Current Supply | 40/50mA (Typ./Max.) | ||
| Consumption | 640mW (Typ.) | |||||
| Interface Features : | Position | - | Type | Included in signal interface | ||
| Backlight Driver : | No | |||||
whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 95.04(W)×53.856(H) mm, outline size of 113.44(W)×71.46(H)×5(D) mm, viewing area size of 96.04(W)×54.86(H) mm, net weight of TBD. As a TN, Normally White, Transmissive Assembly product, TM043NVHG08 can provides 350 cd/m² display brightness 900:1 transimissive contrast ratio, 80/80/80/60 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 20 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 50% (NTSC). This product adopted 5S2P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 20K hours, external backlight driver is additionally needed. TM043NVHG08 utilizes Parallel RGB (1 ch, 8-bit) as it's signal inputting systerm, which connected by 40 pins FPC with power supply voltage of 3.3/7.5V (Typ.)(VDD/VPP).
