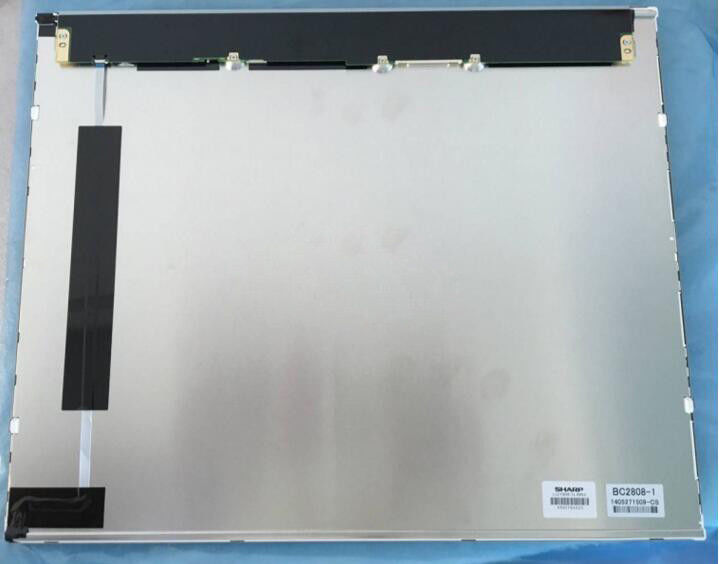

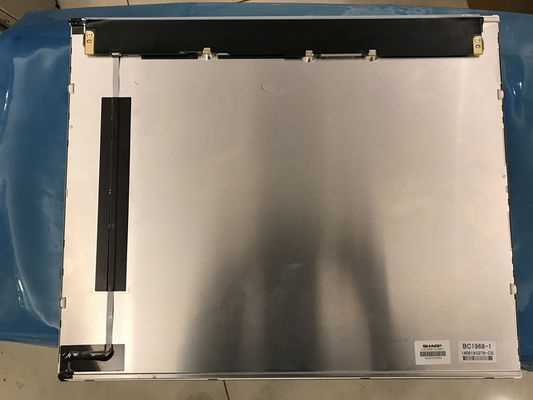

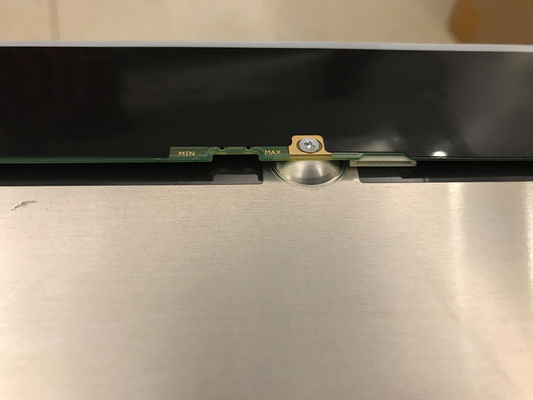

Product Details:
|
| Screen Size: | 19" | Model Name: | LQ190E1LW61 |
|---|---|---|---|
| Lamp Type: | WLED , 50K Hours , With LED Driver | Viewing Angle: | 85/85/85/85 (Typ.)(CR≥10) |
| Signal Interface: | LVDS (2 Ch, 8-bit) , 30 Pins Connector | Resolution: | 1280(RGB)×1024, SXGA, 86PPI |
| Brightness: | 470cd/m² | Environment: | Operating Temp.: 0 ~ 60 °C ; Storage Temp.: -25 ~ 60 °C |
| Highlight: | LVDS TFT LCD Display,CCFL Sharp TFT LCD Display |
||
LQ190 Series LQ190E1LW72 LQ190E1LW62 LQ190E1LW61
| Basic Information : | Manufacturer | Panel Model | Panel Type | Alias |
|---|---|---|---|---|
| SHARP | LQ190E1LW61 | a-Si TFT-LCD , LCM | - | |
| Environment : | RoHS State | Operating Temp. | Storage Temp. | Vibration Level |
| 0 ~ 60 °C | -25 ~ 60 °C | - |
| Basic Information : | Luminance (cd/m²) | Viewing Angle (L/R/U/D) | Response Time (ms) |
|---|---|---|---|
| 470 (Typ.) | 85/85/85/85 (Typ.)(CR≥10) | 35 (Typ.)(Tr+Td) | |
| Best View on | Display Mode | Contrast Ratio | |
| Symmetry | ASV, Normally Black, Transmissive | 1500 : 1 (Typ.) (Transmissive) | |
| Dispaly Color : | Color Temperature | Display Colors | White Coordinate |
| 6485K | 16.7M (8-bit) | X:0.313; Y:0.329 | |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 92% | 100% | 88% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 94% | 68% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| White Variation : | 1.33 (Max.)(9 points) | ||
| Panel Size : | 19.0" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Format | Pixel Configuration | Pixel Pitch (mm) | Dot Pitch (mm) |
| 1280(RGB)×1024 [SXGA] | RGB Vertical Stripe | 0.294×0.294 [86PPI] | 0.098×0.294 | |
| Mechanical Size : | Active Area (mm) | Bezel Area (mm) | Outline Dimension (mm) | Outline Depth (mm) |
| 376.32(H) × 301.056(V) | - | 396(H) × 323.5(V) | 11.5±0.5 mm | |
| Outline Features : | Form Factor | Orientation | Aspect Ratio | Shape Style |
| Flat Rectangle | Landscape type | 5:4 (H:V) | ||
| Mounting : | Side mounting holes (4-M3) on left, right bezel | |||
| Other Detail : | Weight | Panel Cover | Treatment | |
| 1.30Kgs (Max.) | - | Antiglare (Haze 3%), Hard coating (2H) | ||
| Reverse Scan : | No |
|---|---|
| Vertical Frequency : | 60Hz |
| Power Consumption : | 26.8W |
| Lamp Features: | Type | Position | Quantity | Shape | Life(Hours) | Lamp Exchange |
|---|---|---|---|---|---|---|
| WLED | Edge light type | - | - | 50K(Typ.) | - | |
| Interface Features : | Position | Backlight Driver | Type | |||
| With LED Driver | Connector | |||||
| Interface Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
| JST | SM10B-SHLS-TF | 1.0 mm | 10 pins | 1 pcs | ||
| Driver Electrical : | Voltage Supply | Current Supply | Power Consumption | |||
| 12.0V (Typ.) | 2.0/2.5A (Typ./Max.) | - | ||||
| Panel Driving Electrical : | Voltage Supply | Current Supply | Power | |||
|---|---|---|---|---|---|---|
| 5.0V (Typ.) | 0.5/1.0A (Typ./Max.) | - | ||||
| Interface Features : | Position | Signal | Type | |||
| LVDS (2 ch, 8-bit) | Connector | |||||
| Connector Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
| JAE | FI-XB30SSRLA-HF16 | 1.0 mm | 30 pins | 1 pcs | LVDS-30P2C8B-200A | |
