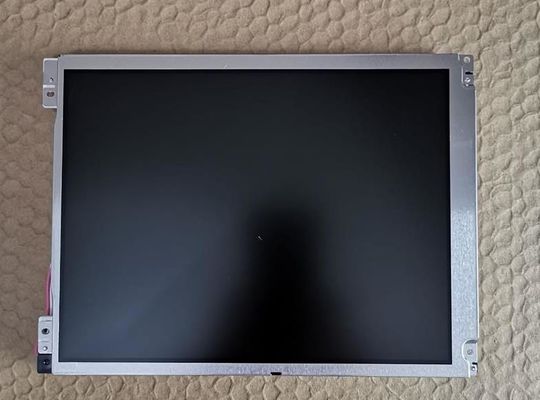

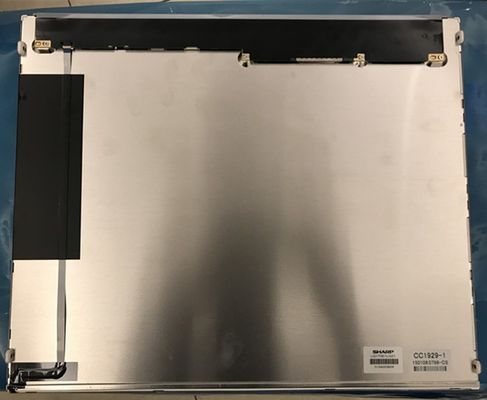

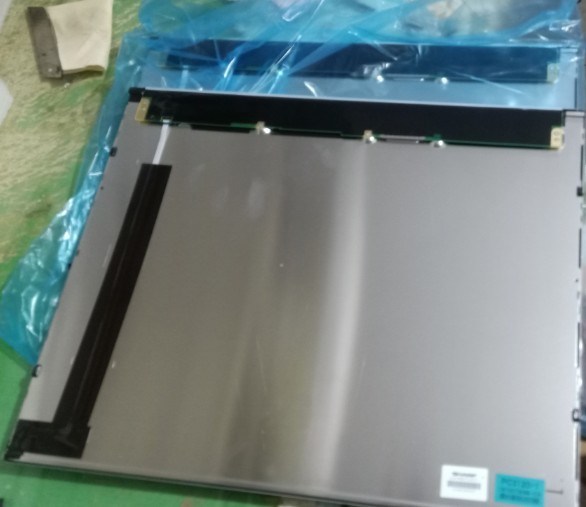

Product Details:
|
| Size: | 19" | Luminance: | 330cd/m² |
|---|---|---|---|
| Pixel Format: | 1280(RGB)×1024 [SXGA] 86PPI | Viewing Angle: | 85/85/85/85 (Typ.)(CR≥10) |
| Light Source: | WLED | Interface Type: | LVDS (2 Ch, 8-bit) |
| Active Area: | 376.32(H)×301.056(V) Mm | Panel Model: | LQ190E1LX65 |
| Highlight: | LVDS TFT LCD Display,CCFL Sharp TFT LCD Display |
||
LQ190 Series LQ190E1LX78 LQ190E1LX75T LQ190E1LX75 LQ190E1LX65
| Pixel Features : | Pixel Format | 1280(RGB)×1024 [SXGA] | Dot Pitch | 0.098×0.294 mm (H×V) |
|---|---|---|---|---|
| Configuration | RGB Vertical Stripe | Pixel Pitch | 0.294×0.294 mm (H×V) [86PPI] | |
| Mechanical Size : | Display Area | 376.32×301.056 mm (H×V) | Bezel Area | - |
| Outline Dim. | 396×323.6 mm (H×V) | Outline Depth | 11.5 (Typ.) mm | |
| Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio | 5:4 (H:V) | Shape Style | ||
| Other Features : | Weight | 1.30Kgs (Typ.) | Surface | - |
| Basic Information : | Brightness | 330 cd/m² (Typ.) | Contrast Ratio | 1500:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) | Optical Mode | ASV, Normally Black, Transmissive | |
| Viewing Direction | Symmetry | Response Time | 35 (Typ.)(Tr+Td) (ms) | |
| Color Performance : | Chromaticity | - | Color Numbers | 16.7M (8-bit) |
| Frame Frequency : | 60Hz |
|---|---|
| Reverse Scan : | No |
| Power Consumption : | 19.6W (Typ.) |
LQ190E1LX65 supports display 1280(RGB)×1024 (SXGA) with aspect ratio of 5:4 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 376.32(W)×301.056(H) mm, outline size of 396(W)×323.6(H) mm, net weight of 1.30Kgs (Typ.). As a ASV, Normally Black, Transmissive LCM product, LQ190E1LX65 can provides 330 cd/m² display brightness 1500:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 35 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 76% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type. LQ190E1LX65 utilizes LVDS (2 ch, 8-bit) as it's signal inputting systerm with power supply voltage of 5.0V (Typ.).
