Product Details:
|
| Diagonal Size: | 19.0 Inch | Model: | LQ190E1LX75 |
|---|---|---|---|
| Active Area: | 376.32(H)×301.056(V) Mm | Pixel Format: | 1280(RGB)×1024 [SXGA] 86PPI |
| Luminance: | 350 Cd/m² (Typ.) | Light Source: | WLED , 70K Hours , With LED Driver |
| Interface Type: | LVDS (2 Ch, 8-bit) 30 Pins Connector | Environment: | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -25 ~ 70 °C |
| Highlight: | LVDS TFT LCD Display,CCFL Sharp TFT LCD Display |
||
LQ190 Series LQ190E1LX78 LQ190E1LX75T LQ190E1LX75 LQ190E1LX65
| Basic Detail : | |
|---|---|
| Maximum Ratings : |
| Basic Detail : | |
|---|---|
| Color Performance : | |
| 1931 Color Gamlt : |
| Pixel Features : | |
|---|---|
| Physical Size : | |
| Outline Features : | |
| Fixation : | |
| Other Detail : |
| Refresh Rate : | |
|---|---|
| Reverse Scan : |
| Signal Electrical : | |
|---|---|
| Interface Features : | |
| Interface Detail : |
| Lamp Features : | |
|---|---|
| Interface Features : | |
| Interface Detail : | |
| Backlight Driver : | |
| Driver Electrical : |

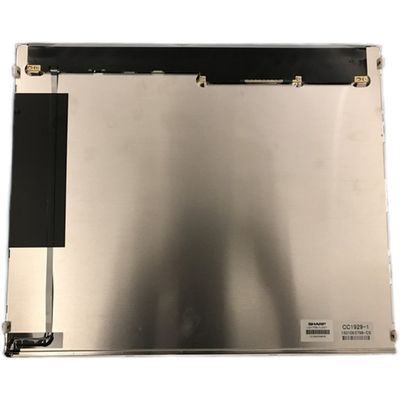

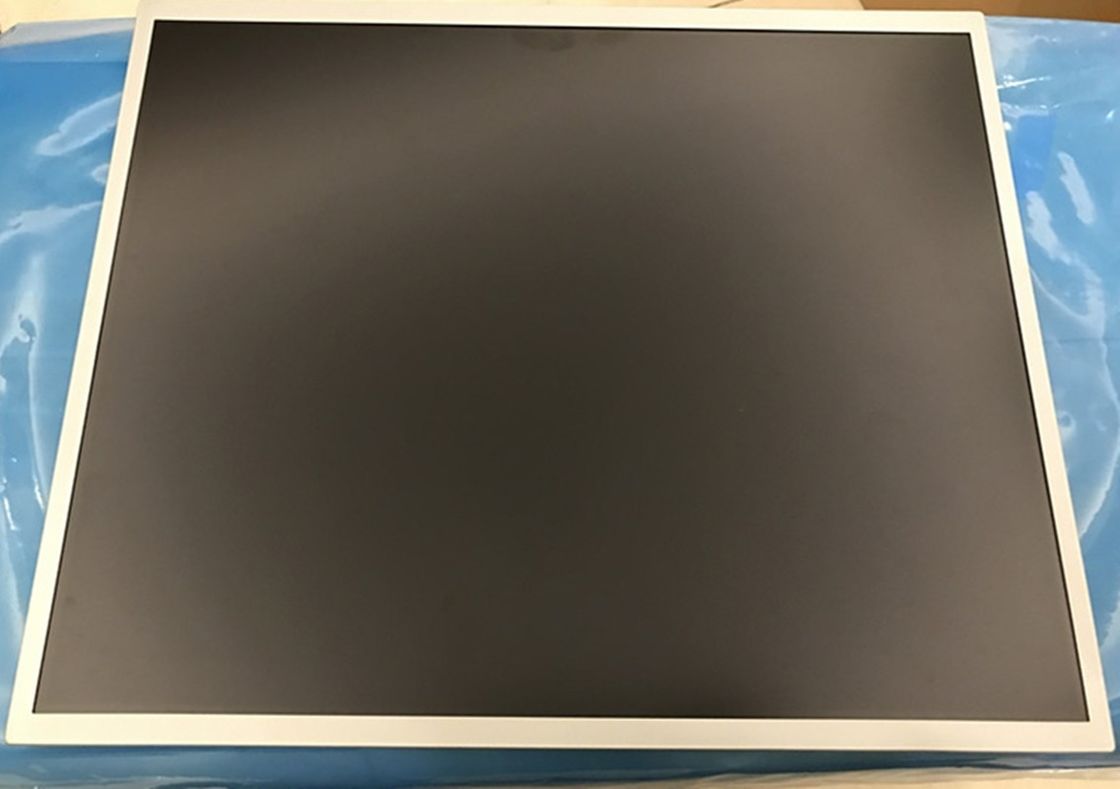

LQ190E1LX75 supports display 1280(RGB)×1024 (SXGA) with aspect ratio of 5:4 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 376.32(W)×301.056(H) mm, outline size of 396(W)×323.7(H)×12(D) mm, viewing area size of 382.00(W)×307.55(H) mm, with surface treament of Antiglare (Haze 3%), Hard coating (3H), net weight of 1.30Kgs (Max.). As a ASV, Normally Black, Transmissive LCM product, LQ190E1LX75 can provides 350 cd/m² display brightness 1500:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 35 (Typ.)
