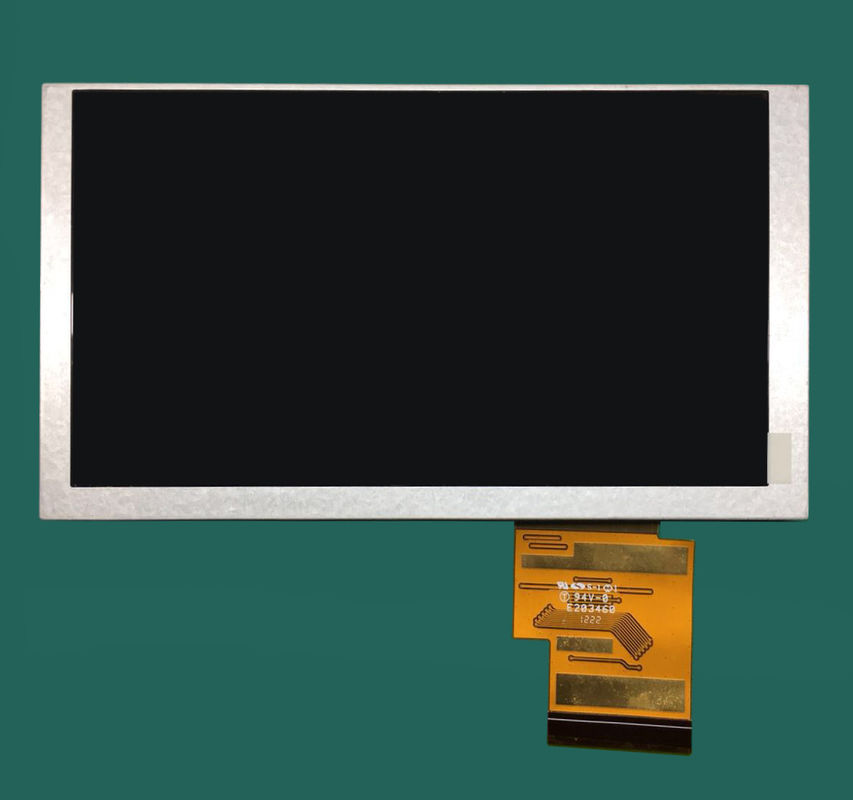

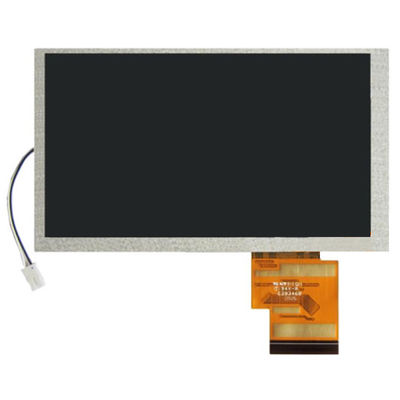

Product Details:
|
| MODEL NUMBER: | TM062RDH03 | BRAND: | TIANMA |
|---|---|---|---|
| SIZE: | 6.2 Inch | RESOLUTION: | 800(RGB)×480 [WVGA] 150PPI |
| BRIGHTNESS: | 400 Cd/m² (Typ.) | Viewing Angle: | 75/75/60/70 (Typ.)(CR≥10 |
| TEMPERATURE RANGE: | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C | ||
| High Light: | LVDS TFT LCD Display,CCFL Sharp TFT LCD Display |
||
| Basic Detail : | Manufacturer | Model Name | TM062RDH03 | |
|---|---|---|---|---|
| Panel Type | a-Si TFT-LCD , LCM | Another Name | - | |
| Panel Size | 6.2 inch | Designed For |
|
|
| Maximum Ratings : | OP Temperature | -20 ~ 70 °C | ST Temperature | -30 ~ 80 °C |
| Basic Information : | Luminance | 400 cd/m² (Typ.) | Contrast Ratio | 500 : 1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Good View at | 12 o'clock | Response Speed | 20 (Typ.)(Tr+Td) (ms) | |
| Viewing Angle | 75/75/60/70 (Typ.)(CR≥10) | Operating Mode | TN, Normally White, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.296; Wy:0.329 | Support Color | 262K/16.2M (6-bit / 6-bit + Dithering) |
| Color Temperature | 7458K | White Uniformity | 1.25/1.33 (Typ./Max.)(9 points) | |
| 1931 Color Gamut : | NTSC Ratio | 48% | sRGB | 67% coverage |
| Adobe RGB | 50% coverage | DCI-P3 | 50% coverage | |
| Rec.2020 | 36% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Pixel Features : | Number of Pixel | 800(RGB)×480 [WVGA] | Arrangement | RGB Vertical Stripe |
|---|---|---|---|---|
| Dot Pitch(W×H) | 0.05725×0.161 mm | Pixel Pitch(W×H) | 0.17175×0.161 mm [150PPI] | |
| Physical Size : | Active Viewing | 137.4(W)×77.28(H) mm | Overall Dim. | 155.2(W)×88.2(H) mm |
| Bezel Opening | 140.7(W)×80.4(H) mm | Overall Depth | 4.9±0.3 mm | |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio(W:H) | 16:9 | Shape Style | ||
| Other Detail : | Mass | TBD | Surface | Antiglare |
| Reverse Scan : | Yes (U/D, L/R) |
|---|---|
| Time Controller (T-CON) : | Embedded T-CON |
| Signal Electrical : | Input Current | 5/25/0.4/0.4mA (Typ.)(ICC/IVDD/IGH/IGL) | Input Voltage | 3.3/9.84/19/-7V (Typ.)(AVCC/DVCC/VGH/VGL) | ||
|---|---|---|---|---|---|---|
| Consumption | - | Signal Interface | TTL (1 ch, 6/8-bit) | |||
| Logic Voltage for Signals : | 0≤VIL≤0.3VCC; 0.7VCC≤VIH≤VCC | |||||

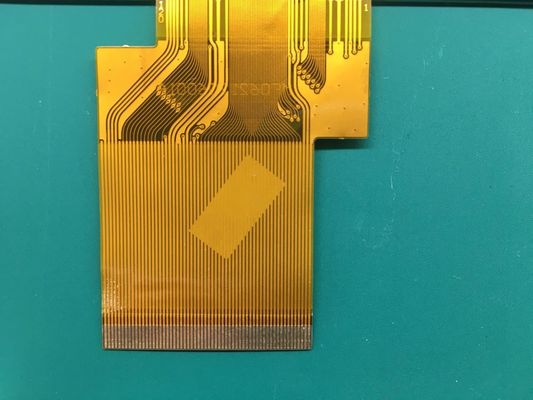

| Interface Features : | Position | - | Physical Type | FPC | ||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| 1 pcs | 0.5 mm | 60 pins | ||||
| Lamp Features: | Lamp Shape | Array | Lamp Type | WLED | Position | Edge light type |
|---|---|---|---|---|---|---|
| Exchange | - | Amount | 3S8P | Life | 20K(Typ.) (Hours) | |
| Lamp Electrical : | Input Current | 160/200mA (Typ./Max.) | Input Voltage | 9.6V (Typ.) | ||
| Consumption | 1.54/1.92W (Typ./Max.) | |||||
| Interface Features : | Position | - | Physical Type | Connector | ||
| Interface Detail : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| JST | BHSR-02VS-1 | 1 pcs | 3.5 mm | 2 pins | BLE-2PINS-AC | |
| Backlight Driver : | No | |||||
whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 137.4(W)×77.28(H) mm, outline size of 155.2(W)×88.2(H)×5.2(D) mm, viewing area size of 140.7(W)×80.4(H) mm, with surface treament of Antiglare, net weight of TBD. As a TN, Normally White, Transmissive LCM product, TM062RDH03 can provides 400 cd/m² display brightness 500:1 transimissive contrast ratio, 75/75/60/70 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 12 o'clock , and response time of 20 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit / 6-bit + Dithering gray scale signal for each dot, thus presenting a palette of 262K/16.2M colors, also with performance of color gamut 47% (NTSC). This product adopted 3S8P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 20K hours, external backlight driver is additionally needed. TM062RDH03 utilizes TTL (1 ch, 6/8-bit) as it's signal inputting systerm,
