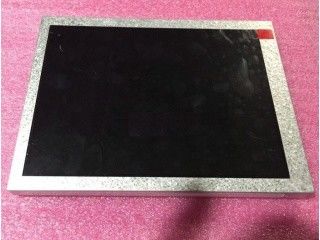

Product Details:
|
| MODEL NUMBER: | TM070RDH10-00 | BRAND: | TIANMA |
|---|---|---|---|
| SIZE: | 7.0INCH | RESOLUTION: | 800(RGB)×480 (WVGA) 134PPI |
| BRIGHTNESS: | 450 Cd/m² (Typ.) | Viewing Angle: | 70/70/50/70 (Typ.)(CR≥10) |
| TEMPERATURE RANGE: | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C | ||
| Highlight: | LVDS TFT LCD Display,CCFL Sharp TFT LCD Display |
||
| Basic Information : | Brand | Model | TM070RDH10-00 1 Compatible | |
|---|---|---|---|---|
| Type | LCM a-Si TFT-LCD | Used For |
|
|
| Screen Size | 7.0" | Alias | - | |
| Environment : | Storage Temp. | -30 ~~ 80 °C | Operating Temp. | -20 ~~ 70 °C |
| RoHS | Vibration | - | ||
| Typical Features : |
|
|||

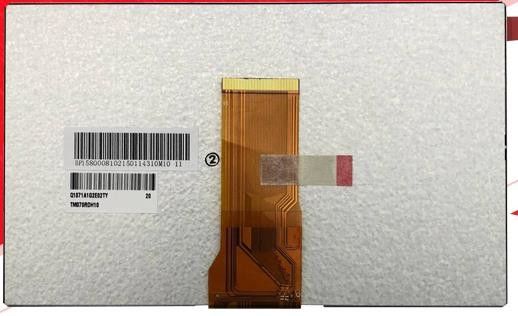

| Remarks : | 80.15mm length FPC | |||
| Pixel Features : | Resolution | 800(RGB)×480, WVGA | Dot Pitch(mm) | 0.0642×0.1790 (H×V) |
|---|---|---|---|---|
| Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.1926×0.1790 (H×V) [134PPI] | |
| Mechanical Size : | Active Area(mm) | 154.08(H) × 85.92(V) | Bezel Area(mm) | 157.08(H) × 89.39(V) |
| Outline Dim.(mm) | 164.9(H) × 100(V) | Depth(mm) | 5.7±0.3 | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 16:9 (H:V) | Orientation | Landscape type | |
| Mounting : | Without | |||
| Other Spec : | Weight | TBD | Treatment | Antiglare |
| Basic Information : | Luminance(cd/m²) | 450 (Typ.) | Contrast Ratio | 500:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 70/70/50/70 (Typ.)(CR≥10) | Display Mode | TN, Normally White, Transmissive | |
| Best View on | 12 o'clock | Response(ms) | 25 (Typ.)(Tr+Td) | |
| Color Performance : | White Coordinate | X:0.315; Y:0.330 | Display Colors | 262K/16.7M (6-bit / 6-bit + Dithering) |
| Color Temperature | 6371K | White Uniformity | 1.33 (Typ.)(9 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 50% | sRGB | 70% coverage |
| Adobe RGB | 52% coverage | DCI-P3 | 52% coverage | |
| Rec.2020 | 37% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Signal Electrical : | Voltage Supply | 3.3/12.5/22.0/-7.0V (Typ.)(VCC/AVDD/VGH/VGL) | Current Supply | 10/55/0.3/0.3mA (Max.)(ICC/IDD/IGH/IGL) | ||
|---|---|---|---|---|---|---|
| Signal Type : | Parallel RGB (1 ch, 6/8-bit) | Signal Voltage | 0≤VIL≤0.3VCC; 0.7VCC≤VIH≤VCC | |||
| Interface Features : | Position | - | Type | FPC | ||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| 1 pcs | 50 pins | 0.5 mm | DRGB-50P1C8B-115A | |||
| Backlight Features: | Shape | Array | Type | WLED | Position | Edge light type |
|---|---|---|---|---|---|---|
| Replacement | - | Quantity | 3S8P | Life Time | 20K(Typ.) (Hours) | |
| Lamp Electrical : | Voltage Supply | 9.6/10.8V (Typ./Max.) | Current Supply | 160/200mA (Typ./Max.) | ||
| Consumption | 1.54/2.16W (Typ./Max.) | |||||
| Interface Features : | Position | - | Type | Included in panel signal interface | ||
| Backlight Driver : | No | |||||
| Package Box : | Quantity | Weight | Box Size |
|---|---|---|---|
| 50 pcs / box | TBD | 530×350×250 mm (L×W×H) |
