Product Details:
|

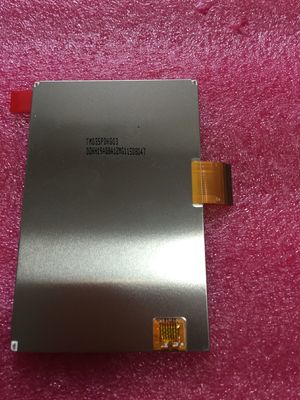

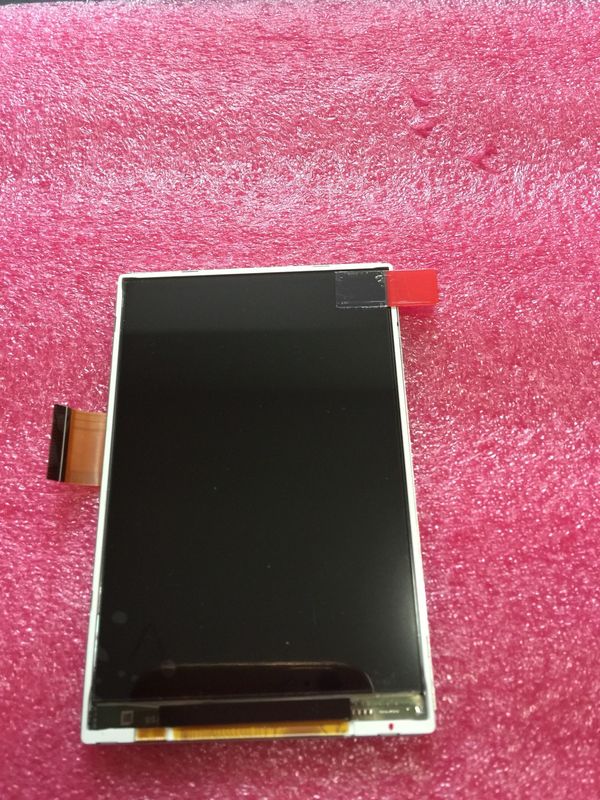

| MODEL NUMBER: | TM035PDHG03 | BRAND: | TIANMA |
|---|---|---|---|
| SIZE: | 3.5"inch | RESOLUTION: | 320(RGB)×480, HVGA, 166PPI |
| BRIGHTNESS: | 300CD/M2 | TEMPERATURE RANGE: | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C |
| Highlight: | LVDS TFT LCD Display,CCFL Sharp TFT LCD Display |
||
| Basic Info : | Panel Brand | Panel Model | TM035PDHG03 | |
|---|---|---|---|---|
| Diagonal Size | 3.5" | Application |
|
|
| Panel Type | a-Si TFT-LCD , LCM | Model Alias | - | |
| Reliability : | Operating Temp. | -20 ~ 70 °C | Storage Temp. | -30 ~ 80 °C |
| RoHS State | Vibration Rating | - | ||
| Specific Features : |
|
|||
| Remarks : | left side FPC (10.5mm length) | |||
| Pixel Features : | Pixel Format | 320(RGB)×480 [HVGA] | Dot Pitch | 0.051×0.153 mm (H×V) |
|---|---|---|---|---|
| Configuration | RGB Vertical Stripe | Pixel Pitch | 0.153×0.153 mm (H×V) [166PPI] | |
| Mechanical Size : | Display Area | 48.96×73.44 mm (H×V) | Bezel Area | 49.96×74.44 mm (H×V) |
| Outline Dim. | 55.26×84.69 mm (H×V) | Outline Depth | 2.2±0.1 mm | |
| Outline Features : | Form Factor | Flat Rectangle | Orientation | Portrait type |
| Aspect Ratio | 2:3 (H:V) | Shape Style | ||
| Other Features : | Weight | 21.0g (Typ.) | Surface | Hard coating |
| Basic Information : | Brightness | 300 cd/m² (Typ.) | Contrast Ratio | 500:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 70/70/70/60 (Typ.)(CR≥10) | Optical Mode | TN, Normally White, Transmissive | |
| Viewing Direction | 6 o'clock | Response Time | 25 (Typ.)(Tr+Td) (ms) | |
| Color Performance : | Chromaticity | Wx:0.286; Wy:0.304 | Color Numbers | 65K/262K |
| Color Temperature | 8774K | White Uniformity | 1.25 (Typ.)(9 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 61% | sRGB | 83% coverage |
| Adobe RGB | 64% coverage | DCI-P3 | 64% coverage | |
| Rec.2020 | 46% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Frame Frequency : | 60Hz |
|---|---|
| Reverse Scan : | No |
| D-IC Detail : | Built-in ILI9488 |
| Back-light Features: | Lamp Shape | Parallel | Lamp Type | WLED | Life Time | 30K(Min.) (Hours) |
|---|---|---|---|---|---|---|
| Replacement | - | Amount | 1S6P | Position | Edge light type | |
| Lamp Electrical : | Voltage Input | 3.2V (Typ.) | Current Input | 20mA (Typ.) | ||
| Consumption | 384mW (Typ.) | |||||
| Interface Features : | Type | Included in panel signal interface | Position | - | Lamp Driver | No |
| Signal Systerm : | CPU/RGB/SPI | Logic Voltage | 0≤VIL≤0.3IOVCC; 0.7IOVCC≤VIL≤IOVCC | |||
|---|---|---|---|---|---|---|
| Signal Electrical : | Voltage Input | 1.8/2.8V (Typ.)(IOVCC/VCI) | Current Input | - | ||
| Consumption | 34.2mW (Typ.) | |||||
| Interface Features : | Type | FPC | Position | - | ||
| FPC Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| 0.3 mm | 45 pins | 1 pcs | ||||
| Package Carton : | Amount | Net Weight | Carton Size (L×W×H) |
|---|---|---|---|
| 324 pcs / box | 12.45±0.62 Kgs | 544×365×250 mm |
