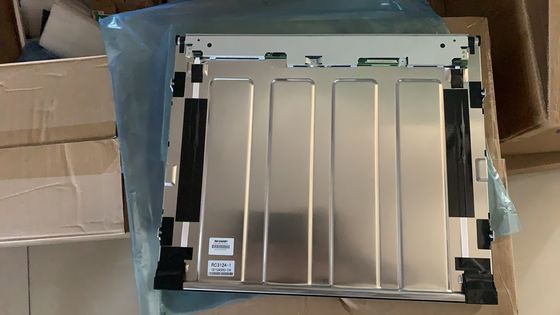

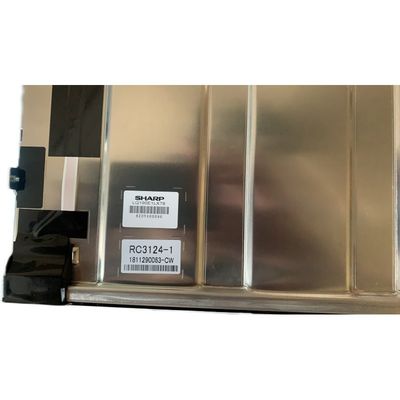

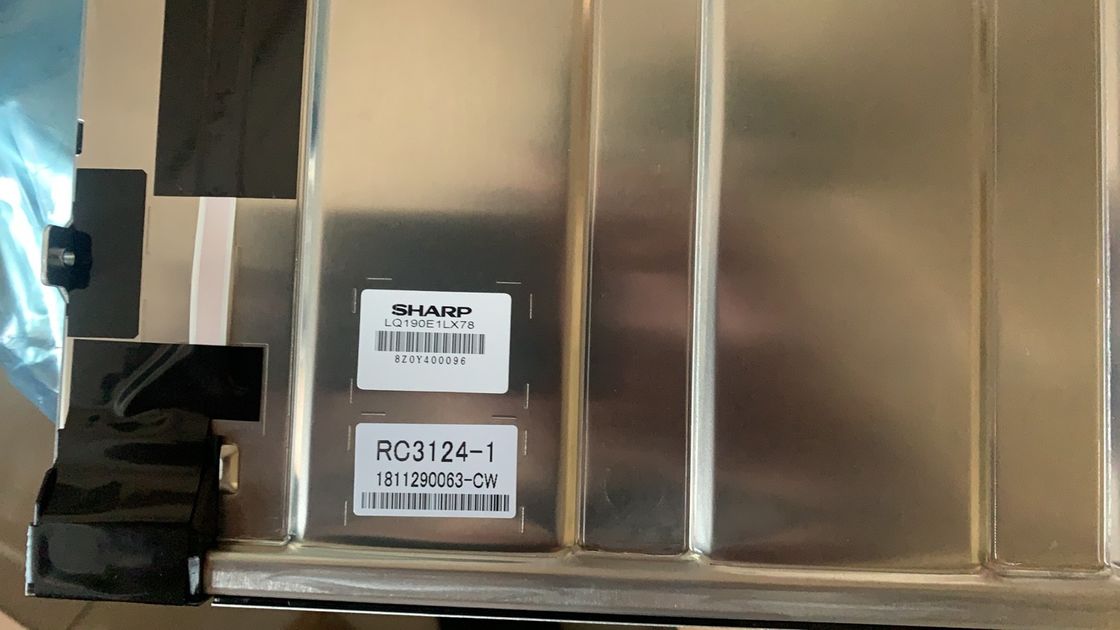

Product Details:
|
| Panel Model: | LQ190E1LX78 | Panel Size: | 19" |
|---|---|---|---|
| Resolution: | 1280(RGB)×1024, SXGA, 86PPI | Brightness: | 1200 Cd/m² (Typ.) |
| Viewing Angle: | 85/85/85/85 (Typ.)(CR≥10) | Lamp Type: | WLED , 60K Hours , With LED Driver |
| Signal Interface: | LVDS (2 Ch, 8-bit) , 30 Pins Connector | Environment: | Operating Temp.: -20 ~ 65 °C ; Storage Temp.: -25 ~ 70 °C |
| Highlight: | LVDS TFT LCD Display,CCFL Sharp TFT LCD Display |
||
LQ190 Series LQ190E1LX78 LQ190E1LX75T LQ190E1LX75 LQ190E1LX65
| Basic Information : | Brand | Model | Type | Model Alias |
|---|---|---|---|---|
| SHARP | LQ190E1LX78 | a-Si TFT-LCD , LCM | - | |
| Reliability : | RoHS | Operating Temperature | Storage Temperature | Vibration Resistance |
| -20 ~ 65 °C | -25 ~ 70 °C | - | ||
| Designed For : |
|
|||
| Panel Size : | 19.0 inch | |||
|---|---|---|---|---|
| Pixel Features : | Resolution | Pixel Arrangement | Dot Pitch (W×H) | Pixel Pitch (W×H) |
| 1280(RGB)×1024, SXGA | RGB Vertical Stripe | 0.098×0.294 mm | 0.294×0.294 mm [86PPI] | |
| Mechanical Size : | Active Area (W×H) | Bezel Area (W×H) | Outline Dimension (W×H) | Outline Depth |
| 376.32×301.056 mm | 380.65×306.5 mm | 398.1×329.5 mm | 18.5 (Max.) mm | |
| Outline Features : | Form Style | Aspect Ratio | Orientation | Shape Style |
| Flat Rectangle | 5:4 (W : H) | Landscape type | ||
| Fixation : | Side mounting holes (4-M3) on left, right bezel | |||
| Other Features : | Panel Cover | Weight | Surface | |
| - | 2.30Kgs (Max.) | Antiglare (Haze 3%), Hard coating (3H) | ||
| Basic Information : | Brightness | Operating Mode | Contrast Ratio |
|---|---|---|---|
| 1200 cd/m² (Typ.) | ASV, Normally Black, Transmissive | 1500:1 (Typ.) (Transmissive) | |
| Viewing Angle(L/R/U/D) | Viewing Direction | Response Speed | |
| 85/85/85/85 (Typ.)(CR≥10) | Symmetry | 35 (Typ.)(Tr+Td) (ms) | |
| Dispaly Color : | Color Temperature | Color Amount | White color Chromaticity |
| 6485K | 16.7M (8-bit) | X:0.313; Y:0.329 | |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 78% | 100% | 78% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 81% | 58% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| Luminance Variation : | 1.43 (Max.)(5 points) | ||
| Performance : | 3D Type | Outdoor Visibility | Reflectance |
| - | Sunlight Readable | - | |
| Frame Rate : | 60Hz |
|---|---|
| Reverse Scan : | No |
| Signal Electrical : | Current Input | Voltage Input | Consumption | |||
|---|---|---|---|---|---|---|
| 0.55/1.00A (Typ./Max.) | 5.0V (Typ.) | - | ||||
| Interface Features : | Position | Type | Interface | |||
| Connector | LVDS (2 ch, 8-bit) | |||||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| JAE | FI-XB30SSRLA-HF16 | 1 pcs | 1.0 mm | 30 pins | LVDS-30P2C8B-200A | |
| Backlight Features: | Type | Position | Shape | Amount | Life(Hours) | Replacement |
|---|---|---|---|---|---|---|
| WLED | Edge light type | - | - | 60K(Typ.) | No | |
| Interface Features : | Position | Type | WLED Driver | |||
| - | Connector | With LED Driver | ||||
| Interface Detail | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| 1 pcs | 10 pins | |||||
| Driver Electrical : | Current Input | Voltage Input | Consumption | |||
| 2.55/3.2A (Typ./Max.) | 12.0±1.2V | - | ||||
