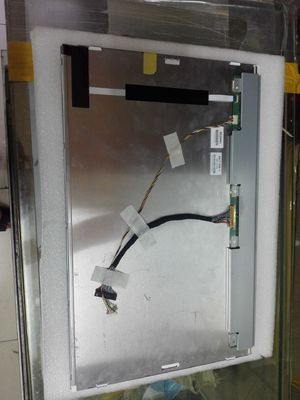

Product Details:
|
| Panel Size: | 19" | Resolution: | 1680(RGB)×1050, WSXGA+, 104PPI |
|---|---|---|---|
| Model: | LQ190N1LW01 | Outline Size: | 444(W)×283.3(H) ×16(D) Mm |
| Bezel Opening: | 413.9(W)×260.3(H) Mm | Brightness: | 300 Cd/m² (Typ.) |
| Viewing Angle: | 85/85/85/85 (Typ.)(CR≥10) | Lamp Type: | WLED , 70K Hours , With LED Driver |
| Signal Interface: | LVDS (2 Ch, 8-bit) , 30 Pins Connector | Environment: | Operating Temp.: 0 ~ 60 °C ; Storage Temp.: -20 ~ 60 °C |
| High Light: | LVDS TFT LCD Display,CCFL Sharp TFT LCD Display |
||
| Basic Information : | Brand | Model | Type | Model Alias |
|---|---|---|---|---|
| SHARP | LQ190N1LW01 | a-Si TFT-LCD , LCM | - | |
| Reliability : | RoHS | Operating Temperature | Storage Temperature | Vibration Resistance |
| 0 ~ 60 °C | -20 ~ 60 °C | - |
| Panel Size : | 19.0 inch | |||
|---|---|---|---|---|
| Pixel Features : | Resolution | Pixel Arrangement | Dot Pitch (W×H) | Pixel Pitch (W×H) |
| 1680(RGB)×1050, WSXGA+ | RGB Vertical Stripe | 0.08125×0.24375 mm | 0.24375×0.24375 mm [104PPI] | |
| Mechanical Size : | Active Area (W×H) | Bezel Area (W×H) | Outline Dimension (W×H) | Outline Depth |
| 409.5×255.94 mm | 413.9×260.3 mm | 444×283.3 mm | 15.5±0.5 mm | |
| Outline Features : | Form Style | Aspect Ratio | Orientation | Shape Style |
| Flat Rectangle | 16:10 (W : H) | Landscape type | ||
| Fixation : | Side mounting holes (4-M3) on left, right bezel | |||
| Other Features : | Panel Cover | Weight | Surface | |
| - | 1.60Kgs (Max.) | Antiglare, Hard coating (3H) | ||
| Basic Information : | Brightness | Operating Mode | Contrast Ratio |
|---|---|---|---|
| 300 cd/m² (Typ.) | VA, Normally Black, Transmissive | 900:1 (Typ.) (Transmissive) | |
| Viewing Angle(L/R/U/D) | Viewing Direction | Response Speed | |
| 85/85/85/85 (Typ.)(CR≥10) | Symmetry | 35 (Typ.)(Tr+Td) (ms) | |
| Dispaly Color : | Color Temperature | Color Amount | White color Chromaticity |
| 7351K | 16.7M (8-bit) | X:0.300; Y:0.320 | |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 71% | 90% | 73% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 73% | 53% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| Luminance Variation : | 1.43 (Max.)(5 points) | ||
| Power Consumption : | 20.2W |
|---|---|
| Frame Rate : | 60Hz |
| Reverse Scan : | No |
| Signal Electrical : | Current Input | Voltage Input | Consumption | |||
|---|---|---|---|---|---|---|
| 280/660mA (Typ./Max.) | 12.0V (Typ.) | - | ||||
| Interface Features : | Position | Type | Interface | |||
| Connector | LVDS (2 ch, 8-bit) | |||||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| HRS | MDF76GW-30S-1H | 1 pcs | 1.0 mm | 30 pins | LVDS-30P2C8B-160A | |
| Backlight Features: | Type | Position | Shape | Amount | Life(Hours) | Replacement |
|---|---|---|---|---|---|---|
| WLED | Edge light type | - | - | 70K(Typ.) | Replaceable | |
| Interface Features : | Position | Type | WLED Driver | |||
| - | Connector | With LED Driver | ||||
| Interface Detail | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| JST | SM10B-SHLS-TF | 1 pcs | 1.0 mm | 10 pins | ||
| Driver Electrical : | Current Input | Voltage Input | Consumption | |||
| 1.4/1.9A (Typ./Max.) | 12.0±1.2V | - | ||||
