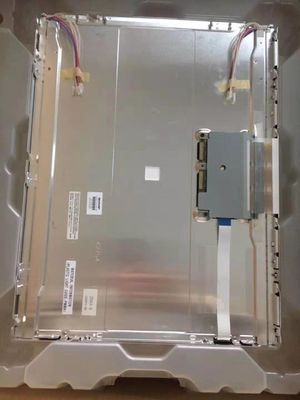

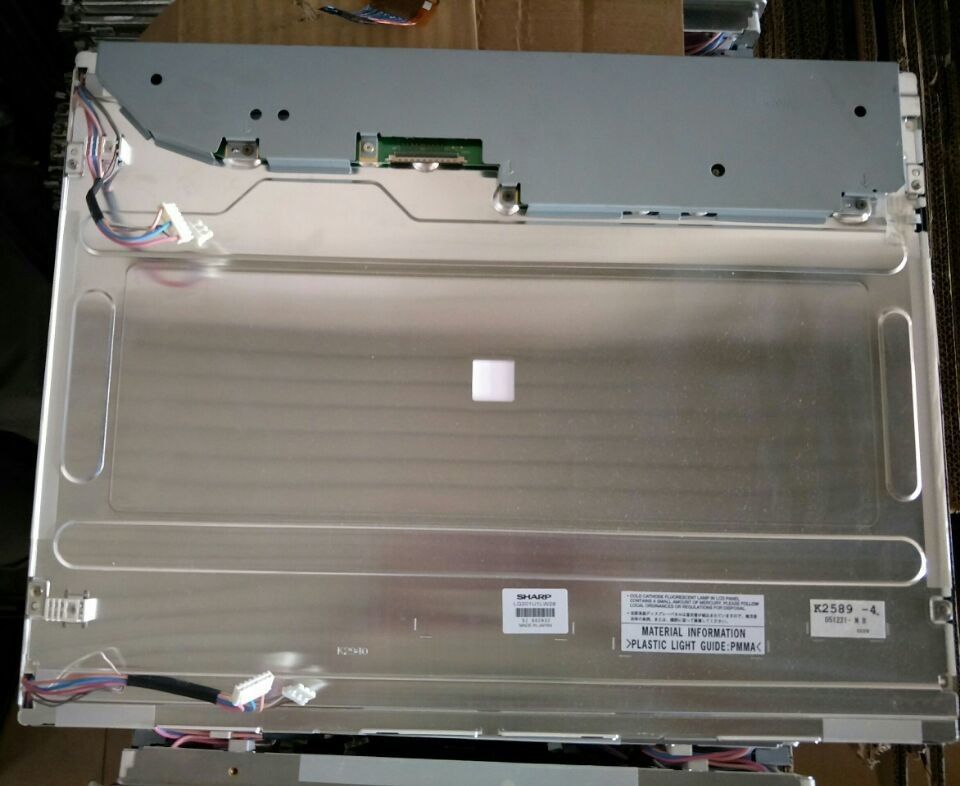

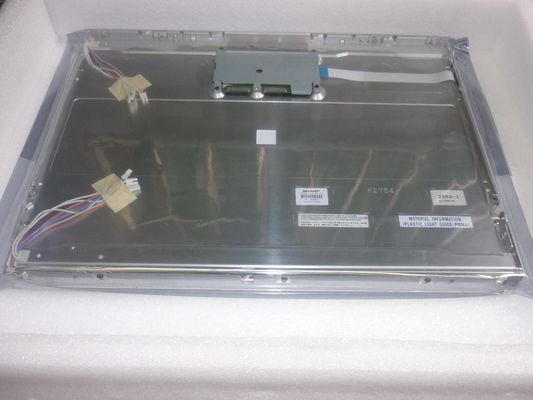

Product Details:
|
| Manufacturer: | Sharp | Screen Size: | 20.1" |
|---|---|---|---|
| Model Name: | LQ201U1LW01 | Pixel Number: | 1600×1200RGB |
| Viewing Angle: | 85/85/85/85 (Typ.)(CR≥10) | Backlight: | 6 Pcs CCFL , 50K Hours , No Driver |
| Signal Type: | LVDS (2 Ch, 8-bit) , 40 Pins Connector | Max. Ratings: | Storage Temp.: -25 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| Highlight: | LVDS TFT LCD Display,CCFL Sharp TFT LCD Display |
||
LQ201 Series LQ201U1LW32 LQ201U1LW31 LQ201U1LW18 LQ201U1LW11Z LQ201U1LW11 LQ201U1LW01
Sharp LQ201U1LW01 Mechanical Features
| Screen Size : | 20.1" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Number | Pixel Format | Dot Pitch (H×V) | Pixel Pitch (H×V) |
| 1600(RGB)×1200, UXGA | RGB Vertical Stripe | 0.085×0.255 mm | 0.255×0.255 mm [99PPI] | |
| Mechanical Size : | Display Area (H×V) | Bezel Opening (H×V) | Overall Dimension (H×V) | Overall Depth |
| 408×306 mm | 413.2×311.2 mm | 436×335 mm | 27.5±0.8 mm | |
| Outline Features : | Form Shape | Aspect Ratio (H:V) | Orientation | Shape Style |
| Flat Rectangle | 4:3 | Landscape type | Normal bezel | |
| Other Spec : | Mass | Panel Cover | Surface Treatment | |
| 3.80Kgs (Max.) | - | Antiglare, Hard coating (2H) | ||
| Holes & Brackets : | Side mounting holes (8-M2) | |||
| Basic Information : | Luminance | Work Mode | Contrast Ratio |
|---|---|---|---|
| 220 cd/m² (Typ.) | ASV, Normally Black, Transmissive | 350:1 (Typ.) (Transmissive) | |
| Good View at | Viewing Angle | Response Time | |
| Symmetry | 85/85/85/85 (Typ.)(CR≥10) | 5/20 (Typ.)(Tr/Td) (ms) | |
| Dispaly Color : | Color Temperature: | Support Color | Color Coordinate |
| 6485K | 16.2M (6-bit + FRC) | X:0.313; Y:0.329 | |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 69% | 90% | 72% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 72% | 52% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| White Uniformity : | 1.25 (Max.)(5 points) | ||
| Refresh Rate : | 60Hz |
|---|---|
| Reverse Scan : | No |
| Back-light Features: | Type | Position | Life(Hours) | Amount | Shape | Replacement |
|---|---|---|---|---|---|---|
| CCFL | Edge light type (Top and Bottom) | 50K(Min.) | 6 pcs | Straight | - | |
| CCFL Electrical : | Input Voltage | Input Current | Power Consumption | |||
| 790V (Typ.) | 3.0/6.0/6.5mA (Min./Typ./Max.) | 28.2W (Typ.) | ||||
| Operating Frequency | Startup Voltage | |||||
| 30/60/70KHz (Min./Typ./Max.) | 1500/2000V (Max.)(Ta=+25/0℃) | |||||
| Interface Features : | CCFL Driver State | Physical Type | Interface Position | |||
| No | Connector | - | ||||
| Interface Detail | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
| JST | BHSR-02VS-1 | 6 pcs | 2 pins | 3.5 mm | BLL-2PINS-HL | |
| Signal Electrical : | Input Voltage | Input Current | Power Consumption | |||
|---|---|---|---|---|---|---|
| 12.0V (Typ.) | 390/600mA (Typ./Max.) | - | ||||
| Interface Features : | Signal Type | Physical Type | Interface Position | |||
| LVDS (2 ch, 8-bit) | Connector | - | ||||
| Interface Detail : | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
| HRS | DF19G-20P-1H | 2 pcs | 20 pins | 1.0 mm | LVDS-40P2C8B-030A | |
LQ201U1LW01 supports display 1600(RGB)×1200 (UXGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 408(W)×306(H) mm, outline size of 436(W)×335(H)×28.3(D) mm, viewing area size of 413.2(W)×311.2(H) mm, with surface treament of Antiglare, Hard coating (2H), net weight of 3.80Kgs (Max.). As a ASV, Normally Black, Transmissive LCM product, LQ201U1LW01 can provides 220 cd/m² display brightness 350:1 transimissive contrast
ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 5/20 (Typ.)
