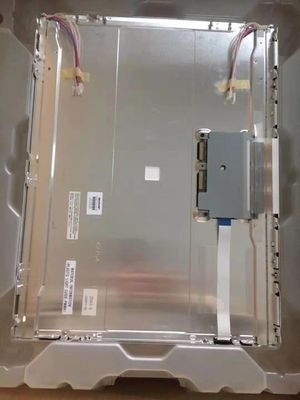

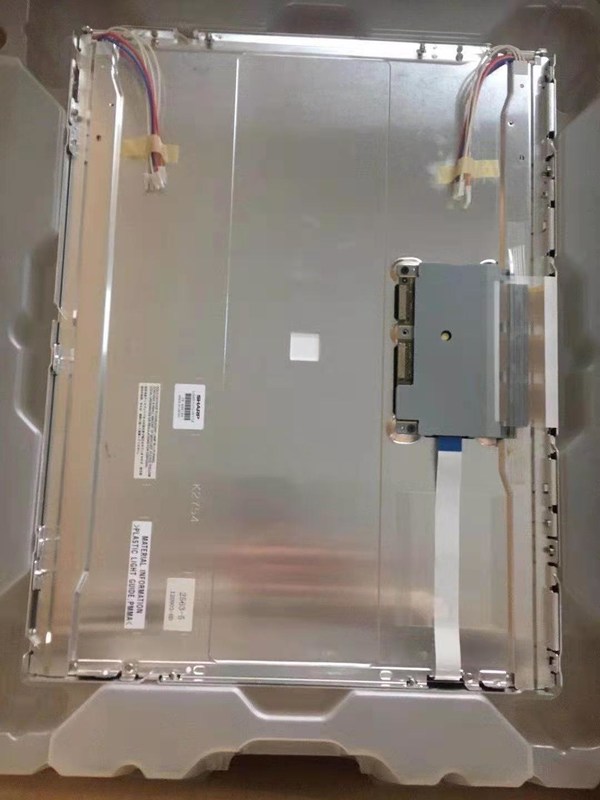

20.1" LCM 1600×1200RGB  700cd/m² LQ201U1LW11 Sharp TFT LCD Display

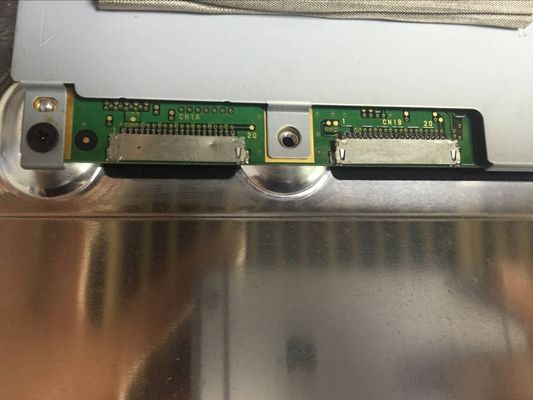

LQ201U1LW11 supports display 1600(LCR)×1200 (UXGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in LCR Vertical Stripe. As for mechanical detail, it features active area of 408(W)×306(H) mm, outline size of 436(W)×335(H) mm, viewing area size of 413.2(W)×311.2(H) mm, with surface treament of Antiglare, Hard coating (2H), net weight of 3.80Kgs (Max.). As a ASV, Normally Black, Transmissive LCM product, LQ201U1LW11 can provides 700 cd/m² display brightness 1000:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 5/20 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of Grayscale colors. This product adopted 6 pcs CCFL as it's backlight systerm which was placed as Edge light type (Top and Bottom) and have a working life time of 50K hours, external backlight driver is additionally needed. LQ201U1LW11 utilizes LVDS (2 ch, 8-bit) as it's signal inputting systerm, which connected by 40 pins Connector with power supply voltage of 12.0V (Typ.).
