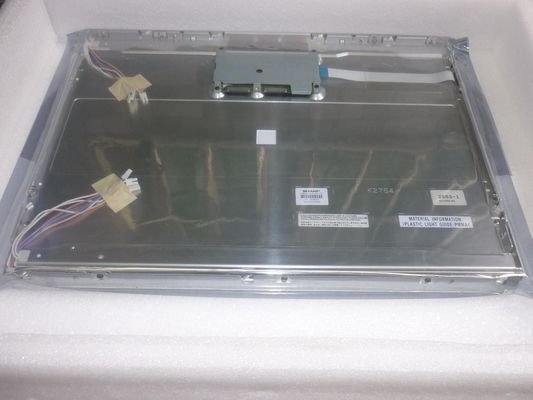

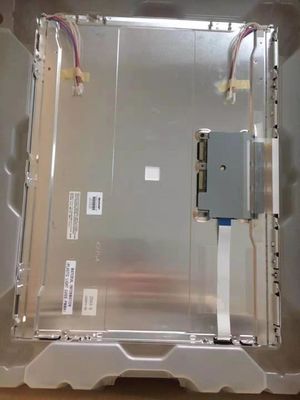

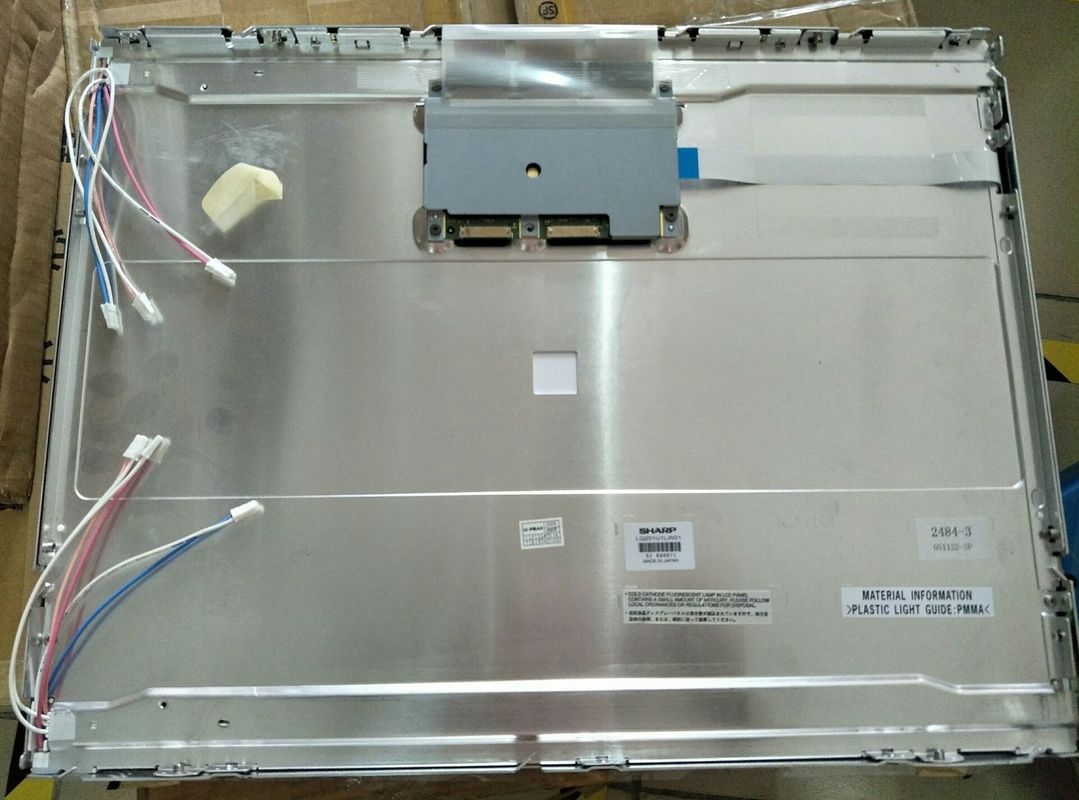

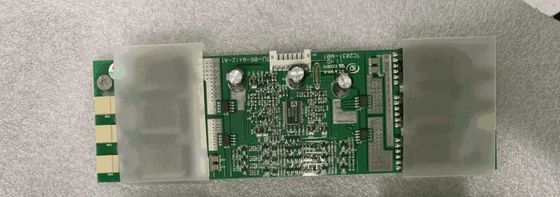

Product Details:
|
| Size: | 20.1" | Model Name: | LQ201U1LW11Z |
|---|---|---|---|
| Pixel Number: | 1600(LCR)×1200 (UXGA) 99PPI | Active Area(mm): | 408 × 306 (H×V) |
| Bezel Area(mm): | 413.2 × 311.2 (H×V) | Backlight: | 6 Pcs CCFL , 50K Hours , No Driver |
| Luminance: | 700 Cd/m² (Typ.) | Viewing Angle: | 85/85/85/85 (Typ.)(CR≥10) |
| Signal Type: | LVDS (2 Ch, 8-bit) , 40 Pins Connector | Max. Ratings: | Storage Temp.: -25 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| Highlight: | LVDS TFT LCD Display,CCFL Sharp TFT LCD Display |
||
LQ201 Series LQ201U1LW32 LQ201U1LW31 LQ201U1LW18 LQ201U1LW11Z LQ201U1LW11 LQ201U1LW01
| Basic Detail : | Manufacturer | SHARP | Model Name | LQ201U1LW11Z |
|---|---|---|---|---|
| Panel Type | a-Si TFT-LCD , LCM | Another Name | - | |
| Panel Size | 20.1 inch | Designed For | ||
| Maximum Ratings : | OP Temperature | 0 ~ 50 °C | ST Temperature | -25 ~ 60 °C |
| Vibration Level | - | RoHS |
| Basic Information : | Luminance | 700 cd/m² (Typ.) | Contrast Ratio | 1000 : 1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Good View at | Symmetry | Response Speed | 5/20 (Typ.)(Tr/Td) (ms) | |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) | Operating Mode | ASV, Normally Black, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.294; Wy:0.309 | Support Color | Grayscale (8-bit) |
| Color Temperature | 7984K | White Uniformity | 1.25 (Max.)(5 points) | |
| Dispaly Performance : | Outdoor Visibility | Sunlight Readable | Transmissivity | - |
| Pixel Features : | Number of Pixel | 1600(LCR)×1200 [UXGA] | Arrangement | LCR Vertical Stripe |
|---|---|---|---|---|
| Dot Pitch(W×H) | 0.085×0.255 mm | Pixel Pitch(W×H) | 0.255×0.255 mm [99PPI] | |
| Physical Size : | Active Viewing | 408(W)×306(H) mm | Overall Dim. | 436(W)×335(H) mm |
| Bezel Opening | 413.2(W)×311.2(H) mm | Overall Depth | 27.5 (Typ.) mm | |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio(W:H) | 4:3 | Shape Style | ||
| Fixation : | Side mounting holes (8-M3) | |||
| Other Detail : | Mass | 3.80Kgs (Max.) | Surface | Antiglare, Hard coating (2H) |
| Refresh Rate : | 60Hz |
|---|---|
| Reverse Scan : | No |
| Power Consumption : | 32.9W |
| Signal Electrical : | Input Current | 390mA (Typ.) | Input Voltage | 12.0V (Typ.) | ||
|---|---|---|---|---|---|---|
| Consumption | - | Signal Interface | LVDS (2 ch, 8-bit) | |||
| Interface Features : | Position | - | Physical Type | Connector | ||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| HRS | DF19G-20P-1H | 2 pcs | 1.0 mm | 20 pins | LVDS-40P2C8B-030A | |
| Lamp Features: | Lamp Shape | Straight | Lamp Type | CCFL | Position | Edge light type (Top and Bottom) |
|---|---|---|---|---|---|---|
| Exchange | - | Amount | 6 pcs | Life | 50K(Min.) (Hours) | |
| Lamp Electrical : | Input Current | 3.0/6.0/6.5mA (Min./Typ./Max.) | Input Voltage | 790V (Typ.) | ||
| Frequency | 30/60/70KHz (Min./Typ./Max.) | Turn-on Voltage | 1500/2000V (Max.)(Ta=+25/0℃) | |||
| Consumption | 28.2W (Typ.) | |||||
| Interface Features : | Position | - | Physical Type | Connector | ||
| Interface Detail : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| JST | BHSR-02VS-1 | 6 pcs | 3.5 mm | 2 pins | BLL-2PINS-HL | |
| Backlight Driver : | No | |||||
