Product Details:
|
| Screen Size: | 20.1" | Screen Type: | LCM, A-Si TFT-LCD |
|---|---|---|---|
| Pixel Number: | 1600(RGB)×1200 (UXGA) 99PPI | Active Area(mm): | 408 × 306 (H×V) |
| Bezel Area(mm): | 413.2 × 311.2 (H×V) | Backlight: | CCFL , 50K Hours |
| Outline(mm): | 436 × 355 (H×V×D) | Touchscreen: | Without |
| Highlight: | LVDS TFT LCD Display,CCFL Sharp TFT LCD Display |
||
| Basic Info : | Panel Brand | Panel Model | LQ201U1LW18 | |
|---|---|---|---|---|
| Diagonal Size | 20.1" | Application | ||
| Panel Type | a-Si TFT-LCD , LCM | Model Alias |
| Screen Size : | 20.1" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Number | Pixel Format | Dot Pitch (H×V) | Pixel Pitch (H×V) |
| 1600(RGB)×1200, UXGA | RGB Vertical Stripe | 0.085×0.255 mm | 0.255×0.255 mm [99PPI] | |
| Mechanical Size : | Display Area (H×V) | Bezel Opening (H×V) | Overall Dimension (H×V) | Overall Depth |
| 408×306 mm | 413.2×311.2 mm | 436×355 mm | 27.5 mm | |
| Outline Features : | Form Shape | Aspect Ratio (H:V) | Orientation | Shape Style |
| Flat Rectangle | 4:3 | Landscape type | ||
| Other Spec : | Mass | Panel Cover | Surface Treatment | |
| 3.80Kgs | - | - | ||
| Basic Information : | Luminance | Work Mode | Contrast Ratio |
|---|---|---|---|
| 700 cd/m² (Typ.) | P-MVA, Normally Black, Transmissive | 1000:1 (Typ.) (Transmissive) | |
| Good View at | Viewing Angle | Response Time | |
| Symmetry | 85/85/85/85 (Typ.)(CR≥10) | 25 (Typ.)(Tr+Td) (ms) | |
| Dispaly Color : | Color Temperature: | Support Color | Color Coordinate |
| - | 16.7M (8-bit) | - | |
| Performance : | 3D Technology | Outdoor Visibility | Reflectance |
| - | Sunlight Readable | - |
| Power Consumption : | 33W |
|---|

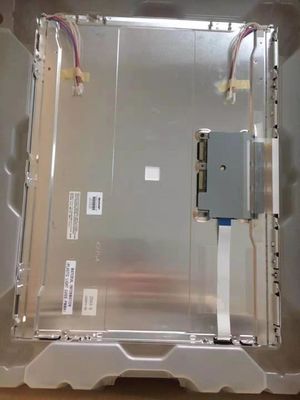

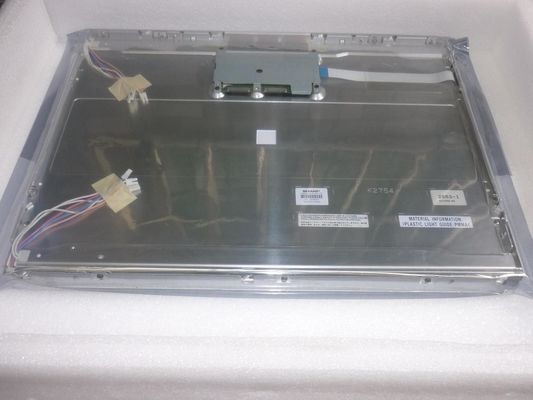

Sharp Corporation (hereafter called Sharp) LQ201U1LW18 is a 20.1 inch diagonal a-Si TFT-LCD display screen product, with an incorporated CCFL lighting system, without touch screen. LQ201U1LW18 supports display 1600(RGB)×1200 (UXGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 408(W)×306(H) mm, outline size of 436(W)×355(H) mm, viewing area size of 413.2(W)×311.2(H) mm, net weight of 3.80Kgs. As a P-MVA, Normally Black, Transmissive LCM product, LQ201U1LW18 can provides 700 cd/m² display brightness 1000:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 25 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors. This product adopted CCFL as it's backlight systerm and have a working life time of 50K hours.
