7.0" RGB 1024×600 270nits Tianma LCD Display TM070DVHG01 75/75/70/75 (Typ.)(CR≥10)

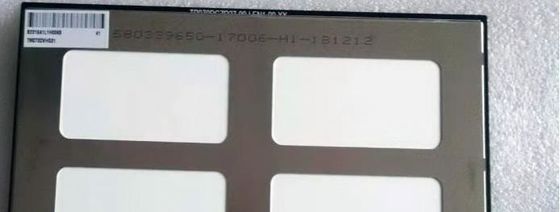

Large Image : 7.0" RGB 1024×600 270nits Tianma LCD Display TM070DVHG01 75/75/70/75 (Typ.)(CR≥10)

Product Details:

Place of Origin:	JAPAN
Brand Name:	TIANMA
Certification:	ISO9001
Model Number:	TM070DVHG01

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Packaging Details:	STANDARD PACKING
Delivery Time:	1-2 DAYS
Payment Terms:	TT/PAYPAL/ESCROW/WESTERN UNION
Supply Ability:	600PCS

Contact Now

7.0" RGB 1024×600 270nits Tianma LCD Display TM070DVHG01 75/75/70/75 (Typ.)(CR≥10)

Description

MODEL NUMBER:	TM070DVHG01	BRAND:	TIANMA
SIZE:	7.0"inch	RESOLUTION:	1024(RGB)×600 [WSVGA] 169PPI
BRIGHTNESS:	270 Cd/m² (Typ.)	Viewing Angle:	75/75/70/75 (Typ.)(CR≥10)
TEMPERATURE RANGE:	Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C
Highlight:	RGB 1024×600 Tianma LCD Display , 270nits Tianma LCD Display , WSVGA 169PPI Tianma LCD Panel

TIANMA TM070DVHG01 Application Details

Basic Information :	Brand Model TM070DVHG01 Type a-Si TFT-LCD , LCM Used For Screen Size 7.0 inch Alias -
Environment :	Storage Temp. -30 ~ 80 °C Operating Temp. -20 ~ 70 °C RoHS Vibration -
Typical Features :

TIANMA TM070DVHG01 Mechanical Details

Pixel Features :	Resolution 1024(RGB)×600, WSVGA Dot Pitch(mm) 0.050×0.150 (H×V) Pixel Format RGB Vertical Stripe Pixel Pitch(mm) 0.150×0.150 (H×V) [169PPI]
Mechanical Size :	Active Area(mm) 153.6(H) × 90(V) Bezel Area(mm) - Outline Dim.(mm) 171.5(H) × 110.3(V) Depth(mm) 5.05±03
Outline Features :	Form Style Flat Rectangle Shape Style Aspect Ratio 17:10 (H:V) Orientation Landscape type
Touch Panel :	Touch Points 2 points Touch Panel PCAP TP Controller With touch controller Touch Signal I²C
Mounting :	Without
Other Spec :	Weight - Treatment - Panel Cover With Cover Lens

TIANMA TM070DVHG01 Optical Details

Basic Information :	Luminance(cd/m²) 270 (Typ.) Contrast Ratio 500:1 (Typ.) (Transmissive) Viewing Angle 75/75/70/75 (Typ.)(CR≥10) Display Mode TN, Normally White, Transmissive Best View on 12 o'clock Response(ms) 20 (Typ.)(Tr+Td)
Color Performance :	White Coordinate Wx:0.310; Wy:0.330 Display Colors 16.7M (8-bit) Color Temperature 6638K White Uniformity 1.33/1.43 (Typ./Max.)(9 points)
1931 Color Gamlt :	NTSC Ratio 51% sRGB 71% coverage Adobe RGB 54% coverage DCI-P3 53% coverage Rec.2020 38% coverage Remarks sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

TIANMA TM070DVHG01 Electronics Details

Frame Rate :	60Hz
Reverse Scan :	Yes (U/D, L/R)
Driver IC :	COG Built-in HX8282, HX8667

TIANMA TM070DVHG01 Interface Detail

Signal Electrical :	Voltage Supply 3.3/11.0/16.0/-6.8V (Typ.)(VDD/AVDD/VGH/VGL) Current Supply -
Signal Type :	LVDS (1 ch, 8-bit) Logic Voltage -
Interface Features :	Position - Type FPC
Interface Detail :	Brand Model Pitch Pins Quantity Pin Configuration 0.5 mm 40 pins 1 pcs

TIANMA TM070DVHG01 Backlight Details

Backlight Features :	Type WLED Quantity 3S6P Position Edge light type Replacement - Shape Array Life Time 20K(Typ.) (Hours)
Lamp Electrical :	Voltage Supply 9.3V (Typ.) Current Supply 120mA (Typ.)
Interface Features :	Position - Type Included in panel signal interface
Backlight Driver :	No

TIANMA TM070DVHG01 Packing Details

Package Box :	Quantity	Weight	Box Size
Package Box :	56 pcs / box	-	530×430×274 mm (L×W×H)

FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
