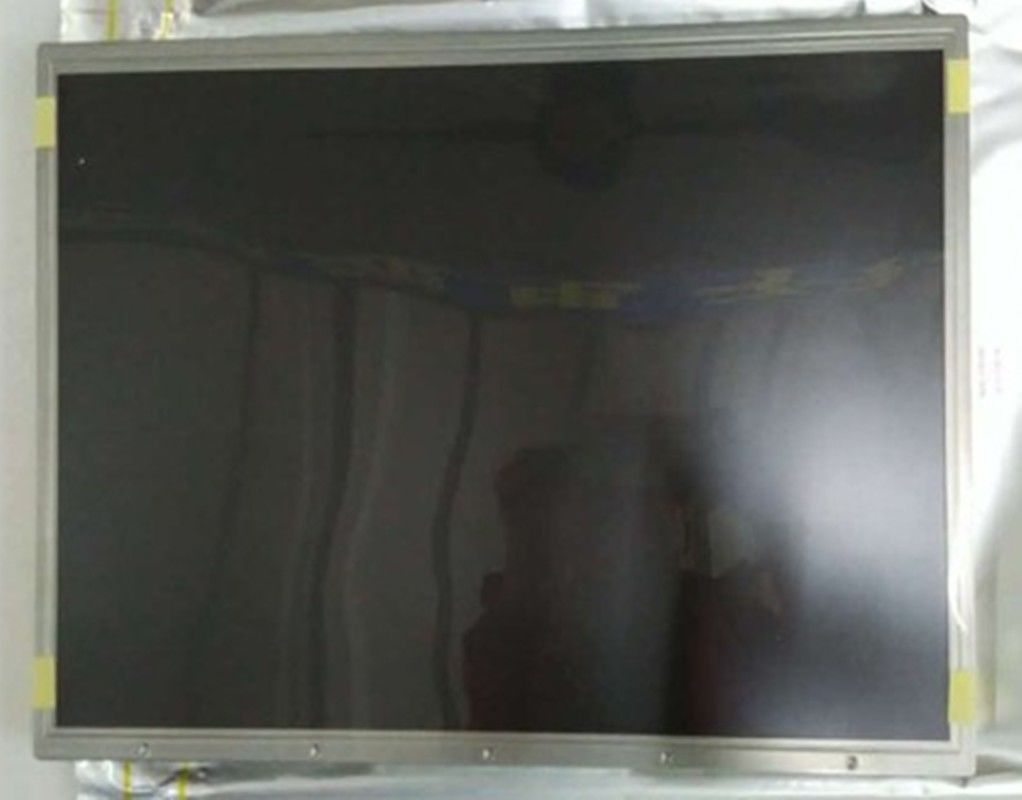

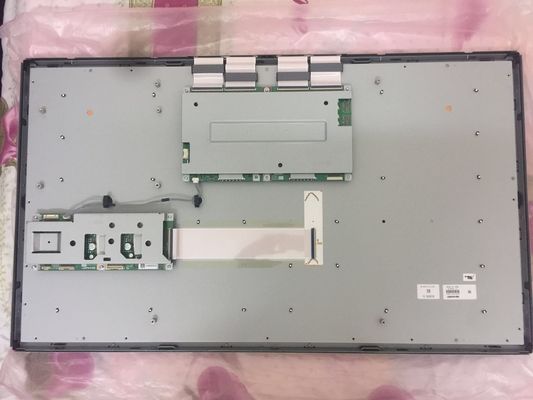

Product Details:
|
| Panel Model: | LQ315D1JG95 | Size: | 32.0" |
|---|---|---|---|
| Resolution: | 3840(RGB)×2160, UHD, 139PPI | Panel Type: | Oxide TFT-LCD , LCM |
| Display Mode: | ASV, Normally Black, Transmissive | Lamp Type: | 4 Strings WLED , 30K Hours , Without Driver |
| Touch Screen: | Without | Brightness: | 350cd/m² |
| Viewing Angle: | 89/89/89/89 (Typ.)(CR≥10) | Environment: | Operating Temp.: 0 ~ 40 °C ; Storage Temp.: -25 ~ 60 °C |
| Highlight: | LVDS TFT LCD Display,CCFL Sharp TFT LCD Display |
||
LQ315 SeriesLQ315D1LG9A LQ315D1LG91 LQ315D1JG95 LQ315D1JG03
| Basic Information : | Manufacturer | Panel Model | Panel Type | Alias |
|---|---|---|---|---|
| SHARP | LQ315D1JG95 | Oxide TFT-LCD , LCM | - | |
| Environment : | RoHS State | Operating Temp. | Storage Temp. | Vibration Level |
| 0 ~ 40 °C | -25 ~ 60 °C | - |
| Basic Information : | Luminance (cd/m²) | Viewing Angle (L/R/U/D) | Response Time (ms) |
|---|---|---|---|
| 350 (Typ.) | 89/89/89/89 (Typ.)(CR≥10) | 8 (Typ.)(G to G) | |
| Best View on | Display Mode | Contrast Ratio | |
| Symmetry | ASV, Normally Black, Transmissive | 1000 : 1 (Typ.) (Transmissive) | |
| Dispaly Color : | Color Temperature | Display Colors | White Coordinate |
| 6485K | 1.07B (10-bit) | X:0.313; Y:0.329 | |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 96% | 100% | 100% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 88% | 71% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| White Variation : | 1.33 (Max.)(9 points) | ||
| Panel Size : | 32.0" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Format | Pixel Configuration | Pixel Pitch (mm) | Dot Pitch (mm) |
| 3840(RGB)×2160 [UHD] | RGB Vertical Stripe | 0.18175×0.18715 [139PPI] | 0.06058×0.18715 | |
| Mechanical Size : | Active Area (mm) | Bezel Area (mm) | Outline Dimension (mm) | Outline Depth (mm) |
| 697.92(H) × 392.58(V) | 703(H) × 397.6(V) | 734.8(H) × 430(V) | 12.0/26.5 (Typ./Max.) mm | |
| Outline Features : | Form Factor | Orientation | Aspect Ratio | Shape Style |
| Flat Rectangle | Landscape type | 16:9 (H:V) | Normal bezel | |
| Other Detail : | Weight | Panel Cover | Treatment | |
| 5.80±0.20Kgs | - | Antiglare, Hard coating (3H) | ||
| Lamp Features: | Type | Position | Quantity | Shape | Life(Hours) | Lamp Exchange |
|---|---|---|---|---|---|---|
| WLED | Edge light type | 4 strings | 4 strings | 30K(Typ.) | - | |
| WLED Electrical : | Voltage Supply | Current Supply | Power | |||
| 125.4±9.9V | 60mA (Typ.) | |||||
| Interface Features : | Position | Backlight Driver | Type | |||
| - | No | Connector | ||||
| Interface Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
| E&T | H401K-D06N-12B | 2.0 mm | 6 pins | 1 pcs | BLE-6PINS-CACCAC | |
| Panel Driving Electrical : | Voltage Supply | Current Supply | Power | |||
|---|---|---|---|---|---|---|
| 12.0V (Typ.) | 1.25/2.5A (Typ./Max.) | - | ||||
| Interface Features : | Position | Signal | Type | |||
| - | V-by-One 8 lane | Connector | ||||
| Connector Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
| JAE | FI-RNE51SZ-HF-R1500 | 0.5 mm | 51 pins | 1 pcs | ||
