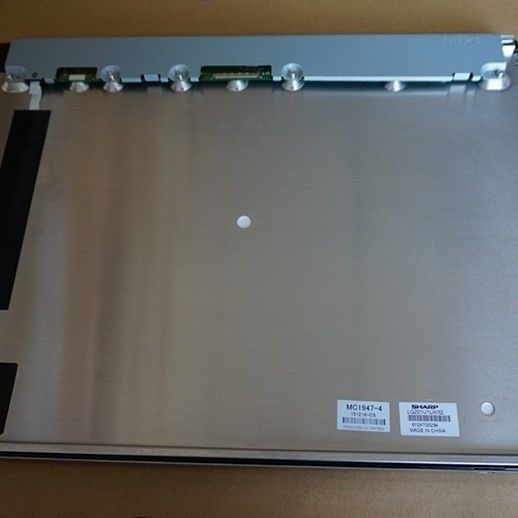

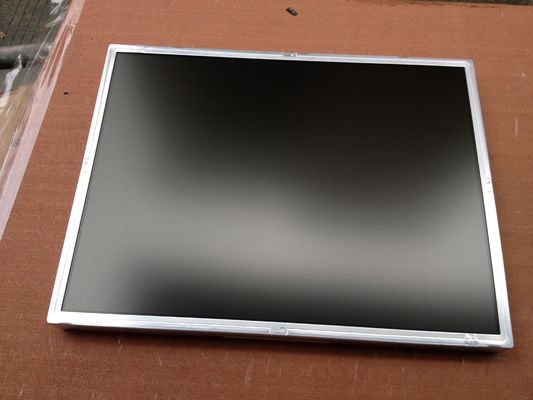

20.1" LCM 1600×1200RGB  1000cd/m² LQ201U1LW31 Sharp TFT LCD Display

20.1" LCM 1600×1200RGB  1000cd/m² LQ201U1LW31 Sharp TFT LCD Display
20.1" LCM 1600×1200RGB  1000cd/m² LQ201U1LW31 Sharp TFT LCD Display 20.1" LCM 1600×1200RGB  1000cd/m² LQ201U1LW31 Sharp TFT LCD Display 20.1" LCM 1600×1200RGB  1000cd/m² LQ201U1LW31 Sharp TFT LCD Display

Large Image :  20.1" LCM 1600×1200RGB  1000cd/m² LQ201U1LW31 Sharp TFT LCD Display

Product Details:
Place of Origin: JAPAN
Brand Name: Sharp
Certification: ISO9001
Model Number: LQ201U1LW31
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS

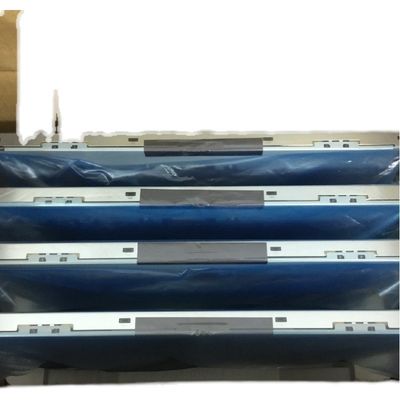

Packaging Details: 5 pcs / box 11.0 Kgs 518×301×430 mm
Delivery Time: 1-2DAYS
Payment Terms: TT/PAYPAL/ESCROW/WESTERN UNION
Supply Ability: 200PCS
Contact Now

20.1" LCM 1600×1200RGB  1000cd/m² LQ201U1LW31 Sharp TFT LCD Display

Description
Size: 20.1 " Model: LQ201U1LW31
Active Area: 408(H)×306(V) Mm Bezel Area: 413.2(H)×311.2(V) Mm
Pixel Format: 1600(LCR)×1200 [UXGA] 99PPI Luminance: 1000 Cd/m² (Typ.)
Light Source: WLED , 50K Hours , With LED Driver Environment: Operating Temperature: 0 ~ 60 °C ; Storage Temperature: -25 ~ 60 °C
Highlight:

LVDS TFT LCD Display

,

CCFL Sharp TFT LCD Display

LQ201 Series LQ201U1LW32 LQ201U1LW31 LQ201U1LW18 LQ201U1LW11Z LQ201U1LW11 LQ201U1LW01



Sharp LQ201U1LW31 Application Details

Basic Info :
Panel Brand
SHARP
LQ201U1LW31Panel Model
Diagonal Size
20.1"
Application

a-Si TFT-LCD , LCMPanel Type
Model Alias
-
Reliability :
Operating Temp.
0 ~ 60 °C
Storage Temp.
-25 ~ 60 °C
RoHS State

-Vibration Rating



Sharp LQ201U1LW31 Mechanical Details

Pixel Features :
Pixel Format
1600(LCR)×1200, UXGA
Dot Pitch
0.085×0.255 mm (H×V)
Configuration
LCR Vertical Stripe
Pixel Pitch
0.255×0.255 mm (H×V) [99PPI]
Mechanical Size :
Display Area
408×306 mm (H×V)
Bezel Area
413.2×311.2 mm (H×V)
Outline Dim.
436×335 mm (H×V)
Outline Depth
21.2 (Max.) mm
Outline Features :
Form Factor
Flat Rectangle
Orientation
Landscape type
Aspect Ratio
4:3 (H:V)
Shape Style

Holes & Brackets :
Side mounting holes (4-M3) on left, right bezel
Other Features :
Weight
2.40Kgs (Max.)
Surface
Antiglare, Hard coating (2H)



Sharp LQ201U1LW31 Optical Details

Basic Information :
Brightness
1000 cd/m² (Typ.)
Contrast Ratio
1400:1 (Typ.) (Transmissive)
Viewing Angle
85/85/85/85 (Typ.)(CR≥10)
Optical Mode
ASV, Normally Black, Transmissive
Viewing Direction
Symmetry
Response Time
30 (Typ.)(Tr+Td) ms
Color Performance :
Chromaticity
Wx:0.300; Wy:0.320
Color Numbers
Grayscale (8-bit)
Color Temperature
7351K
Uniformity
1.25 (Max.)(5 points)
Dispaly Performance :
Outdoor Visibility
Sunlight Readable
Transmittance
-



Sharp LQ201U1LW31 Backlight Details

Back-light Features :
Lamp Type
WLED
Amount
-
Life Time
50K(Typ.) (Hours)
Replacement
-
Lamp Shape
-
Position
Edge light type
Interface Features :
Type
Connector
Position
-
Lamp Driver
With LED Driver
Interface Detail :
Brand
Model
Pin Pitch
Pins
Amount
Configuration
JST
SM10B-SHLS-TF
1.0 mm
10 pins
1 pcs

Driver Electrical :
Voltage Input
12.0±1.2V
Current Input
1.9/2.3A (Typ./Max.)



Sharp LQ201U1LW31 Interface Detail

Signal Systerm :
LVDS (2 ch, 8-bit)
Logic Voltage
-
Signal Electrical :
Voltage Input
12.0V (Typ.)
Current Input
240/470mA (Typ./Max.)
Interface Features :
Type
Connector
Position
Connector Detail :
Brand
Model
Pin Pitch
Pins
Amount
Configuration
HRS
MDF76GW-30S-1H
1.0 mm
30 pins
1 pcs
LVDS-30P2C8B-160D
