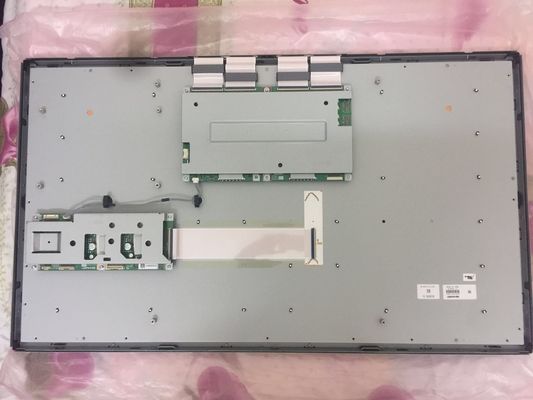

32" LCM 3840×2160RGB  450cd/m² Sharp TFT LCD Display LQ315D1LG91

LQ315 Series LQ315D1LG9A LQ315D1LG91 LQ315D1JG95 LQ315D1JG03

LQ315D1LG91 supports display 3840(RGB)×2160 (UHD) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 697.92(W)×392.58(H) mm, outline size of 733(W)×429.6(H)×57(D) mm, viewing area size of 703.0(W)×397.6(H) mm, with surface treament of Antiglare, Hard coating (3H), Antireflection, net weight of 6.20Kgs (Typ.). As a ASV, Normally Black, Transmissive LCM product, LQ315D1LG91 can provides 450 cd/m² display brightness 800:1 transimissive contrast ratio, 88/88/88/88 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 8 (Typ.)(G to G) ms. Gray scale or the brightness of the sub-pixel is determined with a 10-bit gray scale signal for each dot, thus presenting a palette of 1.07B colors, also with performance of color gamut 78% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Direct light type and have a working life time of 50K hours, With LED Driver. LQ315D1LG91 utilizes LVDS (8 ch, 10-bit) as it's signal inputting systerm, which connected by 122 pins Connector with power supply voltage of 12.0V (Typ.).
