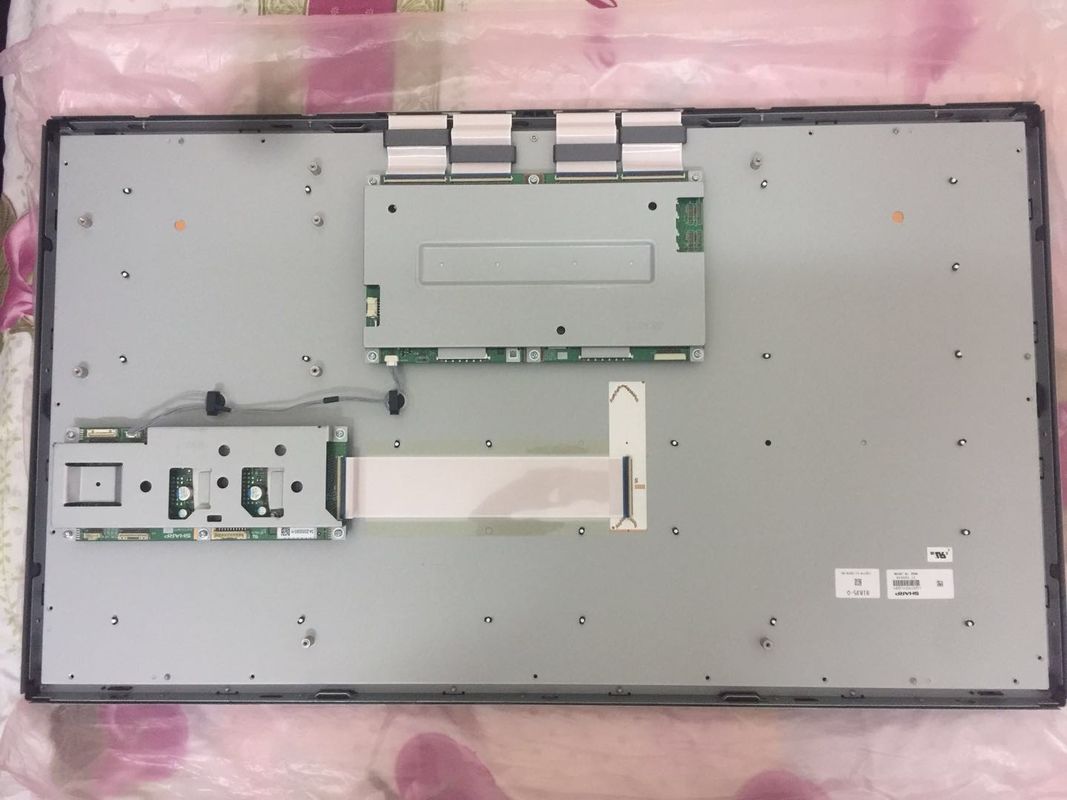

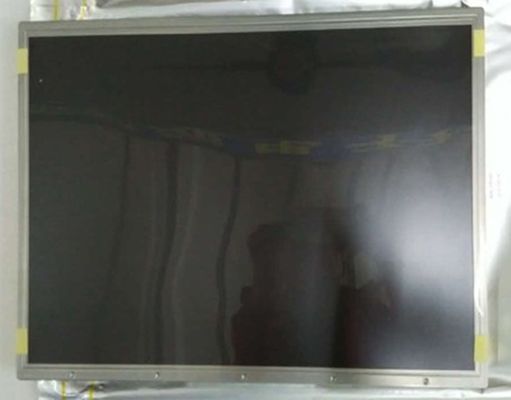

LQ315D1LG9A Sharp 32" LCM 3840×2160RGB  350cd/m² INDUSTRIAL LCD DISPLAY

LQ315D1LG9A Sharp 32" LCM 3840×2160RGB  350cd/m² INDUSTRIAL LCD DISPLAY
LQ315D1LG9A Sharp 32" LCM 3840×2160RGB  350cd/m² INDUSTRIAL LCD DISPLAY LQ315D1LG9A Sharp 32" LCM 3840×2160RGB  350cd/m² INDUSTRIAL LCD DISPLAY

Large Image :  LQ315D1LG9A Sharp 32" LCM 3840×2160RGB  350cd/m² INDUSTRIAL LCD DISPLAY

Product Details:
Place of Origin: JAPAN
Brand Name: Sharp
Certification: ISO9001
Model Number: LQ315D1LG9A
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: 18 pcs / box 241 Kgs 1138×1110×850 mm (L×W×H)
Delivery Time: 1-2DAYS
Payment Terms: TT/PAYPAL/ESCROW/WESTERN UNION
Supply Ability: 1000PCS
Contact Now

LQ315D1LG9A Sharp 32" LCM 3840×2160RGB  350cd/m² INDUSTRIAL LCD DISPLAY

Description
Panel Size: 32INCH Panel Model: LQ315D1LG9A
Display Area: 697.92(W)×392.58(H) Mm Outline Size: 735.4(W)×430(H) ×26.5(D) Mm
Resolution: 3840(RGB)×2160, UHD, 139PPI Panel Type: Oxide TFT-LCD, LCM
Pixel Format: RGB Vertical Stripe Brightness: 350 Cd/m² (Typ.)
Viewing Angle: 88/88/88/88 (Typ.)(CR≥10) Environment: Operating Temp.: 0 ~ 40 °C ; Storage Temp.: -25 ~ 60 °C
Highlight:

LVDS TFT LCD Display

,

CCFL Sharp TFT LCD Display

LQ315 Series LQ315D1LG9A LQ315D1LG91 LQ315D1JG95 LQ315D1JG03



Sharp LQ315D1LG9A Application Details

Basic Information :
Brand
SHARP
LQ315D1LG9AModel
Type
Oxide TFT-LCD , LCM
Used For




  •
Screen Size
32.0 inch
Alias
-
Environment :
Storage Temp.
-25 ~ 60 °C
Operating Temp.
0 ~ 40 °C
RoHS

-Vibration





Sharp LQ315D1LG9A Mechanical Details

Pixel Features :
Resolution
3840(RGB)×2160, UHD
Dot Pitch(mm)
0.06058×0.18175 (H×V)
Pixel Format
RGB Vertical Stripe
Pixel Pitch(mm)
0.18175×0.18175 (H×V) [139PPI]
Mechanical Size :
Active Area(mm)
697.92(H) × 392.58(V)
Bezel Area(mm)
703.0(H) × 397.6(V)
Outline Dim.(mm)
735.4(H) × 430(V)
Depth(mm)
16.3/26.5 (Typ./Max.)
Outline Features :
Form Style
Flat Rectangle
Shape Style
Normal bezel
Aspect Ratio
16:9 (H:V)
Orientation
Landscape type
Other Spec :
Weight
5.90±0.20Kgs
Treatment
Antiglare, Hard coating (3H), Antireflection



Sharp LQ315D1LG9A Optical Details

Basic Information :
Luminance(cd/m²)
350 (Typ.)
Contrast Ratio
1000:1 (Typ.) (Transmissive)
Viewing Angle
88/88/88/88 (Typ.)(CR≥10)
Display Mode
ASV, Normally Black, Transmissive
Best View on
Symmetry
Response(ms)
8 (Typ.)(G to G)
Color Performance :
White Coordinate
Wx:0.316; Wy:0.324
Display Colors
1.07B (10-bit)
Color Temperature
6362K
White Uniformity
1.33 (Max.)(9 points)
1931 Color Gamlt :
NTSC Ratio
97%
sRGB
100% coverage
Adobe RGB
99% coverage
DCI-P3
89% coverage
Rec.2020
72% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)



Sharp LQ315D1LG9A Interface Detail

Signal Electrical :
Voltage Supply
12.0V (Typ.)
Current Supply
1.5/3.0A (Typ./Max.)
Signal Type :
LVDS (8 ch, 10-bit)
Logic Voltage
-
Interface Features :
Position
-
Type
Connector
Interface Detail :
Brand
Model
Pitch
Pins
Quantity
Pin Configuration
JAE
FI-RNE51SZ-HF-R1500
0.5 mm
51 pins
2 pcs

JST
SM15B-GHH-TB(HF)
1.25 mm
15 pins
1 pcs

JST
SM05B-PAHS-TBT(HF)
2.0 mm
5 pins
1 pcs




Sharp LQ315D1LG9A Backlight Details

Backlight Features :
Type
WLED
Quantity
-
Position
Edge light type
Replacement
-
Shape
-
Life Time
50K(Typ.) (Hours)
Lamp Electrical :
Voltage Supply
125.4±9.9V
Current Supply
60mA (Typ.)
Interface Features :
Position
-
Type
Connector
Interface Detail :
Brand
Model
Pitch
Pins
Quantity
Pin Configuration
E&T
4530K-F12N-01R
2.0 mm
12 pins
1 pcs
BLE-12PINS-CACCACCACCAC
Backlight Driver :
No
