Product Details:
|
| Screen Size: | 23.1 Inch | Screen Type: | LCM , A-Si TFT-LCD |
|---|---|---|---|
| Pixel Number: | 1600(RGB)×1200 (UXGA) 86PPI | Arrangement: | RGB Vertical Stripe |
| Response: | 12 (Typ.)(Tr+Td); 8 (Typ.)(G To G) Ms | Backlight: | WLED , 50K Hours , With LED Driver |
| Luminance: | 500cd/m² | Viewing Angle: | 85/85/85/85 (Min.)(CR≥10) Left / Right / Up / Down |
| Signal Type: | OpenLDI , 31 Pins Connector | Max. Ratings: | Storage Temp.: -20 ~ 65 °C Operating Temp.: 0 ~ 60 °C |
| Highlight: | LVDS TFT LCD Display,CCFL Sharp TFT LCD Display |
||

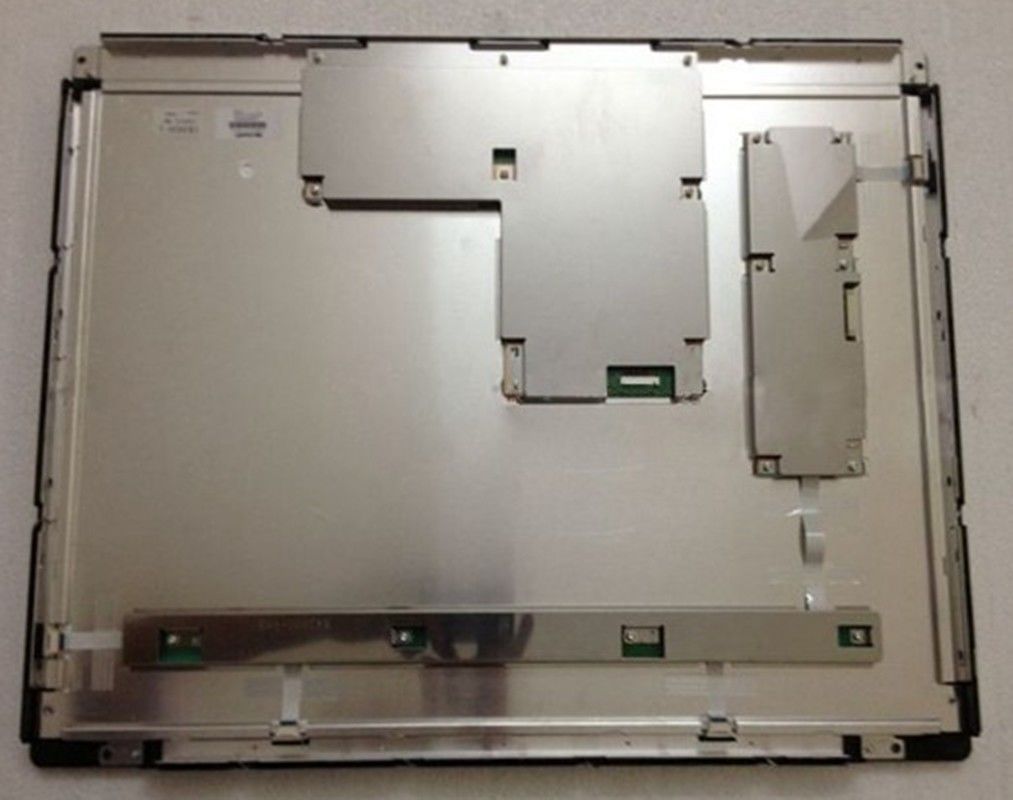

LQ231 Series LQ231U1LW32 LQ231U1LW31 LQ231U1LW21
| Basic Information : | Brand | Model | Type | Model Alias |
|---|---|---|---|---|
| SHARP | LQ231U1LW31 | a-Si TFT-LCD , LCM | - | |
| Reliability : | RoHS | Operating Temperature | Storage Temperature | Vibration Resistance |
| 0 ~ 60 °C | -20 ~ 65 °C | - |
| Panel Size : | 23.1 inch | |||
|---|---|---|---|---|
| Pixel Features : | Resolution | Pixel Arrangement | Dot Pitch (W×H) | Pixel Pitch (W×H) |
| 1600(RGB)×1200, UXGA | RGB Vertical Stripe | 0.098×0.294 mm | 0.294×0.294 mm [86PPI] | |
| Mechanical Size : | Active Area (W×H) | Bezel Area (W×H) | Outline Dimension (W×H) | Outline Depth |
| 470.4×352.8 mm | 476.4×358.8 mm | 530×431.5 mm | 23.9/24.9 (Typ./Max.) mm | |
| Outline Features : | Form Style | Aspect Ratio | Orientation | Shape Style |
| Flat Rectangle | 4:3 (W : H) | Landscape type | ||
| Fixation : | Face mounting holes (4-Ф4.5) | |||
| Other Features : | Panel Cover | Weight | Surface | |
| - | 4.50Kgs (Max.) | Antiglare (Haze 40%), Hard coating (2H) | ||
| Basic Information : | Brightness | Operating Mode | Contrast Ratio |
|---|---|---|---|
| 500 cd/m² (Typ.) | ASV, Normally Black, Transmissive | 600:1 (Typ.) (Transmissive) | |
| Viewing Angle(L/R/U/D) | Viewing Direction | Response Speed | |
| 85/85/85/85 (Min.)(CR≥10) | Symmetry | 12 (Typ.)(Tr+Td); 8 (Typ.)(G to G) (ms) | |
| Dispaly Color : | Color Temperature | Color Amount | White color Chromaticity |
| 7992K | 16.7M (8-bit) | X:0.292; Y:0.315 | |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 62% | 80% | 63% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 65% | 47% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| Luminance Variation : | 1.33 (Max.)(9 Points) | ||
| Signal Electrical : | Current Input | Voltage Input | Consumption | |||
|---|---|---|---|---|---|---|
| 1.10/1.80A (Typ./Max.) | 5.0V (Typ.) | - | ||||
| Interface Features : | Position | Type | Interface | |||
| - | Connector | OpenLDI | ||||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| JAE | FI-WE31P-HFE | 1 pcs | 1.25 mm | 31 pins | ||
| Backlight Features: | Type | Position | Shape | Amount | Life(Hours) | Replacement |
|---|---|---|---|---|---|---|
| WLED | Edge light type | - | - | 50K(Typ.) | - | |
| Interface Features : | Position | Type | WLED Driver | |||
| - | Connector | With LED Driver | ||||
| Interface Detail | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| JST | S12B-PH-SM4-TB | 1 pcs | 2.0 mm | 12 pins | ||
| Driver Electrical : | Current Input | Voltage Input | Consumption | |||
| 5.0/5.8A (Typ./Max.) | 12.0V (Typ.) | - | ||||
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
