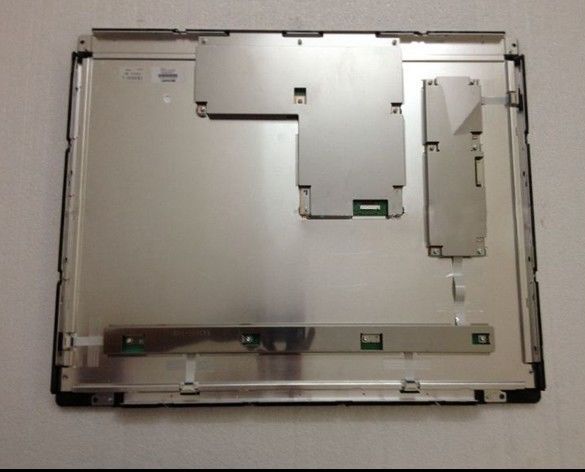

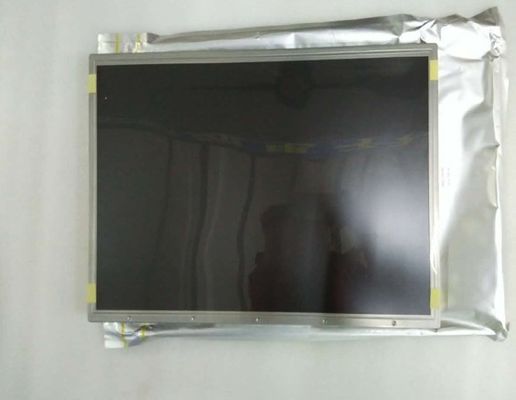

Product Details:
|
| Diagonal Size: | 23.1" | Model: | LQ231U1LW32 |
|---|---|---|---|
| Luminance: | 500cd/m² | Pixel Format: | 1600×1200RGB |
| Bezel Area: | 476.4(H)×358.8(V) Mm | Type: | A-Si TFT-LCD , LCM |
| Outline Dim.: | 530(H)×431.5(V) ×24.9(D) Mm | Operating Mode: | ASV, Normally Black, Transmissive [Panelook Copyright, Copy Is Strictly Prohibited] IPS Family: AAS, ADS, AHVA, FFS, IPS, New Mode2, PLS, SFT, Vistarich VA Family: ASV, HVA, MVA, PVA, SVA, UV²A, VA |
| Light Source: | WLED , 50K Hours , With LED Driver | Environment: | Operating Temperature: 0 ~ 60 °C ; Storage Temperature: -25 ~ 65 °C |
| Highlight: | CCFL LVDS Industrial LCD Panel,QVGA Sharp TFT LCD Display |
||
LQ231 Series LQ231U1LW32 LQ231U1LW31 LQ231U1LW21
| Basic Information : | Luminance (cd/m²) | Viewing Angle (L/R/U/D) | Response Time (ms) |
|---|---|---|---|
| 500 (Typ.) | 85/85/85/85 (Min.)(CR≥10) | 12 (Typ.)(Tr+Td); 8 (Typ.)(G to G) | |
| Best View on | Display Mode | Contrast Ratio | |
| Symmetry | ASV, Normally Black, Transmissive | 600 : 1 (Typ.) (Transmissive) | |
| Dispaly Color : | Color Temperature | Display Colors | White Coordinate |
| 7992K | 16.7M (8-bit) | X:0.292; Y:0.315 | |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 62% | 80% | 63% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 65% | 47% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| White Variation : | 1.33 (Max.)(9 Points) | ||
| Panel Size : | 23.1" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Format | Pixel Configuration | Pixel Pitch (mm) | Dot Pitch (mm) |
| 1600(RGB)×1200 [UXGA] | RGB Vertical Stripe | 0.294×0.294 [86PPI] | 0.098×0.294 | |
| Mechanical Size : | Active Area (mm) | Bezel Area (mm) | Outline Dimension (mm) | Outline Depth (mm) |
| 470.4(H) × 352.8(V) | 476.4(H) × 358.8(V) | 530(H) × 431.5(V) | 23.9/24.9 (Typ./Max.) mm | |
| Outline Features : | Form Factor | Orientation | Aspect Ratio | Shape Style |
| Flat Rectangle | Landscape type | 4:3 (H:V) | ||
| Mounting : | Face mounting holes (4-Ф4.5) on left, right bezel | |||
| Other Detail : | Weight | Panel Cover | Treatment | |
| 4.50Kgs (Max.) | - | Antiglare (Haze 40%), Hard coating (2H) | ||
| Lamp Features: | Type | Position | Quantity | Shape | Life(Hours) | Lamp Exchange |
|---|---|---|---|---|---|---|
| WLED | Edge light type | - | - | 50K(Typ.) | - | |
| Interface Features : | Position | Backlight Driver | Type | |||
| - | With LED Driver | Connector | ||||
| Interface Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
| JST | S12B-PH-SM4-TB | 2.0 mm | 12 pins | 1 pcs | ||
| Driver Electrical : | Voltage Supply | Current Supply | Power Consumption | |||
| 12.0V (Typ.) | 5.0/5.8A (Typ./Max.) | - | ||||
| Panel Driving Electrical : | Voltage Supply | Current Supply | Power | |||
|---|---|---|---|---|---|---|
| 5.0V (Typ.) | 1.10/1.80A (Typ./Max.) | - | ||||
| Interface Features : | Position | Signal | Type | |||
| - | OpenLDI | Connector | ||||
| Connector Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
| JAE | FI-WE31P-HFE | 1.25 mm | 31 pins | 1 pcs | ||
LQ231U1LW32 supports display 1600(RGB)×1200 (UXGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 470.4(W)×352.8(H) mm, outline size of 530(W)×431.5(H)×24.9(D) mm, viewing area size of 476.4(W)×358.8(H) mm, with surface treament of Antiglare (Haze 40%), Hard coating (2H), net weight of 4.50Kgs (Max.). As a ASV, Normally Black, Transmissive LCM product, LQ231U1LW32 can provides 500 cd/m² display brightness 600:1 transimissive contrast ratio, 85/85/85/85 (Min.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 12 (Typ.)(Tr+Td); 8 (Typ.)
