Product Details:
|
| Size: | 5" | Resolution: | 320(RGB)×234, 79PPI |
|---|---|---|---|
| Model: | LQ5AW116 | Display Area: | 102.2(W)×74.8(H) Mm |
| Outline Size: | 126.8(W)×89.6(H) Mm | Brightness: | 320 Cd/m² (Typ.) |
| Viewing Angle: | 65/65/40/65 (Typ.)(CR≥5) | Environment: | Operating Temp.: -30 ~ 85 °C ; Storage Temp.: -30 ~ 85 °C |
| Highlight: | CCFL LVDS Industrial LCD Panel,QVGA Sharp TFT LCD Display |
||

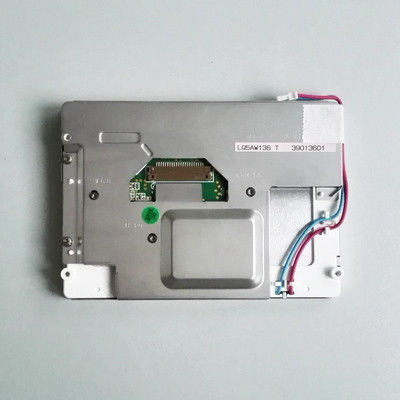

LQ5 Series LQ5AW136T LQ5AW136 LQ5AW116
| Basic Detail : | |
|---|---|
| Maximum Ratings : |
| Basic Detail : | |
|---|---|
| Color Performance : |
| Pixel Features : | |
|---|---|
| Physical Size : | |
| Outline Features : | |
| Other Detail : |
| Signal Electrical : | |
|---|---|
| Interface Features : | |
| Interface Detail : |
| Lamp Features : | |
|---|---|
| Lamp Electrical : | |
| Interface Features : | |
| Interface Detail : | |
| Backlight Driver : |
LQ5AW116 supports display 320(RGB)×234 with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 102.2(W)×74.8(H) mm, outline size of 126.8(W)×89.6(H) mm, viewing area size of 107.4(W)×79.8(H) mm, with surface treament of Antiglare, Antireflection, net weight of 185±10g. As a TN, Normally White, Transmissive LCM product, LQ5AW116 can provides 320 cd/m² display brightness 60:1 transimissive contrast ratio, 65/65/40/65 (Typ.)(CR≥5) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 30/50 (Typ.)
