TM040YDH01 TIANMA 4.0" 480(RGB)×800 300 cd/m² INDUSTRIAL LCD DISPLAY

TM040YDH01 TIANMA 4.0" 480(RGB)×800 300 cd/m² INDUSTRIAL LCD DISPLAY
TM040YDH01 TIANMA 4.0" 480(RGB)×800 300 cd/m² INDUSTRIAL LCD DISPLAY TM040YDH01 TIANMA 4.0" 480(RGB)×800 300 cd/m² INDUSTRIAL LCD DISPLAY TM040YDH01 TIANMA 4.0" 480(RGB)×800 300 cd/m² INDUSTRIAL LCD DISPLAY

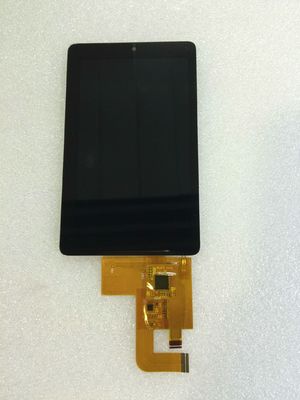

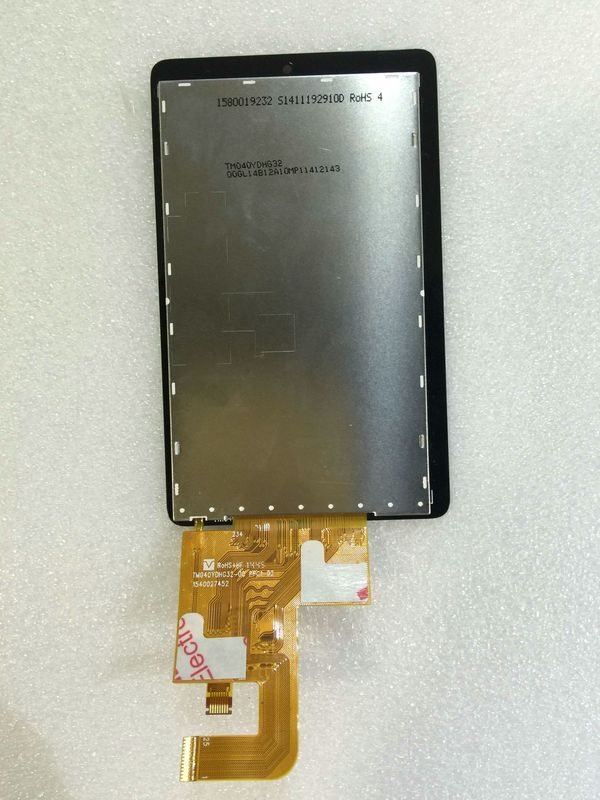

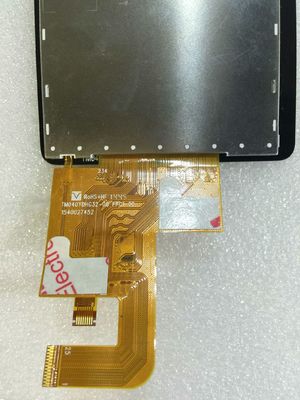

Large Image :  TM040YDH01 TIANMA 4.0" 480(RGB)×800 300 cd/m² INDUSTRIAL LCD DISPLAY

Product Details:
Place of Origin: JAPAN
Brand Name: TIANMA
Certification: ISO9001
Model Number: TM040YDH01
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: STANDARD PACKING
Delivery Time: 1-2 DAYS
Payment Terms: TT/PAYPAL/ESCROW/WESTERN UNION
Supply Ability: 600PCS
Contact Now

TM040YDH01 TIANMA 4.0" 480(RGB)×800 300 cd/m² INDUSTRIAL LCD DISPLAY

Description
MODEL NUMBER: TM040YDH01 BRAND: TIANMA
SIZE: 4.0 Inch RESOLUTION: 480(RGB)×800 (WVGA) 235PPI
BRIGHTNESS: 300 Cd/m² (Typ.) Viewing Angle: 70/70/60/70 (Typ.)(CR≥10)
TEMPERATURE RANGE: Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C
High Light:

XGA TIANMA LCD Screen

,

WQVGA TIANMA TFT LCD

TIANMA TM040YDH01 Carton Details

Package Carton : Amount Net Weight Carton Size (L×W×H)
336 pcs / box TBD 544×365×250 mm



TIANMA TM040YDH01 Interface Detail

Signal Systerm :
MIPI (3 data lanes)
Logic Voltage
-
Signal Electrical :
Voltage Input
(1.8/2.8)/2.8V (Typ.)(IOVCC/VDD)
Current Input
-
Interface Features :
Type
FPC
Position
-
FPC Detail :
Brand
Model
Pin Pitch
Pins
Amount
Configuration


0.3 mm
25 pins
1 pcs



TIANMA TM040YDH01 Backlight Details

Back-light Features :
Lamp Type
WLED
Amount
8S1P
Life Time
-
Replacement
-
Lamp Shape
1 string
Position
Edge light type
Lamp Electrical :
Voltage Input
25.6V (Typ.)
Current Input
20mA (Typ.)
Consumption
512mW (Typ.)
Interface Features :
Type
Included in panel signal interface
Position
-
Lamp Driver
No



TIANMA TM040YDH01 Electronics Details

Frame Frequency :
60Hz
Reverse Scan :
No
D-IC Detail :
Built-in HX8369-A01



TIANMA TM040YDH01 Optical Details

Basic Information :
Brightness
300 cd/m² (Min.)
Contrast Ratio
700:1 (Typ.) (Transmissive)
Viewing Angle
70/70/60/70 (Typ.)(CR≥10)
Optical Mode
TN, Normally White, Transmissive
Viewing Direction
-
Response Time
25 (Typ.)(Tr+Td) ms
Color Performance :
Chromaticity
-
Color Numbers
16.7M (8-bit)
Color Temperature
-
Uniformity
1.25/1.33 (Typ./Max.)(9 points)



TIANMA TM040YDH01 Mechanical Details

Pixel Features :
Pixel Format
480(RGB)×800, WVGA
Dot Pitch
0.036×0.108 mm (H×V)
Configuration
RGB Vertical Stripe
Pixel Pitch
0.108×0.108 mm (H×V) [235PPI]
Mechanical Size :
Display Area
51.84×86.4 mm (H×V)
Bezel Area
52.84×87.4 mm (H×V)
Outline Dim.
58.18×99.15 mm (H×V)
Outline Depth
1.90 (Typ.) mm
Outline Features :
Form Factor
Flat Rectangle
Orientation
Portrait type
Aspect Ratio
3:5 (H:V)
Shape Style

Other Features :
Weight
TBD
Surface
Antiglare



TIANMA TM040YDH01 Application Details

Basic Info :
Panel Brand

Panel Model
TM040YDH01
Diagonal Size
4.0"
Application

Panel Type
a-Si TFT-LCD , LCM
Model Alias
-
Reliability :
Operating Temp.
-20 ~ 70 °C
Storage Temp.
-30 ~ 80 °C
RoHS State

Vibration Rating
-
Specific Features :



  • Matte

FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
