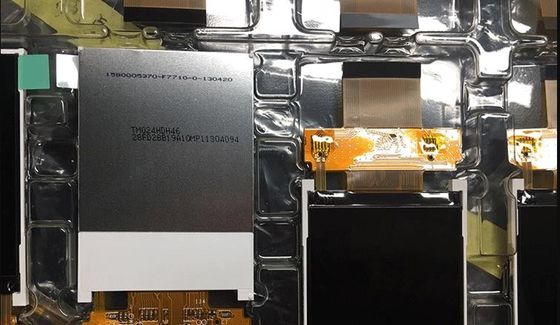

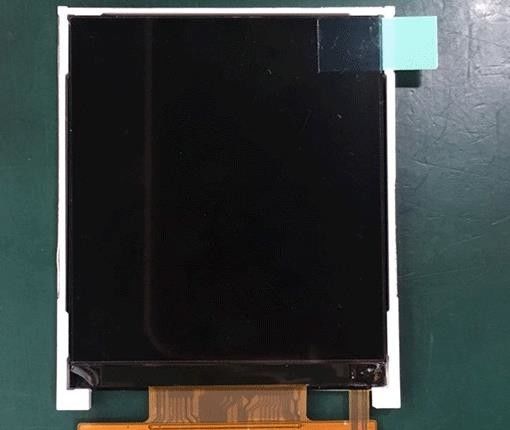

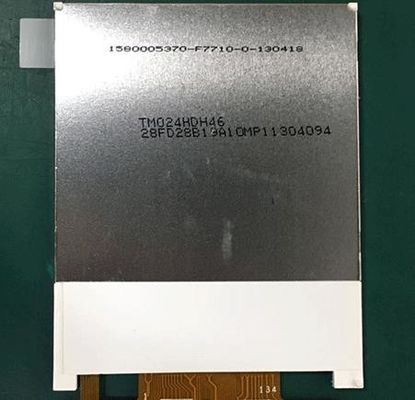

Product Details:
|
| MODEL NUMBER: | TM024HDH46 | BRAND: | TIANMA |
|---|---|---|---|
| SIZE: | 2.4 Inch | RESOLUTION: | 240(RGB)×320, QVGA, 166PPI |
| BRIGHTNESS: | 310 Cd/m² (Typ.) | Viewing Angle: | 70/70/60/70 (Typ.)(CR≥10) |
| TEMPERATURE RANGE: | Operating Temp.: -20 ~ 60 °C ; Storage Temp.: -30 ~ 70 °C | ||
| High Light: | XGA TIANMA LCD Screen,WQVGA TIANMA TFT LCD |
||
| Basic Information : | Manufacturer | Panel Model | Panel Type | Alias |
|---|---|---|---|---|
| TM024HDH46 | a-Si TFT-LCD , LCM | - | ||
| Environment : | RoHS State | Operating Temp. | Storage Temp. | Vibration Level |
| -20 ~ 60 °C | -30 ~ 70 °C | - | ||
| Used For : | ||||
| Specific Features : |
|
|||
| Remarks : | CPU 8/16 bits; 2 in 1 FPC; Down side FPC (30.00mm length) | |||
| Basic Information : | Luminance (cd/m²) | Viewing Angle (L/R/U/D) | Response Time (ms) |
|---|---|---|---|
| 310 (Typ.) | 70/70/60/70 (Typ.)(CR≥10) | 20 (Typ.)(Tr+Td) | |
| Best View on | Display Mode | Contrast Ratio | |
| 12 o'clock | TN, Normally White, Transmissive | 500 : 1 (Typ.) (Transmissive) | |
| Dispaly Color : | Color Temperature | Display Colors | White Coordinate |
| 8022K | 65K/262K | X:0.290; Y:0.320 | |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 53% | 74% | 55% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 55% | 40% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| White Variation : | 1.25 (Typ.)(9 points) | ||
| Panel Size : | 2.4" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Format | Pixel Configuration | Pixel Pitch (mm) | Dot Pitch (mm) |
| 240(RGB)×320 [QVGA] | RGB Vertical Stripe | 0.153×0.153 [166PPI] | 0.051×0.153 | |
| Mechanical Size : | Active Area (mm) | Bezel Area (mm) | Outline Dimension (mm) | Outline Depth (mm) |
| 36.72(H) × 48.96(V) | - | 42.72(H) × 60.26(V) | 2.35±0.1 mm | |
| Outline Features : | Form Factor | Orientation | Aspect Ratio | Shape Style |
| Flat Rectangle | Portrait type | 3:4 (H:V) | ||
| Other Detail : | Weight | Panel Cover | Treatment | |
| TBD | - | Clear, Hard coating (3H) | ||
| Reverse Scan : | No |
|---|---|
| Vertical Frequency : | 60Hz |
| Driver IC : | Built-in ILI9340 |
| Lamp Features: | Type | Position | Quantity | Shape | Life(Hours) | Lamp Exchange |
|---|---|---|---|---|---|---|
| WLED | Edge light type | 1S4P | Parallel | - | - | |
| WLED Electrical : | Voltage Supply | Current Supply | Power | |||
| 3.2V (Typ.) | 15mA (Typ.) | 192mW (Typ.) | ||||
| Interface Features : | Position | Backlight Driver | Type | |||
| - | No | Included in panel signal interface | ||||
| Panel Driving Electrical : | Voltage Supply | Current Supply | Power | |||
|---|---|---|---|---|---|---|
| (1.8/2.8)/2.8V (Typ.)(IOVCC/VCC) | - | - | ||||
| Interface Features : | Position | Signal | Type | |||
| - | CPU | FPC | ||||
| FPC Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
| 0.5 mm | 40 pins | 1 pcs | ||||
