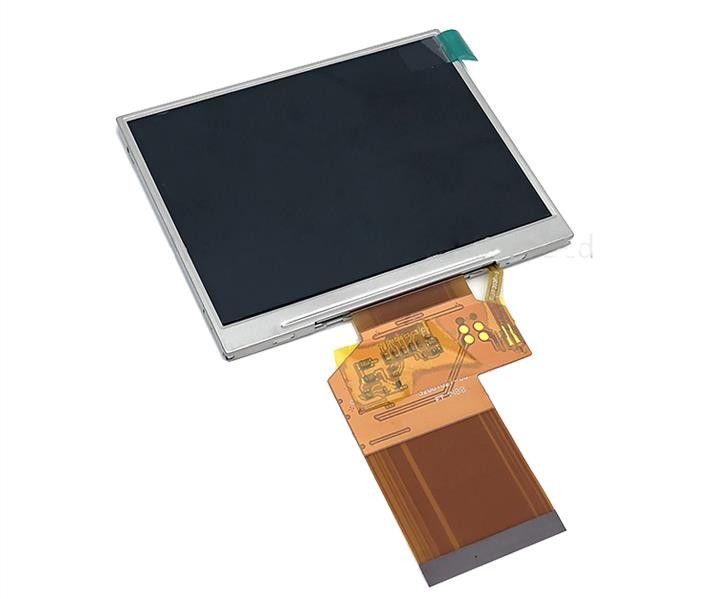

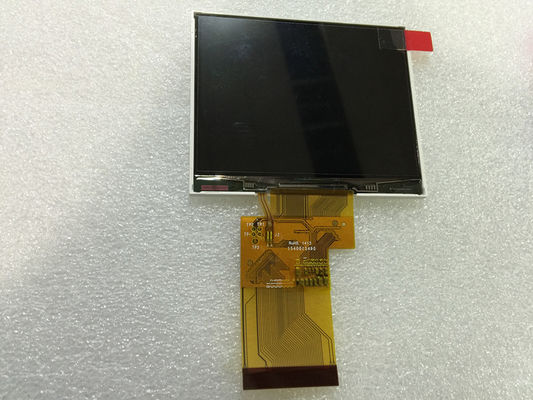

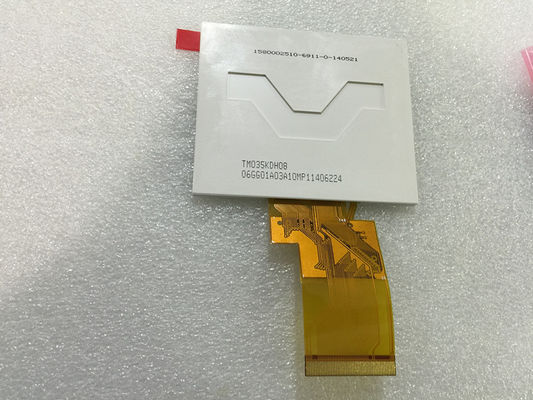

Product Details:
|
| MODEL NUMBER: | TM035KDH08 | BRAND: | TIANMA |
|---|---|---|---|
| SIZE: | 3.5 Inch | RESOLUTION: | 320(RGB)×240 [QVGA] 115PPI |
| Viewing Angle: | 0/60/50/60 (Typ.)(CR≥10) | BRIGHTNESS: | 200 Cd/m² (Typ.) |
| TEMPERATURE RANGE: | Operating Temperature: -20 ~ 60 °C ; Storage Temperature: -30 ~ 70 °C | ||
| Highlight: | XGA TIANMA LCD Screen,WQVGA TIANMA TFT LCD |
||
| Basic Information : | Manufacturer | Panel Model | Panel Type | Alias |
|---|---|---|---|---|
| TM035KDH08 | a-Si TFT-LCD , LCM | - | ||
| Environment : | RoHS State | Operating Temp. | Storage Temp. | Vibration Level |
| -20 ~ 60 °C | -30 ~ 70 °C | - | ||
| Used For : |
|
|||
| Specific Features : | ||||
| Remarks : | 2 in 1 FPC; Down side FPC (55.90mm length) | |||
| Basic Information : | Luminance (cd/m²) | Viewing Angle (L/R/U/D) | Response Time (ms) |
|---|---|---|---|
| 200 (Typ.) | 60/60/50/60 (Typ.)(CR≥10) | 25 (Typ.)(Tr+Td) | |
| Best View on | Display Mode | Contrast Ratio | |
| 12 o'clock | TN, Normally White, Transmissive | 300 : 1 (Typ.) (Transmissive) | |
| Dispaly Color : | Color Temperature | Display Colors | White Coordinate |
| 6610K | 16.7M (8-bit) | X:0.310; Y:0.333 | |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 49% | 67% | 51% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 51% | 37% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| White Variation : | 1.25/1.33 (Typ./Max.)(9 points) | ||
| Panel Size : | 3.5" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Format | Pixel Configuration | Pixel Pitch (mm) | Dot Pitch (mm) |
| 320(RGB)×240 [QVGA] | RGB Vertical Stripe | 0.219×0.219 [115PPI] | 0.073×0.219 | |
| Mechanical Size : | Active Area (mm) | Bezel Area (mm) | Outline Dimension (mm) | Outline Depth (mm) |
| 70.08(H) × 52.56(V) | 71.88(H) × 54.36(V) | 76.9(H) × 63.9(V) | 3.15±0.2 mm | |
| Outline Features : | Form Factor | Orientation | Aspect Ratio | Shape Style |
| Flat Rectangle | Landscape type | 4:3 (H:V) | ||
| Other Detail : | Weight | Panel Cover | Treatment | |
| TBD | - | Clear, Hard coating (3H) | ||
| Reverse Scan : | No |
|---|---|
| Vertical Frequency : | 60Hz |
| Driver IC : | COG Built-in NT39016D |
| Time Controller (T-CON) : | Embedded T-CON |
| Lamp Features: | Type | Position | Quantity | Shape | Life(Hours) | Lamp Exchange |
|---|---|---|---|---|---|---|
| WLED | Edge light type | 6S1P | 1 string | 20K(Typ.) | - | |
| WLED Electrical : | Voltage Supply | Current Supply | Power | |||
| 19.2/21.6V (Typ./Max.) | 20/25mA (Typ./Max.) | 384/540mW (Typ./Max.) | ||||
| Interface Features : | Position | Backlight Driver | Type | |||
| - | No | |||||
| Panel Driving Electrical : | Voltage Supply | Current Supply | Power | |||
|---|---|---|---|---|---|---|
| 3.3V (Typ.) | - | 46/50mW (Typ./Max.) | ||||
| Voltage for Display Signals : | 0≤VIL≤0.2VDD; 0.8VDD≤VIH≤VDD | |||||
| Interface Features : | Position | Signal | Type | |||
| - | Digital RGB (8/24-bit) + SPI, CCIR601/656 | FPC | ||||
| FPC Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
| 0.5 mm | 54 pins | 1 pcs | ||||
| Package Box : | Quantity | Weight | Box Size |
|---|---|---|---|
| 168 pcs / box | - | 530×350×250 mm (L×W×H) |
