TM035WDHG03 TIANMA 3.5" 480(RGB)×640 350 cd/m² INDUSTRIAL LCD DISPLAY

TM035WDHG03 TIANMA 3.5" 480(RGB)×640 350 cd/m² INDUSTRIAL LCD DISPLAY

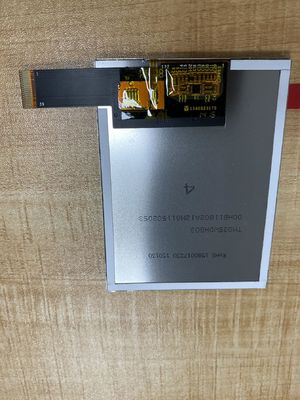

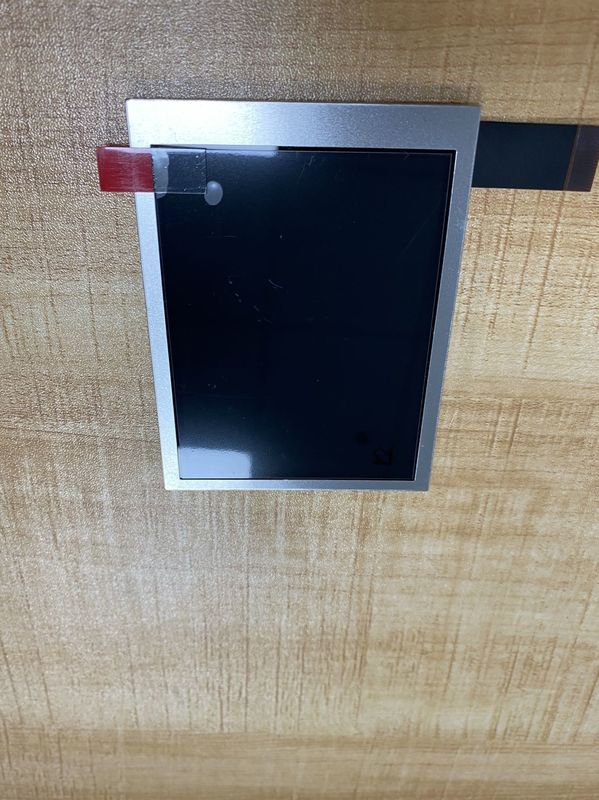

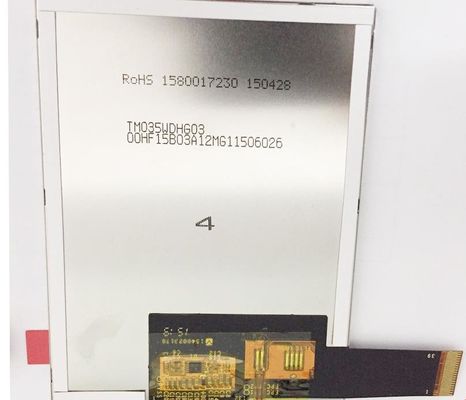

TM035WDHG03 TIANMA 3.5" 480(RGB)×640 350 cd/m² INDUSTRIAL LCD DISPLAY TM035WDHG03 TIANMA 3.5" 480(RGB)×640 350 cd/m² INDUSTRIAL LCD DISPLAY TM035WDHG03 TIANMA 3.5" 480(RGB)×640 350 cd/m² INDUSTRIAL LCD DISPLAY

Large Image :  TM035WDHG03 TIANMA 3.5" 480(RGB)×640 350 cd/m² INDUSTRIAL LCD DISPLAY

Product Details:
Place of Origin: JAPAN
Brand Name: TIANMA
Certification: ISO9001
Model Number: TM035WDHG03
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: STANDARD PACKING
Delivery Time: 1-2 DAYS
Payment Terms: TT/PAYPAL/ESCROW/WESTERN UNION
Supply Ability: 1000PCS
Contact Now

TM035WDHG03 TIANMA 3.5" 480(RGB)×640 350 cd/m² INDUSTRIAL LCD DISPLAY

Description
MODEL NUMBER: TM035WDHG03 BRAND: TIANMA
SIZE: 3.5 Inch RESOLUTION: 480(RGB)×640 (VGA) 228PPI
BRIGHTNESS: 350 Cd/m² (Typ.) Viewing Angle: 70/70/70/60 (Typ.)(CR≥10)
TEMPERATURE RANGE: Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C ; Vibration Level: 2.0G (19.6 M/s²)
High Light:

XGA TIANMA LCD Screen

,

WQVGA TIANMA TFT LCD

TIANMA TM035WDHG03 Application Details

Basic Information :
Brand

Model
TM035WDHG03
Type
a-Si TFT-LCD , LCM
Used For



Screen Size
3.5 inch
Alias
-
Environment :
Storage Temp.
-30 ~ 80 °C
Operating Temp.
-20 ~ 70 °C
RoHS

Vibration
-
Typical Features :






TIANMA TM035WDHG03 Mechanical Details

Pixel Features :
Resolution
480(RGB)×640, VGA
Dot Pitch(mm)
0.037×0.111 (H×V)
Pixel Format
RGB Vertical Stripe
Pixel Pitch(mm)
0.111×0.111 (H×V) [228PPI]
Mechanical Size :
Active Area(mm)
53.28(H) × 71.04(V)
Bezel Area(mm)
56.44(H) × 74.32(V)
Outline Dim.(mm)
64(H) × 85(V)
Depth(mm)
3.0±0.3
Outline Features :
Form Style
Flat Rectangle
Shape Style

Aspect Ratio
3:4 (H:V)
Orientation
Portrait type
Other Spec :
Weight
44.7g (Typ.)
Treatment



TIANMA TM035WDHG03 Optical Details

Basic Information :
Luminance(cd/m²)
350 (Typ.)
Contrast Ratio
500:1 (Typ.) (Transmissive)
Viewing Angle
70/70/70/60 (Typ.)(CR≥10)
Display Mode
TN, Normally White, Transmissive
Best View on
9 o'clock
Response(ms)
25 (Typ.)(Tr+Td)
Color Performance :
White Coordinate
Wx:0.301; Wy:0.321
Display Colors
262K (6-bit)
Color Temperature
7272K
White Uniformity
1.33/1.43 (Typ./Max.)(9 points)
1931 Color Gamlt :
NTSC Ratio
54%
sRGB
74% coverage
Adobe RGB
56% coverage
DCI-P3
56% coverage
Rec.2020
40% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)



TIANMA TM035WDHG03 Electronics Details

Frame Rate :
60Hz
Reverse Scan :
No
Driver IC :
Built-in HX8363A



TIANMA TM035WDHG03 Interface Detail

Signal Electrical :
Voltage Supply
3.3V (Typ.)
Current Supply
-
Signal Type :
Parallel RGB (1 ch, 6-bit) + SPI
Logic Voltage
0≤VIL≤0.2VDD; 0.8VDD≤VIH≤VDD
Interface Features :
Position
-
Type
FPC
Interface Detail :
Brand
Model
Pitch
Pins
Quantity
Pin Configuration


0.3 mm
39 pins
1 pcs



TIANMA TM035WDHG03 Backlight Details

Backlight Features :
Type
WLED
Quantity
6S1P
Position
Edge light type
Replacement
-
Shape
1 string
Life Time
-
Lamp Electrical :
Voltage Supply
18.0/19.2/21.6V (Min./Typ./Max.)
Current Supply
20/30mA (Typ./Max.)
Consumption
384mW (Typ.)
Interface Features :
Position
-
Type
Included in panel signal interface
Backlight Driver :
No



TIANMA TM035WDHG03 Packing Details

Package Box : Quantity Weight Box Size
216 pcs / box 13.2±0.6 Kgs 544×365×250 mm (L×W×H)



 FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
