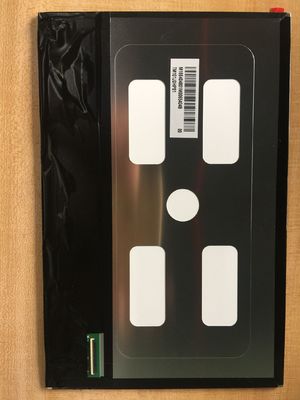

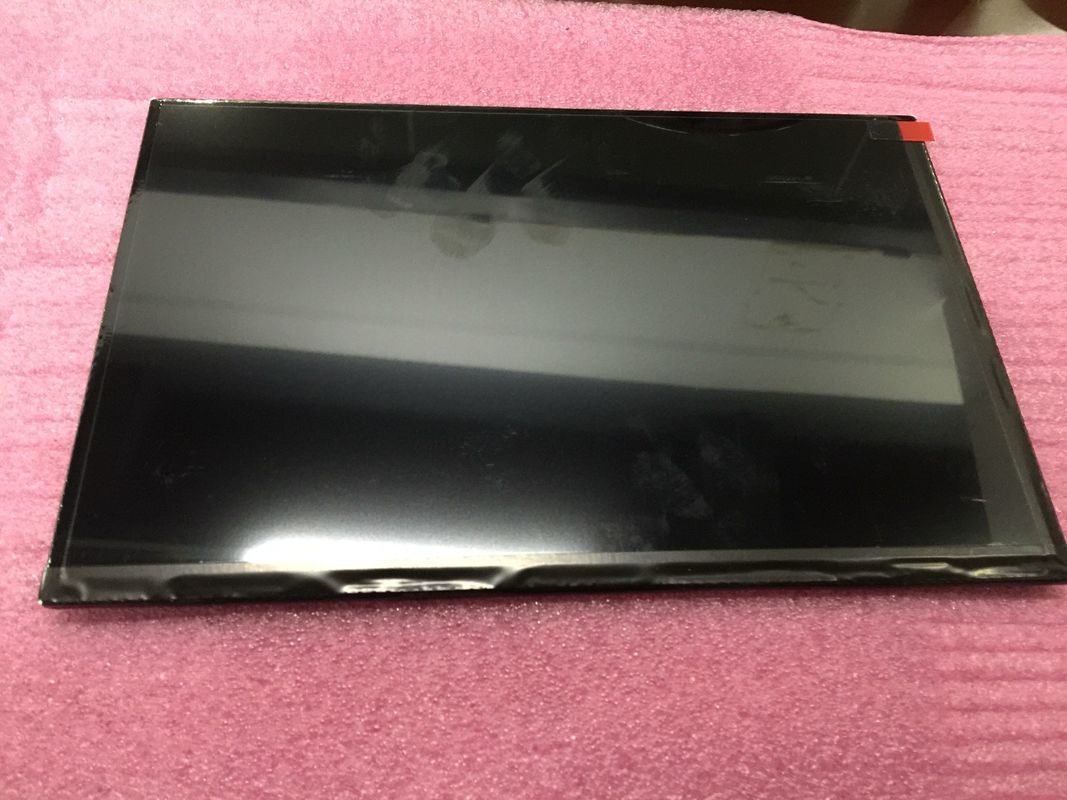

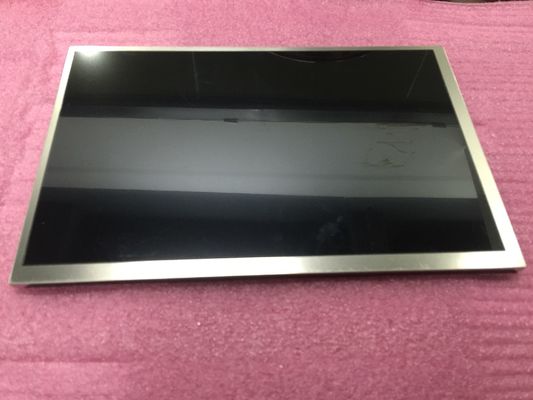

Product Details:
|
| MODEL NUMBER: | TM101JDHG38 | BRAND: | TIANMA |
|---|---|---|---|
| SIZE: | 10.41inch | RESOLUTION: | 1280(RGB)×800 [WXGA] 149PPI |
| BRIGHTNESS: | 400 Cd/m² (Typ.) | Viewing Angle: | 85/85/85/85 (Typ.)(CR≥10) |
| TEMPERATURE RANGE: | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C | ||
| Highlight: | XGA TIANMA LCD Screen,WQVGA TIANMA TFT LCD |
||
| Basic Information : | Brand Name | Model Name | Type | Model Alias |
|---|---|---|---|---|
| TM101JDHG38 | a-Si TFT-LCD , LCM | - | ||
| Maximum Ratings : | RoHS | Operating Temperature | Storage Temperature | Vibration Level |
| -20 ~ 70 °C | -30 ~ 80 °C |
| Screen Size : | 10.1" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Number | Pixel Format | Dot Pitch (H×V) | Pixel Pitch (H×V) |
| 1280(RGB)×800, WXGA | RGB Vertical Stripe | 0.0565×0.1695 mm | 0.1695×0.1695 mm [149PPI] | |
| Mechanical Size : | Display Area (H×V) | Bezel Opening (H×V) | Overall Dimension (H×V) | Overall Depth |
| 216.96×135.6 mm | 219.96×138.6 mm | 231.22×150.6 mm | 4.4/6.6 (Typ./Max.) mm | |
| Outline Features : | Form Shape | Aspect Ratio (H:V) | Orientation | Shape Style |
| Flat Rectangle | 16:10 | Landscape type | ||
| Other Spec : | Mass | Panel Cover | Surface Treatment | |
| 276g | - | Hard coating | ||
| Holes & Brackets : | Without | |||
| Basic Information : | Luminance | Work Mode | Contrast Ratio |
|---|---|---|---|
| 400 cd/m² (Typ.) | SFT, Normally Black, Transmissive | 800:1 (Typ.) (Transmissive) | |
| Good View at | Viewing Angle | Response Time | |
| Symmetry | 85/85/85/85 (Typ.)(CR≥10) | 25 (Typ.)(Tr+Td) (ms) | |
| Dispaly Color : | Color Temperature: | Support Color | Color Coordinate |
| 7236K | 262K/16.7M (6-bit / 8-bit) | X:0.303; Y:0.315 | |
| 1931 Color Gamut : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 55% | 77% | 58% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 57% | 41% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| White Uniformity : | 1.25/1.33 (Typ./Max.)(9 points) | ||
| Refresh Rate : | 60Hz |
|---|---|
| Reverse Scan : | No |
| Driver IC List: | COG Built-in ST5821CA*3 + ST5084CA*1 |
| Back-light Features: | Type | Position | Life(Hours) | Amount | Shape | Replacement |
|---|---|---|---|---|---|---|
| WLED | Edge light type | 30K(Typ.) | 6S5P | Array | - | |
| Interface Features : | WLED Driver State | Physical Type | Interface Position | |||
| With LED Driver | Included in signal interface | - | ||||
| WLED Driver Electrical : | Input Voltage | Input Current | Power Consumption | |||
| 5.5/12.0/21.0V (Min./Typ./Max.) | 322mA (Typ.) | 3.86W (Typ.) | ||||
| Signal Electrical : | Input Voltage | Input Current | Power Consumption | |||
|---|---|---|---|---|---|---|
| 3.3V (Typ.) | 280mA (Typ.) | 924mW (Typ.) | ||||
| Interface Features : | Signal Type | Physical Type | Interface Position | |||
| LVDS (1 ch, 6/8-bit) | Connector | |||||
| Interface Detail : | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
| JAE | HD1S040HA1 | 1 pcs | 40 pins | 0.5 mm | ||
