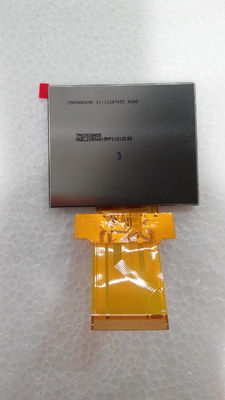

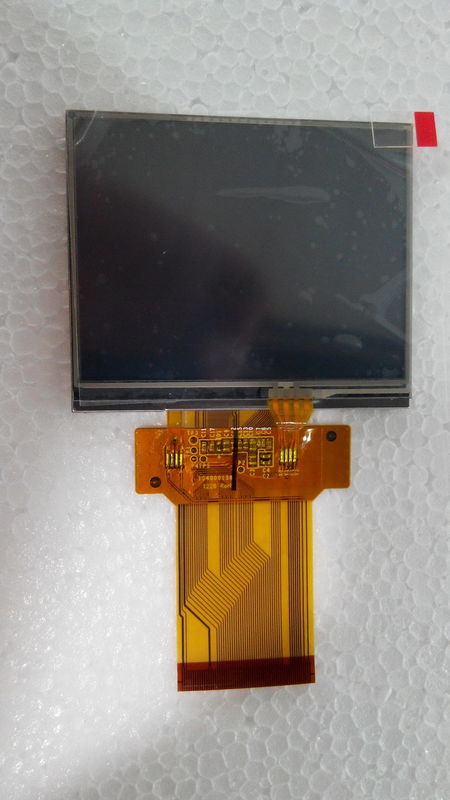

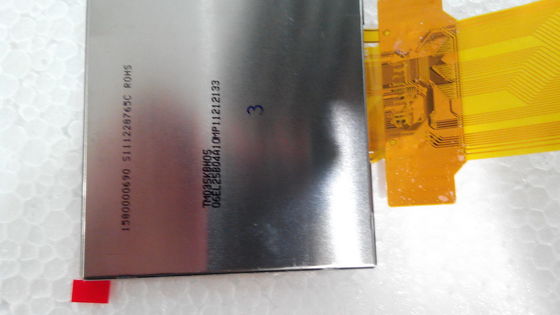

Product Details:
|
| MODEL NUMBER: | TM035KBH05 | BRAND: | TIANMA |
|---|---|---|---|
| SIZE: | 3.5 Inch | RESOLUTION: | 320(RGB)×240 (QVGA) 115PPI |
| BRIGHTNESS: | 350 Cd/m² (Typ. | Viewing Angle: | 60/60/40/60 (Typ.)(CR≥10) |
| TEMPERATURE RANGE: | Storage Temp.: -30 ~ 70 °C Operating Temp.: -20 ~ 60 °C | ||
| Highlight: | XGA TIANMA LCD Screen,WQVGA TIANMA TFT LCD |
||
| Basic Information : | Brand | Model | TM035KBH05 | |
|---|---|---|---|---|
| Type | LCM a-Si TFT-LCD | Used For |
|
|
| Screen Size | 3.5" | Alias | - | |
| Environment : | Storage Temp. | -30 ~~ 70 °C | Operating Temp. | -20 ~~ 60 °C |
| RoHS | Vibration | - | ||
| Typical Features : |
|
|||
| Remarks : | 3 in 1 FPC; Down side FPC (62.90mm length) | |||
| Pixel Features : | Resolution | 320(RGB)×240, QVGA | Dot Pitch(mm) | 0.073×0.219 (H×V) |
|---|---|---|---|---|
| Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.219×0.219 (H×V) [115PPI] | |
| Mechanical Size : | Active Area(mm) | 70.08(H) × 52.56(V) | Bezel Area(mm) | 72.08(H) × 54.56(V) |
| Outline Dim.(mm) | 76.9(H) × 63.9(V) | Depth(mm) | 4.0±0.2 | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 4:3 (H:V) | Orientation | Landscape type | |
| Touch Panel : | Touch Points | - | Touch Panel | 4-wire Resistive Touch |
| TP Controller | Without touch controller | Touch Signal | - | |
| Other Spec : | Weight | TBD | Treatment | Clear, Hard coating (3H) |
| Basic Information : | Luminance(cd/m²) | 350 (Typ.) | Contrast Ratio | 350:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 60/60/40/60 (Typ.)(CR≥10) | Display Mode | TN, Normally White, Transmissive | |
| Best View on | 12 o'clock | Response(ms) | 25 (Typ.)(Tr+Td) | |
| Color Performance : | White Coordinate | X:0.310; Y:0.333 | Display Colors | 16.7M |
| Color Temperature | 6610K | White Uniformity | 1.25/1.33 (Typ./Max.)(9 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 49% | sRGB | 67% coverage |
| Adobe RGB | 51% coverage | DCI-P3 | 51% coverage | |
| Rec.2020 | 37% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Frame Rate : | 60Hz |
|---|---|
| Reverse Scan : | No |
| Driver IC : | Built-in NT39016D |
| Time Controller (T-CON) : | Embedded T-CON |
| Signal Electrical : | Voltage Supply | 3.3V (Typ.) | Current Supply | - | ||
|---|---|---|---|---|---|---|
| Consumption | 35/50mW (Typ./Max.) | |||||
| Signal Type : | Digital RGB (8/24-bit) + SPI, CCIR601/656 | Signal Voltage | 0≤VIL≤0.2VCC; 0.8VCC≤VIH≤VCC | |||
| Interface Features : | Position | - | Type | FPC | ||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| 1 pcs | 60 pins | 0.5 mm | ||||
| Backlight Features: | Shape | 1 string | Type | WLED | Position | Edge light type |
|---|---|---|---|---|---|---|
| Replacement | - | Quantity | 6S1P | Life Time | 30K(Typ.) (Hours) | |
| Lamp Electrical : | Voltage Supply | 19.2V (Typ.) | Current Supply | 20/25mA (Typ./Max.) | ||
| Consumption | 384mW (Typ.) | |||||
| Interface Features : | Position | - | Type | Included in panel signal interface | ||
| Backlight Driver : | No | |||||
| Package Box : | Quantity | Weight | Box Size |
|---|---|---|---|
| 168 pcs / box | 10.617±5% Kgs | 530×350×250 mm (L×W×H) |
FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
