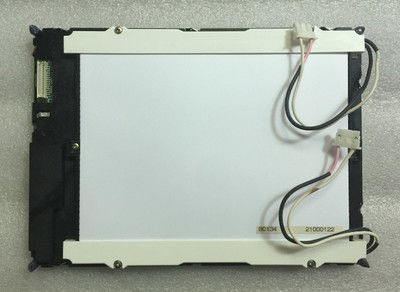

Product Details:
|
| Panel Size: | 6.4" | Panel Model: | LQ64D341 |
|---|---|---|---|
| Panel Type: | A-Si TFT-LCD, LCM | Resolution: | 640(RGB)×480, VGA, 124PPI |
| Display Area: | 130.56(W)×96.96(H) Mm | Outline Size: | 175(W)×126.5(H) Mm |
| Brightness: | 300 Cd/m² (Typ.) | Viewing Angle: | 70/70/40/70 (Typ.)(CR≥5) |
| Lamp Type: | 2 Pcs CCFL , 50K Hours , Without Driver | Environment: | Operating Temp.: 0 ~ 55 °C ; Storage Temp.: -25 ~ 70 °C |
| Highlight: | CCFL LVDS Industrial LCD Panel,QVGA Sharp TFT LCD Display |
||
LQ64 Series LQ64D343R LQ64D343 LQ64D342 LQ64D341
| Basic Information : | Manufacturer | Panel Model | Panel Type | Alias |
|---|---|---|---|---|
| SHARP | LQ64D341 | a-Si TFT-LCD , LCM | - | |
| Environment : | RoHS State | Operating Temp. | Storage Temp. | Vibration Level |
| 0 ~ 55 °C | -25 ~ 70 °C | - |
| Basic Information : | Luminance (cd/m²) | Viewing Angle (L/R/U/D) | Response Time (ms) |
|---|---|---|---|
| 300 (Typ.) | 70/70/40/70 (Typ.)(CR≥5) | 20/40 (Typ.)(Tr/Td) | |
| Best View on | Display Mode | Contrast Ratio | |
| 6 o'clock | TN, Normally White, Transmissive | 100 : 1 (Min.) (Transmissive) | |
| Dispaly Color : | Color Temperature | Display Colors | White Coordinate |
| 6518K | 262K (6-bit) | X:0.313; Y:0.325 | |
| White Variation : | 1.45 (Max.)(5 points) | ||
| Panel Size : | 6.4" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Format | Pixel Configuration | Pixel Pitch (mm) | Dot Pitch (mm) |
| 640(RGB)×480 [VGA] | RGB Vertical Stripe | 0.204×0.202 [124PPI] | 0.068×0.202 | |
| Mechanical Size : | Active Area (mm) | Bezel Area (mm) | Outline Dimension (mm) | Outline Depth (mm) |
| 130.56(H) × 96.96(V) | 136.2(H) × 100.0(V) | 175(H) × 126.5(V) | 12.0 (Typ.) mm | |
| Outline Features : | Form Factor | Orientation | Aspect Ratio | Shape Style |
| Flat Rectangle | Landscape type | 4:3 (H:V) | ||
| Mounting : | Face mounting holes (4-Ф2.2) | |||
| Other Detail : | Weight | Panel Cover | Treatment | |
| 290±20g | - | Hard coating (3H), Antireflection | ||
| Lamp Features: | Type | Position | Quantity | Shape | Life(Hours) | Lamp Exchange |
|---|---|---|---|---|---|---|
| CCFL | Edge light type (Top and Bottom) | 2 pcs | Straight | 50K(Typ.) | Replaceable (LQ0B197) | |
| CCFL Electrical : | Voltage Supply | Current Supply | Power | |||
| 360V (Typ.) | 2.0/6.0/6.5mA (Min./Typ./Max.) | 4.32W (Typ.) | ||||
| Operating Frequency | Kick-off Voltage | |||||
| 20/35/60KHz (Min./Typ./Max.) | 800/1000V (Max.)(Ta=+25/0℃) | |||||
| Interface Features : | Position | Backlight Driver | Type | |||
| - | No | Connector | ||||
| Interface Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
| JST | BHR-03VS-1 | 4.0 mm | 3 pins | 2 pcs | BLL-3PINS-HNL | |
| Panel Driving Electrical : | Voltage Supply | Current Supply | Power | |||
|---|---|---|---|---|---|---|
| 5.0V (Typ.)(VCC) | 250mA (Typ.)(ICC) | - | ||||
| Voltage for Display Signals : | VIL≤0.3VCC; 0.7VCC≤VIH | |||||
| Interface Features : | Position | Signal | Type | |||
| - | Parallel RGB (1 ch, 6-bit) | Connector | ||||
| Connector Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
| HRS | DF9BA-31P-1V | 1.0 mm | 31 pins | 1 pcs | DRGB-31P1C6B-010K | |
