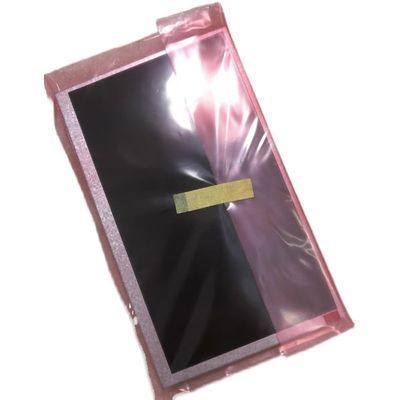

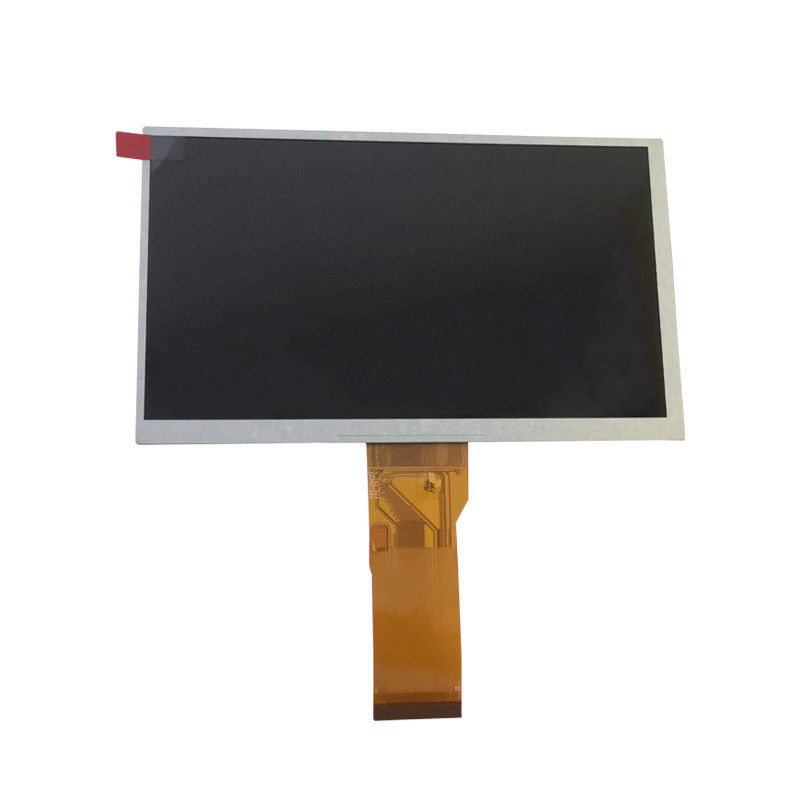

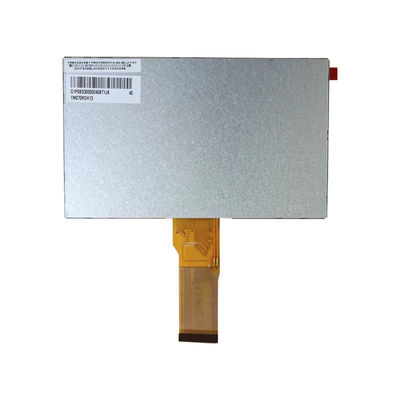

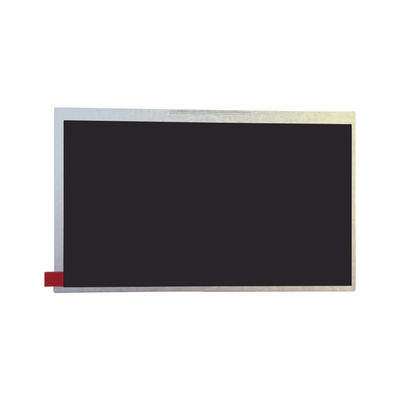

Product Details:
|
| MODEL NUMBER: | TM070RDHG34 | BRAND: | TIANMA |
|---|---|---|---|
| SIZE: | 7.0INCH | RESOLUTION: | 800(RGB)×480 (WVGA) 134PPI |
| BRIGHTNESS: | 1000 Cd/m² (Typ. | Viewing Angle: | 70/70/60/70 (Typ.)(CR≥10) |
| TEMPERATURE RANGE: | Storage Temp.: -40 ~ 90 °C Operating Temp.: -30 ~ 85 °C ; Vibration Level: 6.8G (66.64 M/s²) | ||
| High Light: | QVGA TIANMA LCD Panel,SVGA TIANMA LCD Panel |
||
| Basic Information : | Brand | Model | TM070RDHG34 | |
|---|---|---|---|---|
| Type | LCM a-Si TFT-LCD | Used For |
|
|
| Screen Size | 7.0" | Alias | - | |
| Environment : | Storage Temp. | -40 ~~ 90 °C | Operating Temp. | -30 ~~ 85 °C |
| RoHS | Vibration | 6.8G (66.64 m/s²) | ||
| Typical Features : |
|
|||
| Pixel Features : | Resolution | 800(RGB)×480, WVGA | Dot Pitch(mm) | 0.0642×0.1790 (H×V) |
|---|---|---|---|---|
| Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.1926×0.1790 (H×V) [134PPI] | |
| Mechanical Size : | Active Area(mm) | 154.08(H) × 85.92(V) | Bezel Area(mm) | 157.08(H) × 89.39(V) |
| Outline Dim.(mm) | 164.9(H) × 100(V) | Depth(mm) | 5.7±0.3 | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 16:9 (H:V) | Orientation | Landscape type | |
| Mounting : | Without | |||
| Other Spec : | Weight | TBD | Treatment | Antiglare |
| Basic Information : | Luminance(cd/m²) | 1000 (Typ.) | Contrast Ratio | 800:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 70/70/60/70 (Typ.)(CR≥10) | Display Mode | TN, Normally White, Transmissive | |
| Best View on | 6 o'clock | Response(ms) | 25 (Typ.)(Tr+Td) | |
| Color Performance : | White Coordinate | - | Display Colors | 16.7M (8-bit) |
| Color Temperature | - | White Uniformity | 1.33/1.43 (Typ./Max.)(9 points) | |
| Dispaly Performance : | Outdoor Visibility | Sunlight Readable | Transmissivity |
| Frame Rate : | 60Hz |
|---|---|
| Reverse Scan : | Yes (U/D, L/R) |
| Driver IC : | COG Built-in HX8264D + HX8664B |
| Time Controller (T-CON) : | Embedded T-CON |
| Signal Electrical : | Voltage Supply | 3.3/10.4/16.0/-7.0V (Typ.)(VCC/AVDD/VGH/VGL) | Current Supply | 8/20/0.2/0.2mA (Typ.)(ICC/AIDD/IGH/IGL) | ||
|---|---|---|---|---|---|---|
| Consumption | 250/400mW (Typ./Max.) | |||||
| Signal Type : | Parallel RGB (1 ch, 8-bit) | Signal Voltage | 0≤VIL≤0.3VCC; 0.7VCC≤VIH≤VCC | |||
| Interface Features : | Position | - | Type | FPC | ||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| 1 pcs | 50 pins | 0.5 mm | ||||
| Backlight Features: | Shape | Array | Type | WLED | Position | Edge light type |
|---|---|---|---|---|---|---|
| Replacement | - | Quantity | 3S8P | Life Time | 50K(Typ.) (Hours) | |
| Lamp Electrical : | Voltage Supply | 9.6/10.8V (Typ./Max.) | Current Supply | 200mA (Typ.) | ||
| Consumption | 1.92W (Typ.) | |||||
| Interface Features : | Position | - | Type | Included in panel signal interface | ||
| Backlight Driver : | No | |||||
| Package Box : | Quantity | Weight | Box Size |
|---|---|---|---|
| 50 pcs / box | - | 530×350×250 mm (L×W×H) |
FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
