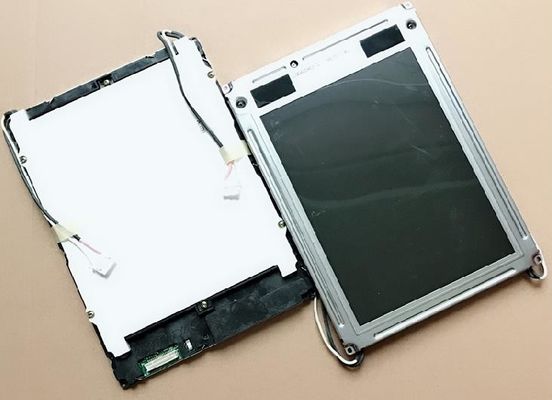

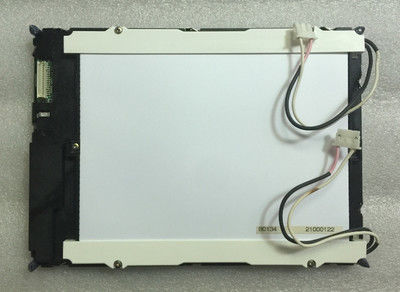

6.4" LCM640(RGB)×480, VGA, 124PPI   300 cd/m² Sharp TFT LCD Display LQ64D343

LQ64 Series LQ64D343R LQ64D343 LQ64D342 LQ64D341

LQ64D343 supports display 640(RGB)×480 (VGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 130.56(W)×96.96(H) mm, outline size of 175(W)×126.5(H) mm, viewing area size of 136.2(W)×100.0(H) mm, with surface treament of Antiglare (Haze 28%), Hard coating (3H), net weight of 280g (Max.). As a TN, Normally White, Transmissive LCM product, LQ64D343 can provides 300 cd/m² display brightness 150:1 transimissive contrast ratio, 70/70/40/70 (Typ.)(CR≥5) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 20/40 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors. This product adopted 2 pcs CCFL as it's backlight systerm which was placed as Edge light type (Top and Bottom) and have a working life time of 50K hours, external backlight driver is additionally needed. LQ64D343 utilizes Parallel RGB (1 ch, 6-bit) as it's signal inputting systerm, which connected by 31 pins Connector with power supply voltage of 5.0V (Typ.)
