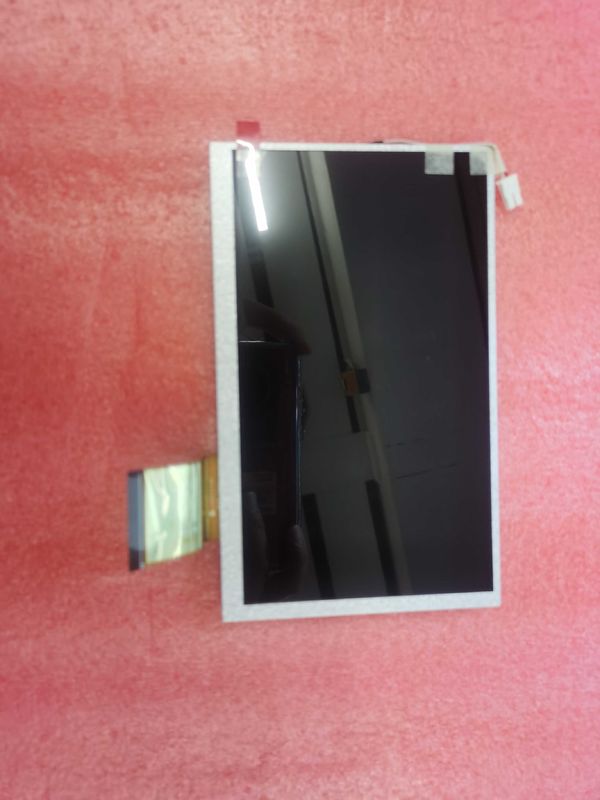

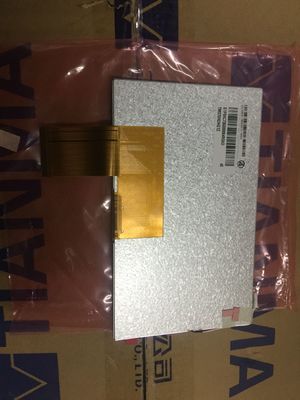

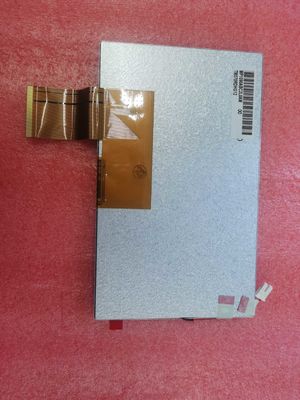

TM070RDHG12 TIANMA 7.0" 800(RGB)×480 350 cd/m² INDUSTRIAL LCD DISPLAY

TM070RDHG12 TIANMA 7.0" 800(RGB)×480 350 cd/m² INDUSTRIAL LCD DISPLAY
TM070RDHG12 TIANMA 7.0" 800(RGB)×480 350 cd/m² INDUSTRIAL LCD DISPLAY TM070RDHG12 TIANMA 7.0" 800(RGB)×480 350 cd/m² INDUSTRIAL LCD DISPLAY TM070RDHG12 TIANMA 7.0" 800(RGB)×480 350 cd/m² INDUSTRIAL LCD DISPLAY TM070RDHG12 TIANMA 7.0" 800(RGB)×480 350 cd/m² INDUSTRIAL LCD DISPLAY

Large Image :  TM070RDHG12 TIANMA 7.0" 800(RGB)×480 350 cd/m² INDUSTRIAL LCD DISPLAY

Product Details:
Place of Origin: JAPAN
Brand Name: TIANMA
Certification: ISO9001
Model Number: TM070RDHG12
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: STANDARD PACKING
Delivery Time: 1-2 DAYS
Payment Terms: TT/PAYPAL/ESCROW/WESTERN UNION
Supply Ability: 1000PCS
Contact Now

TM070RDHG12 TIANMA 7.0" 800(RGB)×480 350 cd/m² INDUSTRIAL LCD DISPLAY

Description
MODEL NUMBER: TM070RDHG12 BRAND: TIANMA
SIZE: 7.0"inch RESOLUTION: 800(RGB)×480, WVGA, 134PPI
BRIGHTNESS: 350 Cd/m² (Typ.) Viewing Angle: 70/70/60/70 (Typ.)(CR≥10)
TEMPERATURE RANGE: Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C SIGNAL LNTERFACE: LVDS
High Light:

QVGA TIANMA LCD Panel

,

SVGA TIANMA LCD Panel

TIANMA TM070RDHG12 Application Details

Basic Info :
Panel Brand

Panel Model
TM070RDHG12
Diagonal Size
7.0"
Application

  • TM070RDHG12 TIANMA 7.0" 800(RGB)×480 350 cd/m² INDUSTRIAL LCD DISPLAY 0
Panel Type
a-Si TFT-LCD , LCM
Model Alias
-
Reliability :
Operating Temp.
-20 ~ 70 °C
Storage Temp.
-30 ~ 80 °C
RoHS State

Vibration Rating
-
Specific Features :

  • U/D,L/R Reverse
  • 6/8 bit
  • Matte



TIANMA TM070RDHG12 Mechanical Details

Pixel Features :
Pixel Format
800(RGB)×480, WVGA
Dot Pitch
0.0642×0.1790 mm (H×V)
Configuration
RGB Vertical Stripe
Pixel Pitch
0.1926×0.1790 mm (H×V) [134PPI]
Mechanical Size :
Display Area
154.08×85.92 mm (H×V)
Bezel Area
157.08×89.39 mm (H×V)
Outline Dim.
164.9×100 mm (H×V)
Outline Depth
5.7±0.3 mm
Outline Features :
Form Factor
Flat Rectangle
Orientation
Landscape type
Aspect Ratio
16:9 (H:V)
Shape Style

Holes & Brackets :
Without
Other Features :
Weight
165g (Typ.)
Surface
Antiglare



TIANMA TM070RDHG12 Optical Details

Basic Information :
Brightness
350 cd/m² (Typ.)
Contrast Ratio
500:1 (Typ.) (Transmissive)
Viewing Angle
70/70/60/70 (Typ.)(CR≥10)
Optical Mode
TN, Normally White, Transmissive
Viewing Direction
12 o'clock
Response Time
20 (Typ.)(Tr+Td) ms
Color Performance :
Chromaticity
Wx:0.324; Wy:0.345
Color Numbers
262K/16.7M (6-bit / 6-bit + Dithering)
Color Temperature
5864K
Uniformity
1.25/1.33 (Typ./Max.)(9 points)
1931 Color Gamlt :
NTSC Ratio
51%
sRGB
71% coverage
Adobe RGB
54% coverage
DCI-P3
53% coverage
Rec.2020
38% coverage
Remarks
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)



TIANMA TM070RDHG12 Electronics Details

Frame Frequency :
60Hz
Reverse Scan :
Yes (U/D, L/R)
D-IC Detail :
COG Suggest HX8264
Time Controller (T-CON) :
Embedded T-CON



TIANMA TM070RDHG12 Backlight Details

Back-light Features :
Lamp Type
WLED
Amount
3S7P
Life Time
20K(Typ.) (Hours)
Replacement
-
Lamp Shape
Array
Position
Edge light type
Lamp Electrical :
Voltage Input
9.6±0.6V
Current Input
140/175mA (Typ./Max.)
Consumption
1.34W (Typ.)
Interface Features :
Type
Included in panel signal interface
Position
-
Lamp Driver
No



TIANMA TM070RDHG12 Interface Detail

Signal Systerm :
Parallel RGB (1 ch, 6/8-bit)
Logic Voltage
0≤VIL≤0.3VCC; 0.7VCC≤VIH≤VCC
Signal Electrical :
Voltage Input
3.3/10.6/10.6/-7V (Typ.)(VCC/AVDD/VGH/VGL)
Current Input
10/40/0.3/0.3mA (Max.)(ICC/IDD/IGH/IGL)
Interface Features :
Type
FPC
Position
-
FPC Detail :
Brand
Model
Pin Pitch
Pins
Amount
Configuration


0.5 mm
60 pins
1 pcs

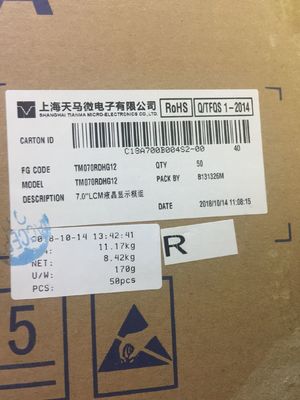

TIANMA TM070RDHG12 Carton Details

Package Carton : Amount Net Weight Carton Size (L×W×H)
50 pcs / box 16.4±0.8 Kgs 530×350×250 mm



 FAQ:
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.

TM070RDHG12 TIANMA 7.0" 800(RGB)×480 350 cd/m² INDUSTRIAL LCD DISPLAY 4
