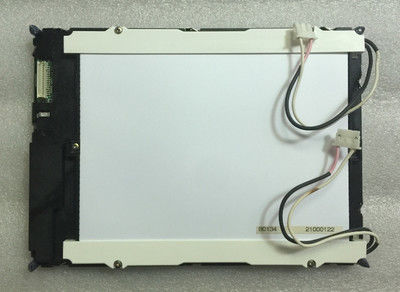

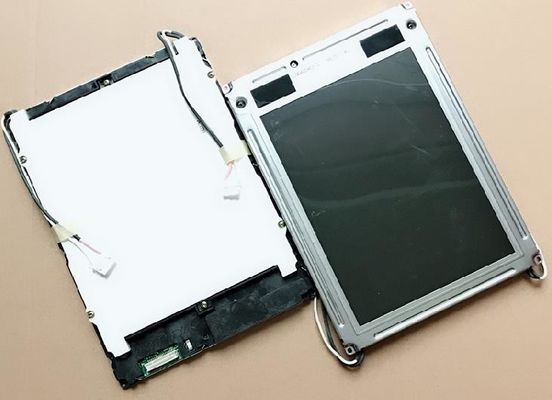

Product Details:
|
| Model Name: | LQ64D343R | Size: | 6.4" |
|---|---|---|---|
| Active Area(mm): | 130.56 × 96.96 (H×V) | Bezel Area(mm): | 136.2 × 100.0 (H×V) |
| Pixel Number: | 640×480RGB | Screen Type: | LCM , A-Si TFT-LCD |
| Backlight: | 2 Pcs CCFL , 50K Hours , No Driver | Luminance: | 300cd/m² |
| Highlight: | CCFL LVDS Industrial LCD Panel,QVGA Sharp TFT LCD Display |
||
LQ64 Series LQ64D343R LQ64D343 LQ64D342 LQ64D341
| Basic Information : | Brand | SHARP | Model | LQ64D343R |
|---|---|---|---|---|
| Type | LCM a-Si TFT-LCD | Used For | ||
| Screen Size | 6.4" | Alias | LQ64D343 R | |
| Environment : | Storage Temp. | -25 ~~ 70 °C | Operating Temp. | 0 ~~ 55 °C |
| RoHS | Vibration | - |
| Pixel Features : | Resolution | 640(RGB)×480, VGA | Dot Pitch(mm) | 0.068×0.202 (H×V) |
|---|---|---|---|---|
| Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.204×0.202 (H×V) [124PPI] | |
| Mechanical Size : | Active Area(mm) | 130.56(H) × 96.96(V) | Bezel Area(mm) | 136.2(H) × 100.0(V) |
| Outline Dim.(mm) | 175(H) × 126.5(V) | Depth(mm) | 12.0 (Typ.) | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 4:3 (H:V) | Orientation | Landscape type | |
| Mounting : | Face mounting holes (2-Φ2.2; 2-2.2×3.0) | |||
| Other Spec : | Weight | 280g (Max.) | Treatment | Antiglare (Haze 28%), Hard coating (3H) |
| Basic Information : | Luminance(cd/m²) | 300 (Typ.) | Contrast Ratio | 150:1 (Min.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 70/70/40/70 (Typ.)(CR≥5) | Display Mode | TN, Normally White, Transmissive | |
| Best View on | 6 o'clock | Response(ms) | 20/40 (Typ.)(Tr/Td) | |
| Color Performance : | White Coordinate | X:0.313; Y:0.325 | Display Colors | 262K (6-bit) |
| Color Temperature | 6518K | White Uniformity | 1.45 (Max.)(5 points) |
| Signal Electrical : | Voltage Supply | 5.0V (Typ.)(VCC) | Current Supply | 250/360mA (Typ./Max.)(ICC) | ||
|---|---|---|---|---|---|---|
| Signal Type : | Parallel RGB (1 ch, 6-bit) | Signal Voltage | VIL≤0.3VCC; 0.7VCC≤VIH | |||
| Interface Features : | Position | - | Type | Connector | ||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| HRS | DF9BA-31P-1V | 1 pcs | 31 pins | 1.0 mm | DRGB-31P1C6B-010K | |
| Backlight Features: | Shape | Straight | Type | CCFL | Position | Edge light type (Top and Bottom) |
|---|---|---|---|---|---|---|
| Replacement | Replaceable (LQ0B197) | Quantity | 2 pcs | Life Time | 50K(Typ.) (Hours) | |
| Lamp Electrical : | Voltage Supply | 360V (Typ.) | Current Supply | 2.0/6.0/6.5mA (Min./Typ./Max.) | ||
| Frequency | 20/35/60KHz (Min./Typ./Max.) | Startup Voltage | 800/1000V (Max.)(Ta=+25/0℃) | |||
| Consumption | 4.32W (Typ.) | |||||
| Interface Features : | Position | - | Type | Connector | ||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| JST | BHR-03VS-1 | 2 pcs | 3 pins | 4.0 mm | BLL-3PINS-HNL | |
| Backlight Driver : | No | |||||
