LQ7BW566 Sharp 7" LCM 480×234RGB 300 cd/m² INDUSTRIAL LCD DISPLAY

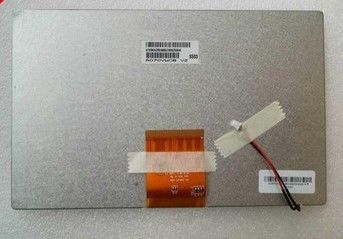

Large Image : LQ7BW566 Sharp 7" LCM 480×234RGB 300 cd/m² INDUSTRIAL LCD DISPLAY

Product Details:

Place of Origin:	JAPAN
Brand Name:	Sharp
Certification:	ISO9001
Model Number:	LQ7BW566

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Delivery Time:	1-2DAYS
Payment Terms:	TT/PAYPAL/ESCROW/WESTERN UNION
Supply Ability:	100PCS

Contact Now

LQ7BW566 Sharp 7" LCM 480×234RGB 300 cd/m² INDUSTRIAL LCD DISPLAY

Description

Size:	7"	Model:	LQ7BW566
Active Area:	155.52(H)×87.75(V) Mm	Pixel Format:	480(RGB)×234 75PPI
Luminance:	300 Cd/m² (Typ.)	Light Source:	CCFL [2 Pcs] , 10K Hours , W/O Driver
Power Supply:	5.3/13/-16V (Typ.)(VSH/VGH/VGL)	Interface Type:	Analog RGB + Composite Video (NTSC/PAL) , 24 Pins Connector
High Light:	CCFL LVDS Industrial LCD Panel , QVGA Sharp TFT LCD Display

LQ7 Series LQ7BW566 LQ7BW556T

Sharp LQ7BW566 Application Details

Basic Info :	Panel Brand SHARP LQ7BW566Panel Model Diagonal Size 7.0" Application a-Si TFT-LCD , LCMPanel Type Model Alias -
Reliability :	Operating Temp. -30 ~ 85 °C Storage Temp. -30 ~ 85 °C RoHS State -Vibration Rating

Sharp LQ7BW566 Optical Details

Basic Information :	Brightness 300 cd/m² (Typ.) Contrast Ratio 60:1 (Min.) (Transmissive) Viewing Angle 65/65/40/65 (Typ.)(CR≥10) Optical Mode TN, Normally White, Transmissive Viewing Direction 6 o'clock Response Time 30/50 (Typ.)(Tr/Td) ms
Color Performance :	Chromaticity Wx:0.313; Wy:0.329 Color Numbers Full color Color Temperature 6485K Uniformity -

Sharp LQ7BW566 Mechanical Details

Pixel Features :	Pixel Format 480(RGB)×234 Dot Pitch 0.108×0.375 mm (H×V) Configuration RGB Vertical Stripe Pixel Pitch 0.324×0.375 mm (H×V) [75PPI]
Mechanical Size :	Display Area 155.52×87.75 mm (H×V) Bezel Area - Outline Dim. 173×106 mm (H×V) Outline Depth 14.7±0.5 mm
Outline Features :	Form Factor Flat Rectangle Orientation Landscape type Aspect Ratio 16:9 (H:V) Shape Style
Holes & Brackets :	Rear mounting holes (4-Φ2.6)
Other Features :	Weight 320±20g Surface Antiglare, Antireflection

Sharp LQ7BW566 Backlight Details

Back-light Features :	Lamp Type CCFL Amount 2 pcs Life Time 10K(Min.) (Hours) Replacement - Lamp Shape - Position Direct light type
Lamp Electrical :	Voltage Input 380±40V Current Input 3.0/6.5/7.0mA (Min./Typ./Max.) Frequency 30/70KHz (Min./Max.) Kick-off Voltage 950/1100V (Max.)(Ta=+25/-30℃) Consumption 5.0/5.9W (Typ.Max.)
Interface Features :	Type Connector Position - Lamp Driver No
Interface Detail :	Brand Model Pin Pitch Pins Amount Configuration JST BHR-02(8.0)VS-1N 8.0 mm 2 pins 2 pcs BLL-2PINS-HL

Sharp LQ7BW566 Electronics Details

Frame Frequency :	60Hz
Reverse Scan :	Yes (U/D, L/R)
Power Consumption :	5.45W (Typ.)
Time Controller (T-CON) :	Embedded T-CON

Sharp LQ7BW566 Interface Detail

Signal Systerm :	Analog RGB + Composite Video (NTSC/PAL) Logic Voltage -
Signal Electrical :	Voltage Input 5.3/13/-16V (Typ.)(VSH/VGH/VGL) Current Input 75/0.9/2.8mA (Typ.)(ISH/IGH/IGL) Consumption 454/558mW (Typ./Max.)
Interface Features :	Type Connector Position -
Connector Detail :	Brand Model Pin Pitch Pins Amount Configuration FCI SFR24R-1STE1 0.8 mm 24 pins 1 pcs
