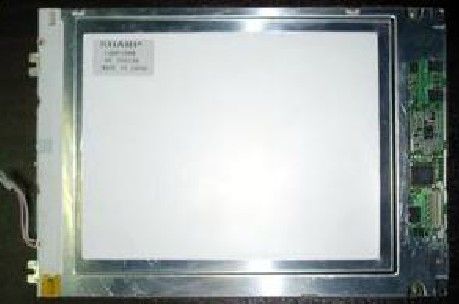

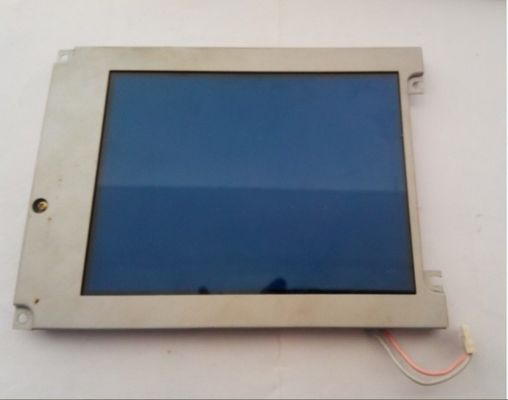

Product Details:
|
| Size: | 8.4" | Model: | LQ9D340 |
|---|---|---|---|
| Pixel Format: | 640(RGB)×480 [VGA] 94PPI | Active Area: | 170.88(H)×129.6(V) Mm |
| Bezel Area: | 175.9(H)×134.6(V) Mm | Luminance: | 115 Cd/m² (Typ.) |
| Viewing Angle: | 50/50/30/50 (Min.)(CR≥10) Left / Right / Up / Down | Outline Dim.: | 216(H)×152.4(V) Mm |
| Light Source: | CCFL [1 Pcs] , 10K Hours , W/O Driver | Environment: | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -25 ~ 60 °C |
| Highlight: | CCFL LVDS Industrial LCD Panel,QVGA Sharp TFT LCD Display |
||
LQ084 Series LQ9D345 LQ9D340H LQ9D340 LQ9D178K LQ9D168K
| Basic Information : | Luminance | 115 cd/m² (Typ.) | Contrast Ratio | 100 : 1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Good View at | 6 o'clock | Response Speed | 20/40 (Typ.)(Tr/Td) (ms) | |
| Viewing Angle | 50/50/30/50 (Min.)(CR≥10) | Operating Mode | TN, Normally White, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Support Color | 262K (6-bit) |
| Color Temperature | 6485K | White Uniformity | 1.45 (Max.)(5 points) |
| Pixel Features : | Number of Pixel | 640(RGB)×480 [VGA] | Arrangement | RGB Vertical Stripe |
|---|---|---|---|---|
| Dot Pitch(W×H) | 0.089×0.270 mm | Pixel Pitch(W×H) | 0.267×0.270 mm [94PPI] | |
| Physical Size : | Active Viewing | 170.88(W)×129.6(H) mm | Overall Dim. | 216(W)×152.4(H) mm |
| Bezel Opening | 175.9(W)×134.6(H) mm | Overall Depth | 7.3 (Typ.) mm | |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio(W:H) | 4:3 | Shape Style | ||
| Fixation : | Face mounting holes (2-Φ2.7, 2-R1.5) | |||
| Other Detail : | Mass | 260±10g | Surface | Clear, Hard coating (2H) |
| Signal Electrical : | Input Current | 220/380mA (Typ./Max.)(ICC) | Input Voltage | 3.3V (Typ.)(VCC) | ||
|---|---|---|---|---|---|---|
| Consumption | - | Signal Interface | Parallel RGB (1 ch, 6-bit) | |||
| Logic Voltage for Signals : | VIL≤0.3VCC; 0.7VCC≤VIH | |||||
| Interface Features : | Position | - | Physical Type | Connector | ||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| HRS | DF9M-31P-1V | 1 pcs | 1.0 mm | 31 pins | DRGB-31P1C6B-010K | |
| Lamp Features: | Lamp Shape | Straight | Lamp Type | CCFL | Position | Edge light type (Bottom side) |
|---|---|---|---|---|---|---|
| Exchange | - | Amount | 1 pcs | Life | 10K(Min.) (Hours) | |
| Lamp Electrical : | Input Current | 2.0/5.5/5.5mA (Min./Typ./Max.) | Input Voltage | 370V (Typ.) | ||
| Frequency | 20/35/60KHz (Min./Typ./Max.) | Turn-on Voltage | 900/1000V (Max.)(Ta=+25/0℃) | |||
| Consumption | 2.0W (Typ.) | |||||
| Interface Features : | Position | - | Physical Type | Connector | ||
| Interface Detail : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| JST | BHR-03VS-1 | 1 pcs | 4.0 mm | 3 pins | BLL-3PINS-HNL | |
| Backlight Driver : | No | |||||
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
