Product Details:
|
| Size: | 8.4" | Brand: | Sharp |
|---|---|---|---|
| Model: | LQ9D340H | Active Area: | 170.88(H)×129.6(V) Mm |
| Pixel Format: | 640(RGB)×480 [VGA] 94PPI | Light Source: | CCFL [1 Pcs] |
| Configuration: | RGB Vertical Stripe | Interface Type: | Parallel RGB (1 Ch, 6-bit) Connector |
| Highlight: | CCFL LVDS Industrial LCD Panel,QVGA Sharp TFT LCD Display |
||
LQ084 Series LQ9D345 LQ9D340H LQ9D340 LQ9D178K LQ9D168K
| Basic Information : | Manufacturer | Panel Model | Panel Type | Alias |
|---|---|---|---|---|
| SHARP | LQ9D340H | a-Si TFT-LCD , LCM | - | |
| Environment : | RoHS State | Operating Temp. | Storage Temp. | Vibration Level |
| - | - | - |
| Basic Information : | Luminance (cd/m²) | Viewing Angle (L/R/U/D) | Response Time (ms) |
|---|---|---|---|
| - | - | - | |
| Best View on | Display Mode | Contrast Ratio | |
| - | TN, Normally White, Transmissive | - | |
| Dispaly Color : | Color Temperature | Display Colors | White Coordinate |
| - | 262K (6-bit) | - |
| Panel Size : | 8.4" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Format | Pixel Configuration | Pixel Pitch (mm) | Dot Pitch (mm) |
| 640(RGB)×480 [VGA] | RGB Vertical Stripe | 0.267×0.270 [94PPI] | 0.089×0.270 | |
| Mechanical Size : | Active Area (mm) | Bezel Area (mm) | Outline Dimension (mm) | Outline Depth (mm) |
| 170.88(H) × 129.6(V) | - | - | - | |
| Outline Features : | Form Factor | Orientation | Aspect Ratio | Shape Style |
| Flat Rectangle | Landscape type | 4:3 (H:V) | ||

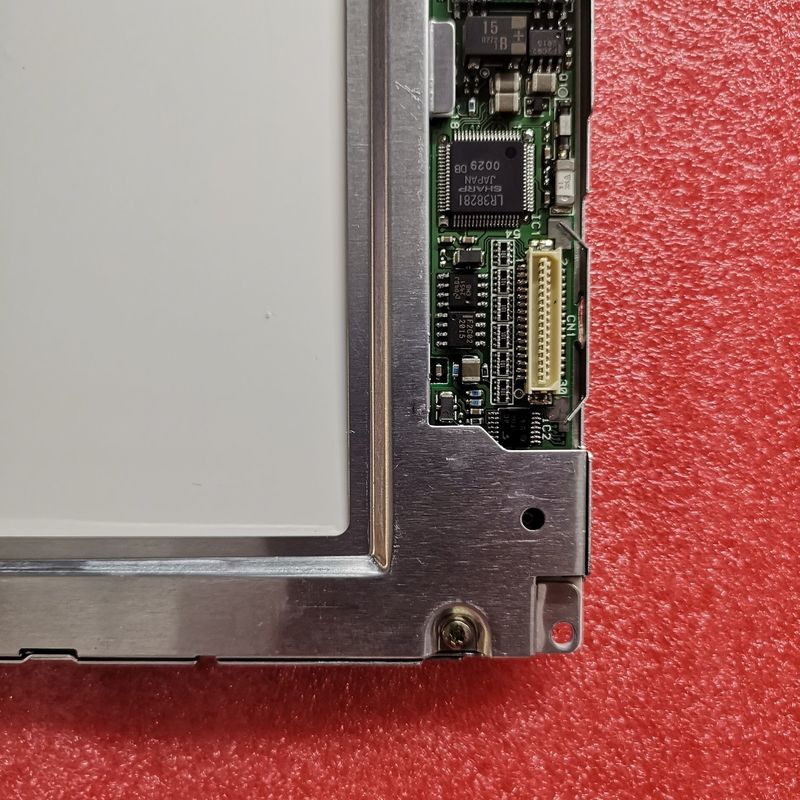

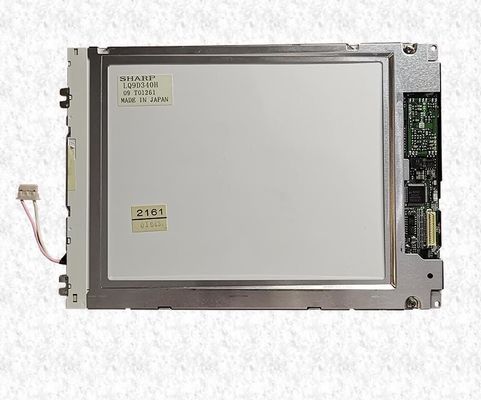

LQ9D340H is a 8.4 inch diagonal a-Si TFT-LCD display screen product from Sharp, with a built-in CCFL backlight, without touch screen. LQ9D340H supports display 640(RGB)×480 (VGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 170.88(W)×129.6(H) mm. As a TN, Normally White, Transmissive LCM product, LQ9D340H can provides . Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors.
