Product Details:
|

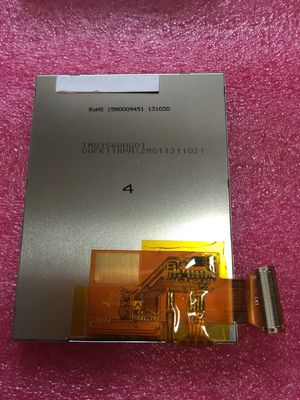

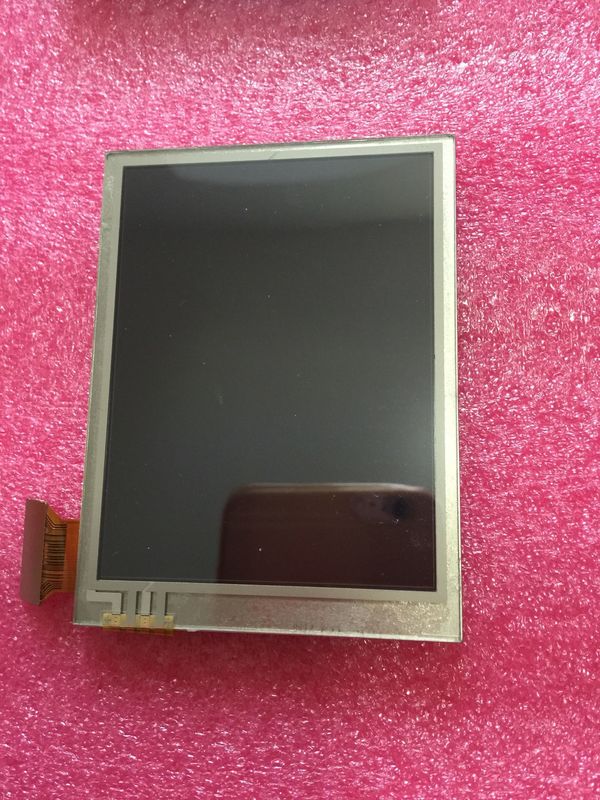

| MODEL NUMBER: | TM035WBHG01 | BRAND: | TIANMA |
|---|---|---|---|
| SIZE: | 3.5 Inch | RESOLUTION: | 480(RGB)×640, VGA, 228PPI |
| BRIGHTNESS: | 250CD/M2 | Viewing Angle: | 60/70/70/70 (Typ.)(CR≥10) |
| TEMPERATURE RANGE: | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C | ||
| High Light: | QVGA TIANMA LCD Panel,SVGA TIANMA LCD Panel |
||
| Basic Information : | Brand | Model | Type | Model Alias |
|---|---|---|---|---|
| TM035WBHG01 | a-Si TFT-LCD , LCM | - | ||
| Reliability : | RoHS | Operating Temperature | Storage Temperature | Vibration Resistance |
| -20 ~ 70 °C | -30 ~ 80 °C | - | ||
| Designed For : | ||||
| Specific Features : |
|
|||
| Panel Size : | 3.5 inch | |||
|---|---|---|---|---|
| Pixel Features : | Resolution | Pixel Arrangement | Dot Pitch (W×H) | Pixel Pitch (W×H) |
| 480(RGB)×640, VGA | RGB Vertical Stripe | 0.037×0.111 mm | 0.111×0.111 mm [228PPI] | |
| Mechanical Size : | Active Area (W×H) | Bezel Area (W×H) | Outline Dimension (W×H) | Outline Depth |
| 53.28×71.04 mm | - | 64×85 mm | 4.33±0.3 mm | |
| Outline Features : | Form Style | Aspect Ratio | Orientation | Shape Style |
| Flat Rectangle | 3:4 (W : H) | Portrait type | ||
| Touchscreen : | Touch Points | TP Controller | Signal Type | Touch Tech |
| 1 point | Without touch controller | - | 4-wire Resistive Touch | |
| Other Features : | Panel Cover | Weight | Surface | |
| - | - | Antiglare | ||
| Basic Information : | Brightness | Operating Mode | Contrast Ratio |
|---|---|---|---|
| 250 cd/m² (Typ.) | TN, Normally White, Transmissive | 500:1 (Typ.) (Transmissive) | |
| Viewing Angle(L/R/U/D) | Viewing Direction | Response Speed | |
| 60/70/70/70 (Typ.)(CR≥10) | 9 o'clock | 25 (Typ.)(Tr+Td) (ms) | |
| Dispaly Color : | Color Temperature | Color Amount | White color Chromaticity |
| 7272K | 262K (6-bit) | X:0.301; Y:0.321 | |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 54% | 74% | 56% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 56% | 40% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| Luminance Variation : | 1.33/1.43 (Typ./Max.)(9 points) | ||
| D-IC Detail : | Built-in HX8363-A |
|---|
| Signal Electrical : | Current Input | Voltage Input | Consumption | |||
|---|---|---|---|---|---|---|
| - | 2.8V (Typ.) | - | ||||
| Voltage for Display Signals : | 0≤VIL≤0.2VDD; 0.8VDD≤VIH≤VDD | |||||
| Interface Features : | Position | Type | Interface | |||
| - | Connector | Parallel RGB (1 ch, 6-bit) | ||||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| Panasonic | AXK6F603047YG | 1 pcs | 0.5 mm | 60 pins | ||
| Backlight Features: | Type | Position | Shape | Amount | Life(Hours) | Replacement |
|---|---|---|---|---|---|---|
| WLED | Edge light type | 1 string | 6S1P | - | - | |
| WLED Electrical : | Current Input | Voltage Input | Consumption | |||
| 20/30mA (Typ./Max.) | 18.0/19.2/21.6V (Min./Typ./Max.) | 384mW (Typ.) | ||||
| Interface Features : | Position | Type | WLED Driver | |||
| - | Included in panel signal interface | No | ||||
