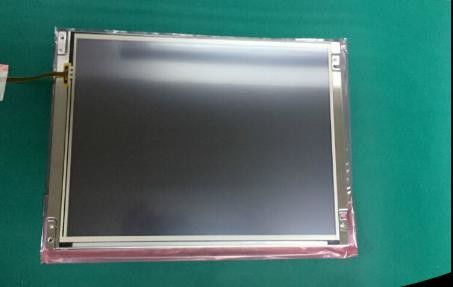

Product Details:
|
MODEL NUMBER: | TM104SBHG03 | BRAND: | TIANMA |
---|---|---|---|
SIZE: | 10.4 Inch | RESOLUTION: | 800(RGB)×600, SVGA, 96PPI |
BRIGHTNESS: | 300 Cd/m² (Typ.) | Viewing Angle: | 70/70/70/60 (Typ.)(CR≥10) |
TEMPERATURE RANGE: | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C | ||
High Light: | QVGA TIANMA LCD Panel,SVGA TIANMA LCD Panel |
Basic Detail : | Manufacturer | Model Name | TM104SBHG03 | |
---|---|---|---|---|
Panel Type | a-Si TFT-LCD , LCM | Another Name | - | |
Panel Size | 10.4 inch | Designed For | ||
Maximum Ratings : | OP Temperature | -20 ~ 70 °C | ST Temperature | -30 ~ 80 °C |
Basic Information : | Luminance | 300 cd/m² (Typ.) | Contrast Ratio | 500 : 1 (Typ.) (Transmissive) |
---|---|---|---|---|
Good View at | 12 o'clock | Response Speed | 10/15 (Typ.)(Tr/Td) (ms) | |
Viewing Angle | 70/70/70/60 (Typ.)(CR≥10) | Operating Mode | TN, Normally White | |
Color Performance : | Chromaticity | Wx:0.315; Wy:0.340 | Support Color | 262K/16.7M (6-bit / 6-bit + Hi-FRC) |
Color Temperature | 6304K | White Uniformity | 1.25/1.43 (Typ./Max.)(9 points) | |
1931 Color Gamut : | NTSC Ratio | 49% | sRGB | 66% coverage |
Adobe RGB | 51% coverage | DCI-P3 | 50% coverage | |
Rec.2020 | 37% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
Pixel Features : | Number of Pixel | 800(RGB)×600 [SVGA] | Arrangement | RGB Vertical Stripe |
---|---|---|---|---|
Dot Pitch(W×H) | 0.088×0.264 mm | Pixel Pitch(W×H) | 0.264×0.264 mm [96PPI] | |
Physical Size : | Active Viewing | 211.2(W)×158.4(H) mm | Overall Dim. | 243(W)×179.4(H) mm |
Bezel Opening | - | Overall Depth | 10.0±0.3 mm | |
Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
Aspect Ratio(W:H) | 4:3 | Shape Style | ||

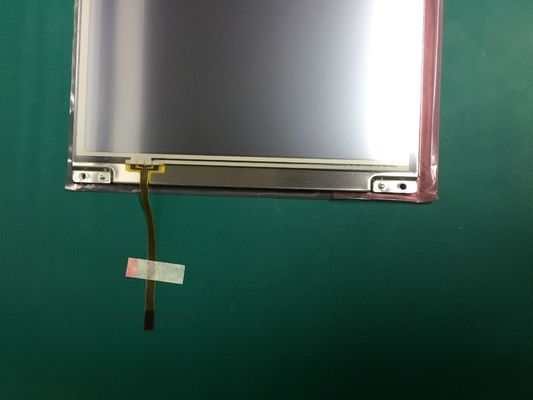

Touchscreen : | TP Controller | Without controller | Control Signal | - |
Touch Points | - | TP Technology | 4-wire Resistive Touch | |
Fixation : | Face mounting holes (2-Φ3.5, 2-R1.75) on left, right bezel | |||
Other Detail : | Mass | 557g (Typ.) | Surface | Antiglare, Hard coating (3H) |
Refresh Rate : | 60Hz |
---|---|
Reverse Scan : | Yes (180°) |
Signal Electrical : | Input Current | 340/380mA (Typ./Max.) | Input Voltage | 3.3V (Typ.) | ||
---|---|---|---|---|---|---|
Consumption | - | Signal Interface | LVDS (1 ch, 6/8-bit) | |||

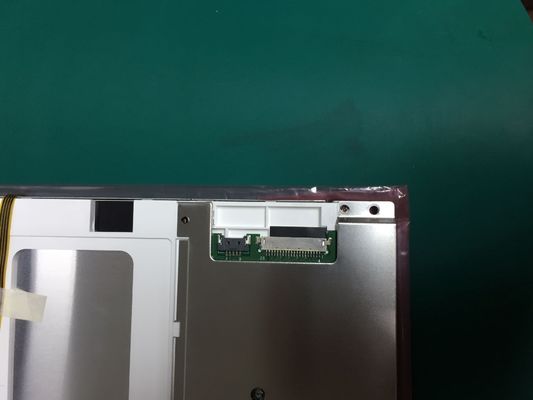

Interface Features : | Position | - | Physical Type | Connector | ||
Signal Interface : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
STARCONN | 107A20-0021RA-G3-R | 1 pcs | 1.0 mm | 20 pins | LVDS-20P1C8B-080C |
