Product Details:
|

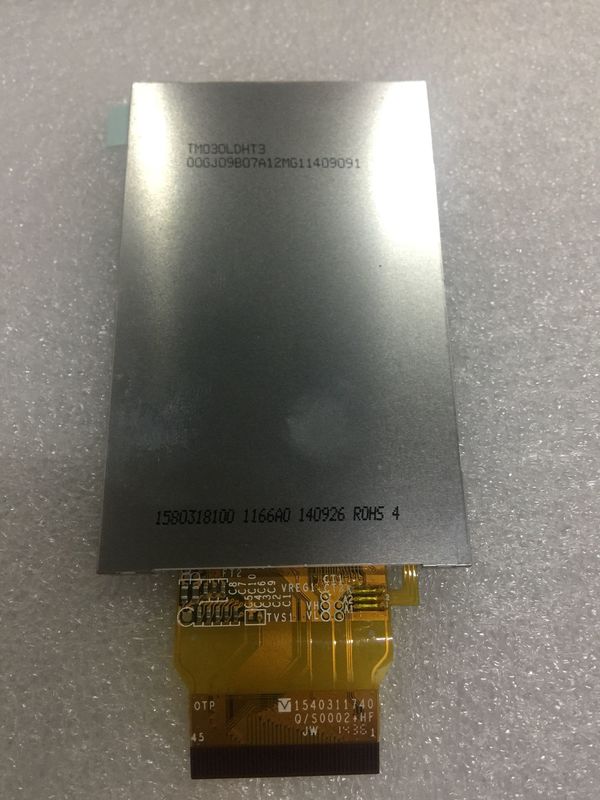

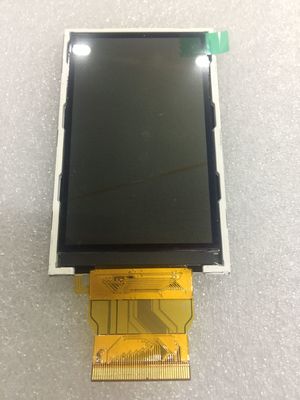

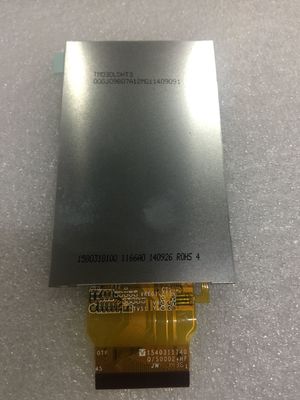

| MODEL NUMBER: | TM030LDHT3 | BRAND: | TIANMA |
|---|---|---|---|
| SIZE: | 3.0"inch | RESOLUTION: | 240(RGB)×400, WQVGA, 156PPI |
| BRIGHTNESS: | 400 Cd/m² (Typ.) | Viewing Angle: | 45/50/70/45 (Typ.)(CR≥10) |
| Environment: | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C | ||
| High Light: | QVGA TIANMA LCD Panel,SVGA TIANMA LCD Panel |
||
| Basic Information : | Brand | Model | Type | Model Alias |
|---|---|---|---|---|
| TM030LDHT3 | a-Si TFT-LCD , LCM | - | ||
| Reliability : | RoHS | Operating Temperature | Storage Temperature | Vibration Resistance |
| -20 ~ 70 °C | -30 ~ 80 °C | - | ||
| Designed For : | ||||
| Specific Features : |
|
|||
| Panel Size : | 3.0 inch | |||
|---|---|---|---|---|
| Pixel Features : | Resolution | Pixel Arrangement | Dot Pitch (W×H) | Pixel Pitch (W×H) |
| 240(RGB)×400, WQVGA | RGB Vertical Stripe | 0.054×0.162 mm | 0.162×0.162 mm [156PPI] | |
| Mechanical Size : | Active Area (W×H) | Bezel Area (W×H) | Outline Dimension (W×H) | Outline Depth |
| 38.88×64.8 mm | 39.88×65.8 mm | 47.28×76.4 mm | 2.4 mm | |
| Outline Features : | Form Style | Aspect Ratio | Orientation | Shape Style |
| Flat Rectangle | 3:5 (W : H) | Portrait type | ||
| Other Features : | Panel Cover | Weight | Surface | |
| - | 17.5g | Hard coating (3H) | ||
| Basic Information : | Brightness | Operating Mode | Contrast Ratio |
|---|---|---|---|
| 260 cd/m² (Typ.) | ECB, Normally White, Transflective | 150:1 (Typ.) (Transmissive) | |
| Viewing Angle(L/R/U/D) | Viewing Direction | Response Speed | |
| 45/50/70/45 (Typ.)(CR≥10) | 12 o'clock | 35 (Typ.)(Tr+Td) (ms) | |
| Dispaly Color : | Color Temperature | Color Amount | White color Chromaticity |
| - | 65K/262K | - | |
| Performance : | 3D Type | Outdoor Visibility | Reflectance |
| - | Sunlight Readable |
| Frame Rate : | 60Hz |
|---|
| Signal Electrical : | Current Input | Voltage Input | Consumption | |||
|---|---|---|---|---|---|---|
| - | 2.8V (Typ.) | - | ||||
| Interface Features : | Position | Type | Interface | |||
| - | FPC | CPU/RGB/SPI | ||||
| Backlight Features: | Type | Position | Shape | Amount | Life(Hours) | Replacement |
|---|---|---|---|---|---|---|
| WLED | Edge light type | - | - | - | - | |
| Interface Features : | Position | Type | WLED Driver | |||
| - | Included in panel signal interface | No | ||||
