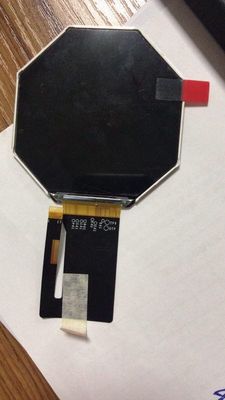

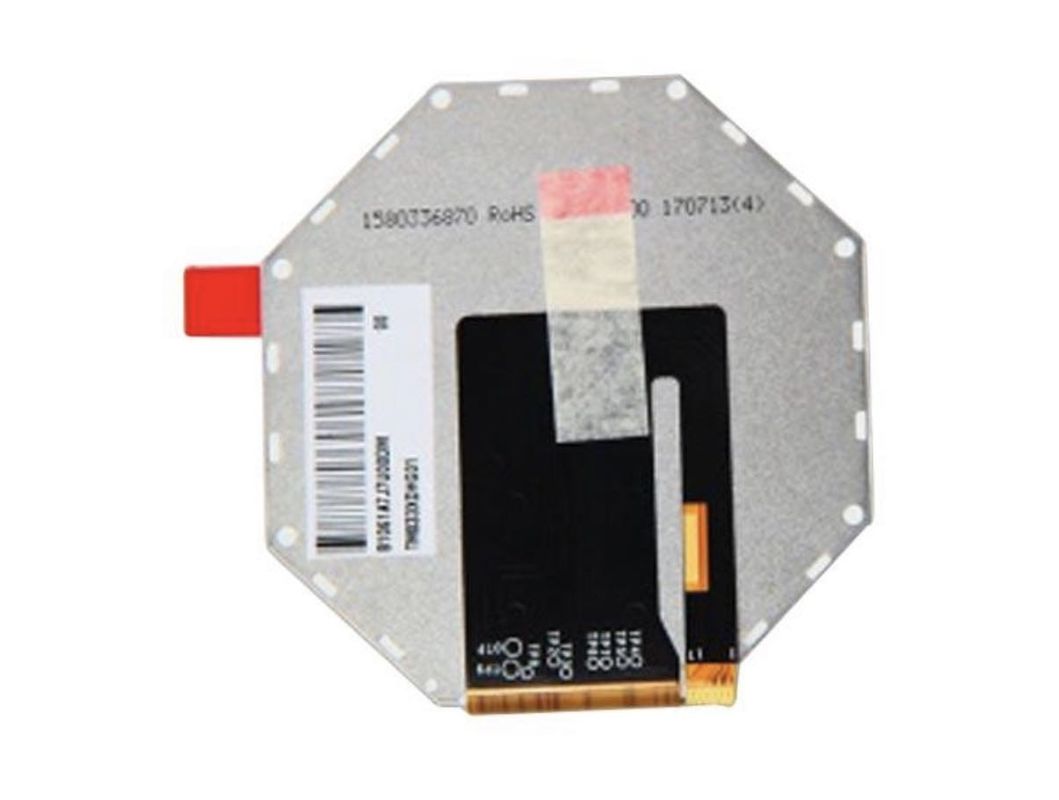

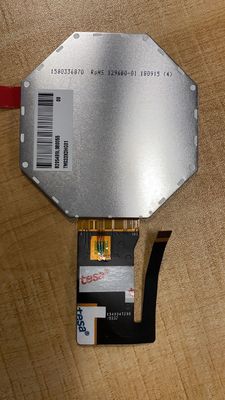

Product Details:
|
| MODEL NUMBER: | TM033XDHG01 | BRAND: | TIANMA |
|---|---|---|---|
| SIZE: | 3.3 Inch | RESOLUTION: | 320(RGB)×320, 135PPI |
| BRIGHTNESS: | 750 Cd/m² (Typ.) | Viewing Angle: | 70/70/60/70 (Typ.)(CR≥10) |
| Environment: | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C | SIGNAL LNTERFACE: | LVDS |
| High Light: | QVGA TIANMA LCD Panel,SVGA TIANMA LCD Panel |
||
| Basic Detail : | Manufacturer | Model Name | TM033XDHG01 | |
|---|---|---|---|---|
| Panel Type | a-Si TFT-LCD , LCM | Another Name | - | |
| Panel Size | 2.4 inch | Designed For |
|
|
| Maximum Ratings : | OP Temperature | -20 ~ 70 °C | ST Temperature | -30 ~ 80 °C |
| Basic Information : | Luminance | 750 cd/m² (Typ.) | Contrast Ratio | 800 : 1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Good View at | 6 o'clock | Response Speed | 20 (Typ.)(Tr+Td) (ms) | |
| Viewing Angle | 70/70/60/70 (Typ.)(CR≥10) | Operating Mode | TN, Normally White, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.285; Wy:0.308 | Support Color | 16.7M (8-bit) |
| Color Temperature | 8728K | White Uniformity | 1.33/1.43 (Typ./Max.)(9 points) | |
| 1931 Color Gamut : | NTSC Ratio | 54% | sRGB | 76% coverage |
| Adobe RGB | 57% coverage | DCI-P3 | 57% coverage | |
| Rec.2020 | 41% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| Dispaly Performance : | Outdoor Visibility | Sunlight Readable | Transmissivity |
| Basic Information : | Luminance | 750 cd/m² (Typ.) | Contrast Ratio | 800 : 1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Good View at | 6 o'clock | Response Speed | 20 (Typ.)(Tr+Td) (ms) | |
| Viewing Angle | 70/70/60/70 (Typ.)(CR≥10) | Operating Mode | TN, Normally White, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.285; Wy:0.308 | Support Color | 16.7M (8-bit) |
| Color Temperature | 8728K | White Uniformity | 1.33/1.43 (Typ./Max.)(9 points) | |
| 1931 Color Gamut : | NTSC Ratio | 54% | sRGB | 76% coverage |
| Adobe RGB | 57% coverage | DCI-P3 | 57% coverage | |
| Rec.2020 | 41% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| Dispaly Performance : | Outdoor Visibility | Sunlight Readable | Transmissivity |
| Reverse Scan : | No |
|---|---|
| Driver IC : | COG Built-in ST7796SI |
| Signal Electrical : | Input Current | - | Input Voltage | 2.8/2.8V (Typ.)(VDD/VDDI) | ||
|---|---|---|---|---|---|---|
| Consumption | 44/54mW (Typ./Max.) | Signal Interface | MIPI (1 data lane) | |||
| Interface Features : | Position | - | Physical Type | FPC | ||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| 1 pcs | 0.3 mm | 17 pins | ||||
whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 60(W)×60(H) mm, outline size of 66.2(W)×69.3(H)×2.81(D) mm, with surface treament of Hard coating, net weight of 22.5±10g. As a TN, Normally White, Transmissive LCM product, TM033XDHG01 can provides 750 cd/m² display brightness 800:1 transimissive contrast ratio, 70/70/60/70 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 20 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 54% (NTSC). This product adopted 6S1P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 20K hours, external backlight driver is additionally needed. TM033XDHG01 utilizes MIPI (1 data lane) as it's signal inputting systerm,
